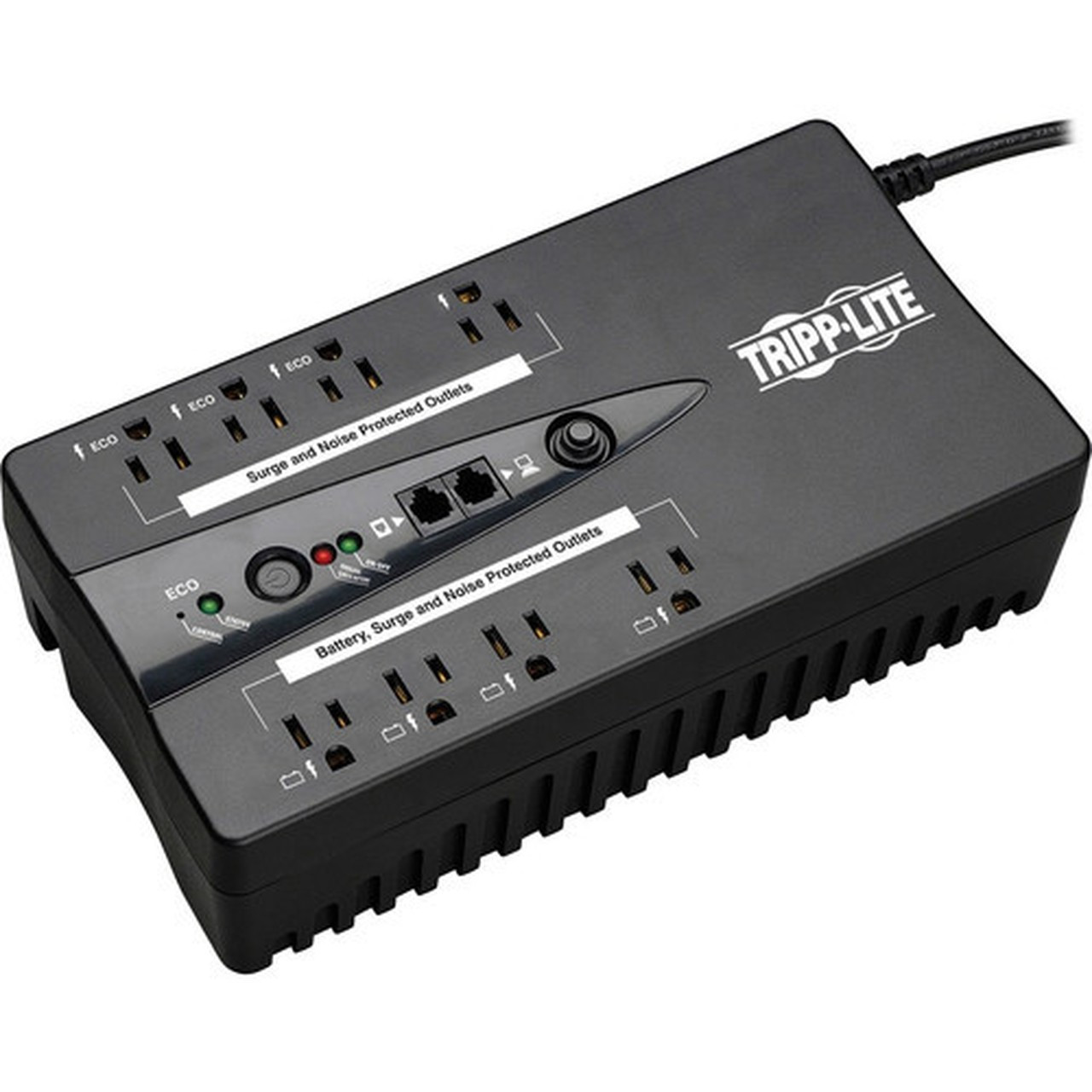

Tripp Lite ECO550UPS 550VA Desktop UPS - Desktop, Wall Mountable - 15 Hour Recharge - 1.20 Minute Stand-by - 120 V AC Input - 110 V V (ECO550UPS)

Marketing Information:

Energy-Saving 550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO550UPS should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

10 NEMA 5-15R Outlets Protect Your Connected Components

Five 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.

ENERGY STAR-Certified to Help You Save Money and Protect the Environment

By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features three switched ECO outlets (two surge-only, one surge- and battery-protected) that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don't need to be operational all the time.

316 Joules Fight Back Against Unexpected Power Surges

A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.

HID-Compliant USB Port Allows for Automatic Saves and Shutdowns

This USB port connects the ECO550UPS to a computer running free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.

Combats Electromagnetic Interference That Can Harm Equipment

Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The ECO550UPS incorporates technology that filters out disruptive line noise so that it won't affect your equipment.

Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7

The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery, overload or fault condition. A front-panel green LED indicates operating mode, ECO mode and fault status.

More from the Manufacturer

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 10 x NEMA 5-15R

Number of Surge-only Outlets: 5

Dataline Protection: RJ-11

Overload Protection: Yes

Cord Length: 6 ft

Transfer Time: 6 ms

Phase: Single Phase

Application/Usage: Retail,Hospital,Computer Peripheral

Load Capacity (VA): 550 VA

Load Capacity (Watt): 300 W

Input Voltage: 120 V AC

Output Voltage: 110 V AC,115 V AC,120 V AC

Output Frequency: 60 Hz

Waveform Type: Pure Sine Wave

Surge Energy Rating: 316 J

Alarm: Battery Fault,Overload,Low Battery

Status Indicators:

2 LED Indicator:

• Line power
• Battery power status

Main Power Switch Controls :

• ON
• OFF
• SELF-TEST
• ALARM CANCEL
• Second switch enables "ECO" outlet switching

USB: Yes

USB (HID Compliant) Port: Yes

DC System Voltage: 12 V DC

Battery Characteristics: Valve-regulated

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 1.20 Minute

Backup/Run Time (Half Load): 5 Minute

Battery Life: 6 Year

Typical Battery Recharge Time: 6.50 Hour

Replaceable Battery: Yes

Maximum Storage Elevation: 6561 ft (1999792.80 mm)

Storage Temperature: 5°F (-15°C) - 133°F (56.1°C)

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 104°F (40°C)

Sound Emission: 40 dB

Thermal Dissipation: 4 BTU/h

Product Color: Black

Height: 4.13" (105 mm)

Width: 4.33" (110 mm)

Depth: 7.28" (185 mm)

Form Factor: Ultra-compact Desktop/Tower/Wall Mount

Weight (Approximate): 2.36 kg

Package Contents:

Software Included: PowerAlert software available via free download

Energy Star: Yes

Country of Origin: Vietnam

Environmentally Friendly: Yes

Energy Efficiency Certification: ENERGY STAR 2.0

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year

Additional Warranty Information:

• 2 year

• 100,000 connected equipment guarantee
