Tripp Lite by Eaton PDUMH20HV Metered PDU - 10 Outlets - 2 C19 - 8 C13 - 230V AC Input - 1U Horizontal Rackmount - Overload Protection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

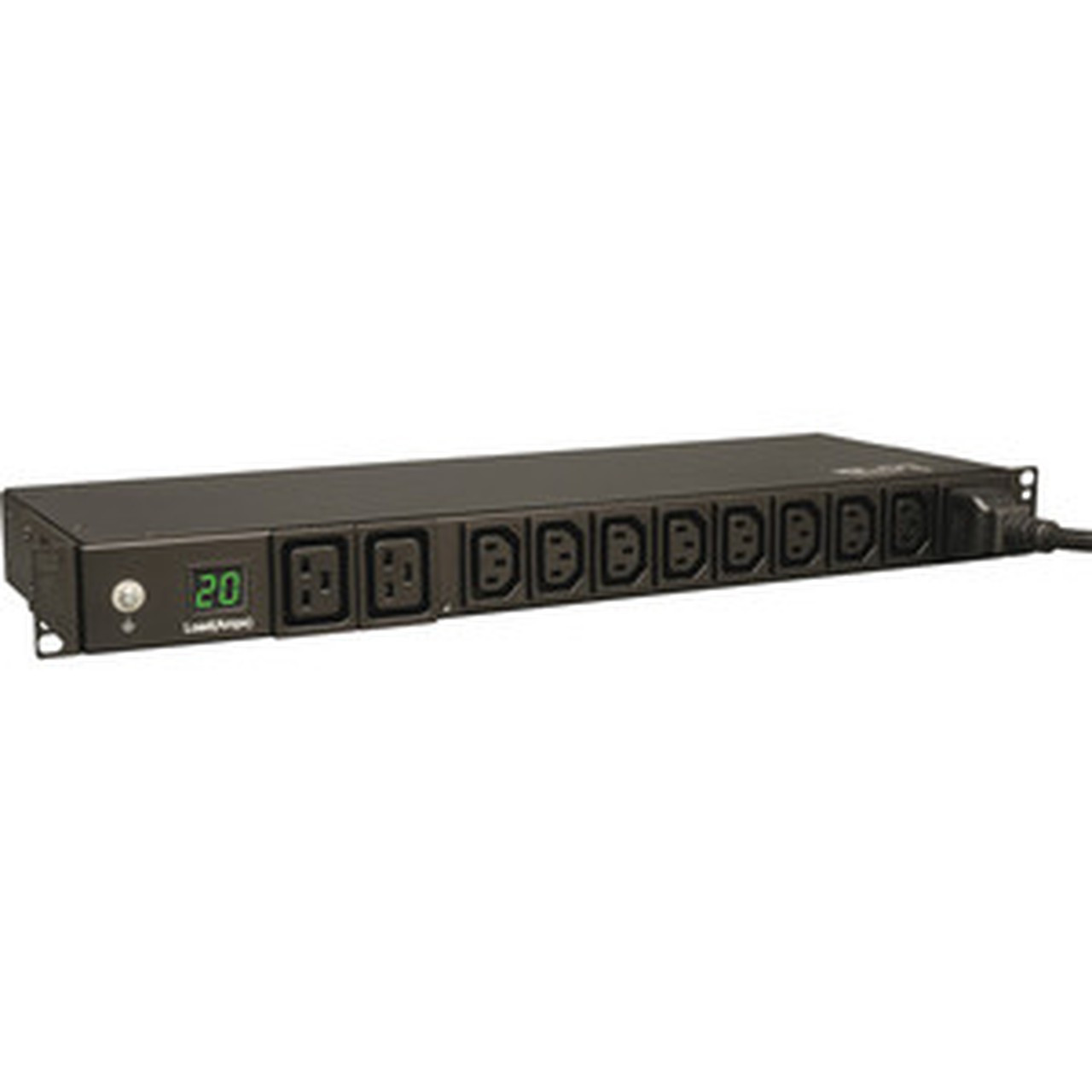

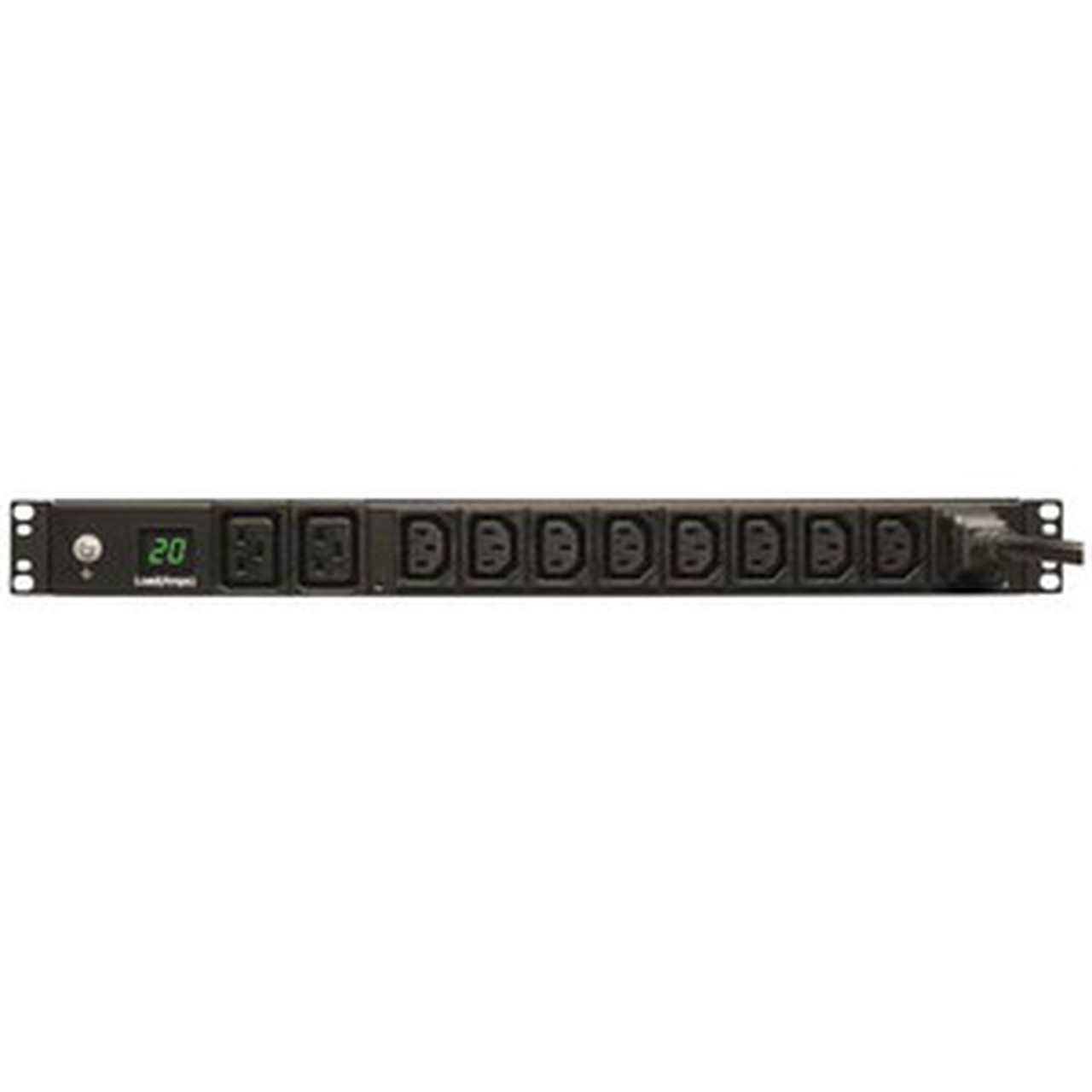

This metered PDU features a C20 input connector with an integrated NEMA L6-20P plug adapter, connected via a 12-foot (3.7-meter) line cord for flexible placement. The outlet configuration includes two high-power IEC C19 outlets and eight standard IEC C13 outlets, providing a total of 10 ports for distributing power to servers, networking gear, and other rack-mounted devices.
Built-in overload protection safeguards connected equipment by preventing excessive current draw, while the digital display shows real-time amperage to help administrators monitor load levels. The unit's robust construction supports reliable operation in data center and server room environments, with a compact footprint that fits seamlessly into standard 19-inch racks.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUMH20HV combines metered monitoring with robust power distribution in a space-efficient 1U design. Its digital display provides immediate visibility into power consumption, helping IT teams optimize rack power usage and prevent circuit overloads before they cause downtime.
Precise Power Monitoring
The integrated digital current meter displays real-time amperage, enabling accurate load monitoring and capacity planning without external monitoring tools.
- Real-time amperage display
- Proactive load management
- No additional monitoring hardware required
Flexible Connectivity
With two C19 and eight C13 outlets, this PDU supports both high-power equipment like servers and standard devices like switches and routers from a single unit.
- Mixed outlet types
- Supports varied equipment
- Reduces need for multiple PDUs
Secure Installation

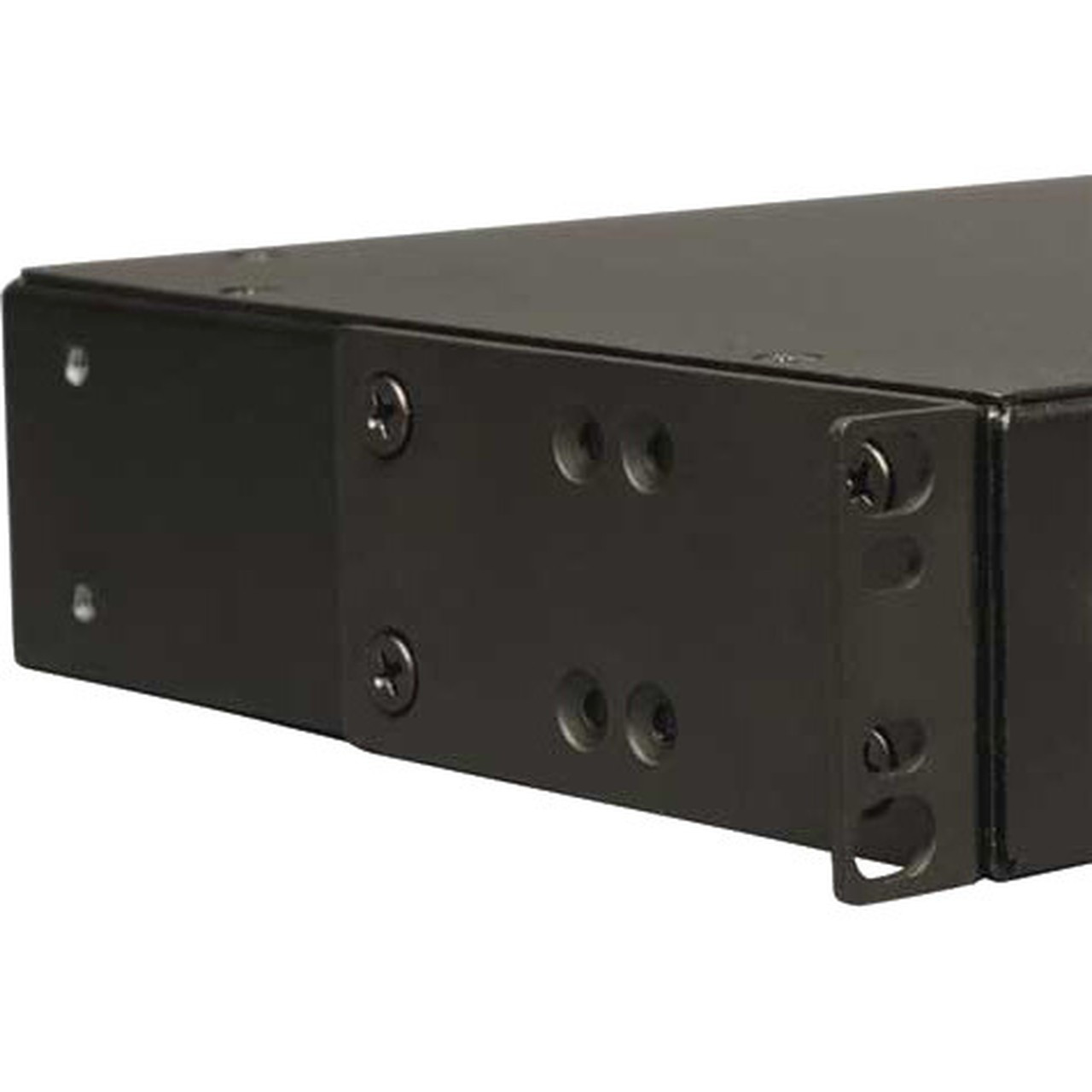

Included rackmount brackets and cord retention brackets ensure the PDU stays firmly mounted and power cords remain securely connected, even in high-vibration environments.
- Complete mounting hardware
- Cord retention prevents disconnection
- Stable in rack environments
Deployment / Use Cases
This metered PDU is ideal for server racks, network closets, and data center cabinets where power monitoring and distribution are critical. Its 1U horizontal design makes it suitable for standard 19-inch racks with limited vertical space, while the mixed outlet configuration supports diverse equipment types commonly found in IT environments.
The unit excels in environments requiring precise power management, such as colocation facilities, enterprise server rooms, and telecommunications installations. IT administrators can use the digital meter to balance loads across circuits, plan for equipment additions, and verify power usage for billing or efficiency reporting.
Data Center Power Distribution
Distribute and monitor power to multiple servers and networking devices in standard server racks, with real-time visibility into power consumption per rack.
- Rack-level power monitoring
- Supports mixed equipment
- Space-efficient 1U design
Network Closet Management
Provide reliable power to switches, routers, and other networking equipment while monitoring total load to prevent circuit overloads in distributed network locations.
- Prevents circuit overloads
- Mixed outlet support
- Compact footprint
Physical Profile
The PDUMH20HV features a compact 1U form factor measuring 1.75 inches (44.45 mm) in height, 17.50 inches (444.50 mm) in width, and 6.50 inches (165.10 mm) in depth. This horizontal rackmount design occupies minimal space while providing full front-to-back accessibility in standard server cabinets. The unit weighs approximately 6.80 pounds (3084.43 grams), making it easy to install and reposition as needed.
- Width
- 17.50" (444.50 mm)
- Depth
- 6.50" (165.10 mm)
- Height
- 1U
- Weight
- 6.80 lb (3084.43 g)

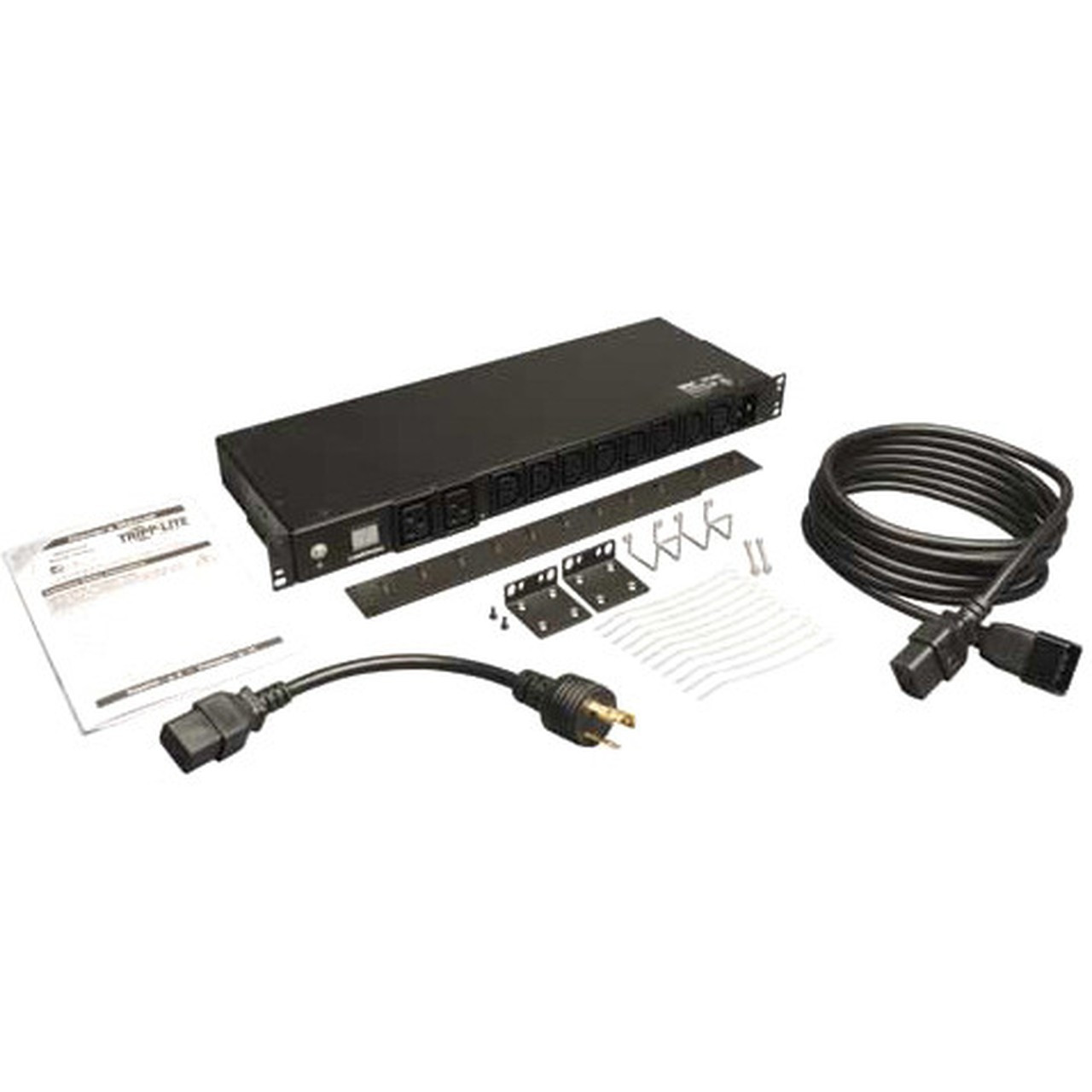

What's in the Box
The package includes everything needed for immediate installation and operation.
Package contents include Metered PDUMH20HV 10-Outlets PDU Rackmount Brackets Cord Retention Brackets, Metered PDUMH20HV 10-Outlets PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Metered single-phase PDU with digital current meter for real-time power monitoring
- 10 total outlets: 2 IEC C19 and 8 IEC C13 connectors for mixed equipment support
- 230V AC input with 200-240V range and 208/230/240V output voltage options
- 1U horizontal rackmount design for space-efficient installation in standard server racks

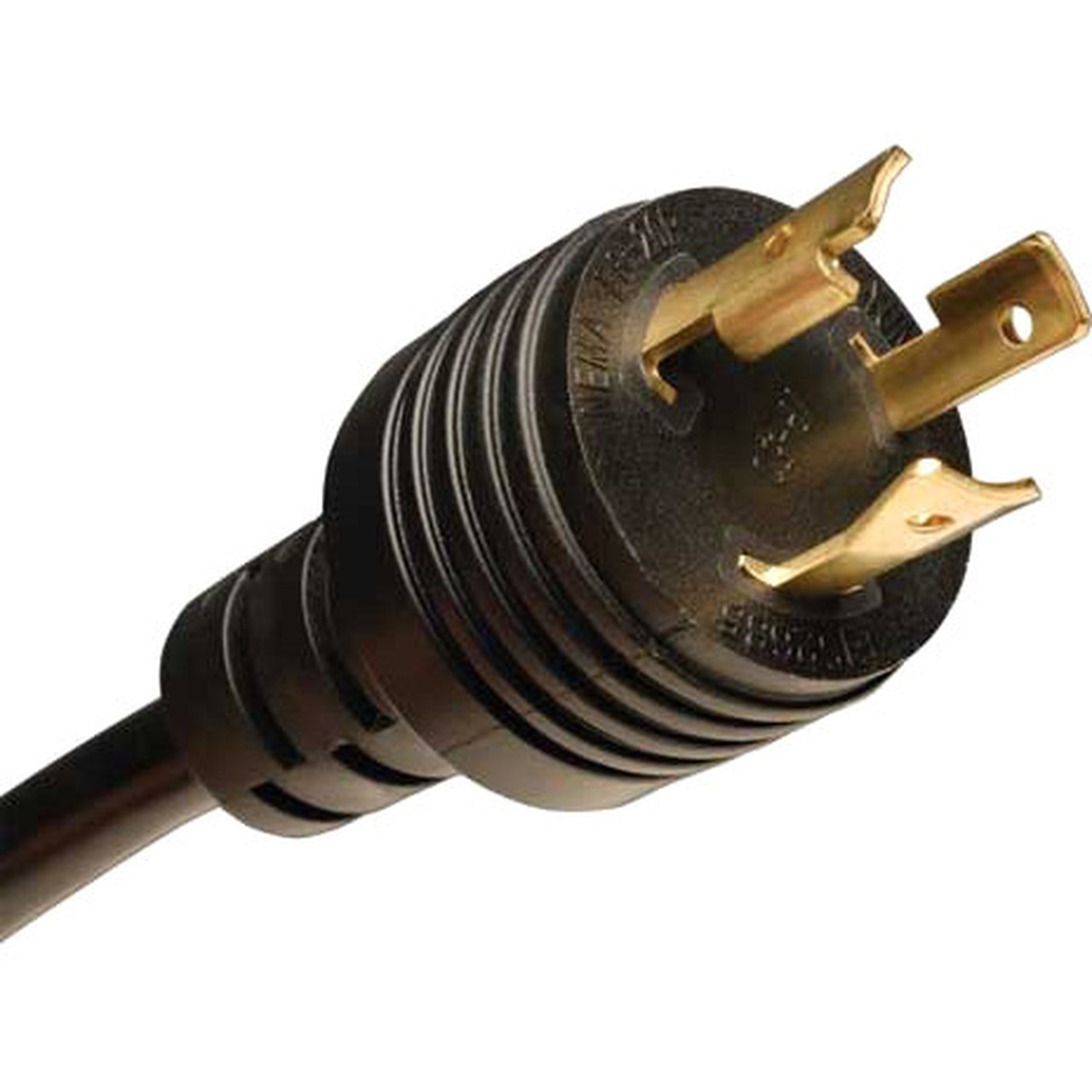

- C20 input with integrated NEMA L6-20P plug adapter and 12-foot (3.7m) line cord
- Overload protection safeguards connected equipment from excessive current draw
- Includes rackmount brackets and cord retention brackets for secure installation
- RoHS compliant and backed by a 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH20HV |
| Brand Name | Tripp Lite series |
| Product Series | Metered |
| Product Model | PDUMH20HV |
| Product Name | Metered PDUMH20HV 10-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20,NEMA L6-20P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,8 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC,230 V AC,240 V AC |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 6.50" (165.10 mm) |
| Weight (Approximate) | 6.80 lb (3084.43 g) |
| Miscellaneous | |
| Package Contents | Metered PDUMH20HV 10-Outlets PDU Rackmount Brackets Cord Retention Brackets |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of equipment can I connect to this PDU?
The PDUMH20HV supports a variety of rack-mounted equipment with its mixed outlet configuration. The two IEC C19 outlets are designed for high-power devices like servers and storage arrays, while the eight IEC C13 outlets accommodate standard equipment such as switches, routers, and network appliances. This combination allows you to power diverse IT infrastructure from a single power distribution unit.
How does the digital current meter help with power management?
The integrated digital current meter displays real-time amperage draw, enabling you to monitor power consumption at the rack level. This visibility helps prevent circuit overloads by showing current usage before adding new equipment. It also supports capacity planning by providing data on power trends and identifying underutilized or overloaded circuits in your infrastructure.
What input voltage does this PDU require?
This PDU is designed for 230V AC input with an operating range of 200-240V AC. It includes a C20 input connector with an integrated NEMA L6-20P plug adapter on a 12-foot (3.7-meter) line cord. The unit provides output voltages of 208V, 230V, and 240V AC to accommodate equipment with different voltage requirements in various regional power configurations.
Is this PDU suitable for rack installation?
Yes, the PDUMH20HV is specifically designed for rack installation with a 1U horizontal form factor. It includes rackmount brackets for secure mounting in standard 19-inch server racks. The horizontal orientation provides easy access to all outlets from the front of the rack, while the compact dimensions maximize usable space in cabinet environments.
What protection features does this PDU offer?
This PDU includes overload protection that prevents excessive current draw from damaging connected equipment. The protection mechanism safeguards against power surges and overload conditions that could cause equipment failure or downtime. Combined with the digital current meter for monitoring, this provides a comprehensive approach to power protection in rack environments.
What is included with the PDU for installation?
The package includes the Metered PDUMH20HV 10-Outlets PDU unit, rackmount brackets for securing it to standard 19-inch racks, and cord retention brackets to keep power cords securely connected. These components provide everything needed for immediate installation in server racks, network closets, or data center cabinets without requiring additional hardware.
