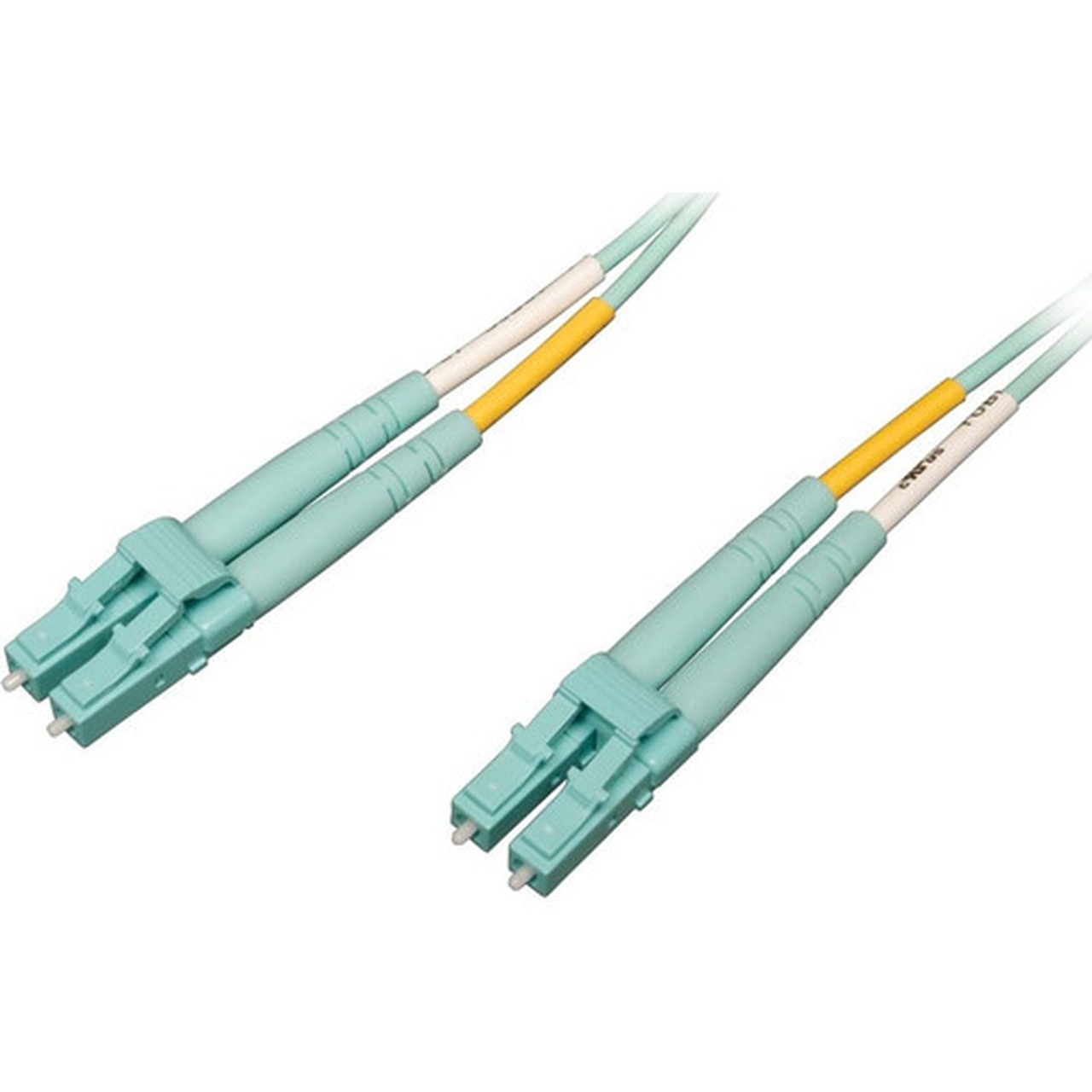

Tripp Lite by Eaton N820-02M-OM4 Tripp Lite Fiber Optic Duplex Patch Cable - 6. 6 ft (2. 01 m) LC to LC OM4 Multi-mode 50/125 µm LSZH Aqua
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable utilizes OM4 multi-mode fiber technology, which is backward compatible with existing 50/125 fiber infrastructure. It achieves a maximum 40/100Gb distance of 300 meters at 850nm, enabling efficient data transfer over medium-range network segments without signal degradation.
The cable is constructed with a LSZH jacket that reduces smoke and toxic halogen emissions in case of fire, enhancing safety in enclosed spaces. Its aqua color helps with quick identification and organization in cable management systems, while the duplex LC connectors ensure secure and stable connections for network devices.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Tripp Lite N820-02M-OM4 patch cable offers several advantages for network deployments, starting with its OM4 rating that ensures compatibility with high-speed Ethernet standards. This cable delivers reliable performance for data-intensive applications while maintaining backward compatibility with existing fiber setups.
High-Speed Connectivity
Supports 40/100-Gig Ethernet applications with a maximum distance of 300 meters at 850nm, enabling fast data transfer for enterprise networks.
- OM4 multi-mode fiber
- Backward compatible with 50/125 fiber
- Optimized for 40/100Gb Ethernet
Safety and Durability
Features a low-smoke, zero-halogen (LSZH) jacket that minimizes toxic emissions and smoke in fire scenarios, enhancing installation safety.
- LSZH jacket material
- RoHS compliant
- Aqua color for easy identification
Reliable Connectors
Equipped with duplex LC connectors on both ends, providing secure and stable connections for network devices without signal loss.
- 2 x LC Network - Male per end
- Duplex design for bidirectional data
- Standard LC interface compatibility
Deployment / Use Cases
This fiber optic patch cable is ideal for connecting network switches, routers, servers, and storage devices in data centers, server rooms, and enterprise networking environments. Its 6.6 ft length makes it suitable for short to medium-distance connections within racks or between adjacent equipment.
Common use cases include linking fiber optic transceivers in network switches, establishing connections between network interface cards and patch panels, and supporting high-speed backbone links in office buildings. The cable's OM4 rating and LC connectors make it a practical choice for upgrading existing fiber infrastructure to support faster Ethernet standards.
Data Center Connections
Use for connecting network switches and servers in data center racks, where high-speed fiber links are essential for data processing and storage.
Enterprise Network Upgrades
Deploy in office buildings to upgrade network backbones to 40/100-Gig Ethernet, leveraging existing 50/125 fiber infrastructure with OM4 compatibility.
Highlights
- OM4-rated multi-mode fiber optic patch cable for 40/100-Gig Ethernet applications
- 6.6 ft (2.01 m) length with duplex LC connectors on both ends
- Backward compatible with existing 50/125 fiber infrastructure
- Maximum 40/100Gb distance of 300 meters at 850nm wavelength
- Low-smoke, zero-halogen (LSZH) aqua jacket for enhanced safety
- RoHS compliant and environmentally friendly construction
- Duplex design with 2 x LC Network - Male connectors per end
- Ideal for data center, server room, and enterprise network deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N820-02M-OM4 |
| Brand Name | Tripp Lite series |
| Product Model | N820-02M-OM4 |
| Product Name | N820-02M-OM4 Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 6.6 ft (2.01 m) |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the cable length of the Tripp Lite N820-02M-OM4 patch cable?
The cable is 6.6 ft (2.01 m) long, making it suitable for short to medium-distance connections within network racks or between adjacent equipment in data centers and server rooms.
What type of connectors does this fiber optic patch cable have?
It features duplex LC connectors on both ends, with 2 x LC Network - Male connectors per end. This design provides secure bidirectional connections for network devices using standard LC interfaces.
Is this cable compatible with existing 50/125 fiber infrastructure?
Yes, the OM4-rated multi-mode fiber is backward compatible with existing 50/125 fiber setups. This allows for seamless upgrades to higher-speed Ethernet standards without replacing entire fiber runs.
What does the LSZH jacket on this cable provide?
The low-smoke, zero-halogen (LSZH) jacket minimizes toxic emissions and smoke in fire scenarios, enhancing safety in enclosed installations like data centers. It also offers durability and flexibility for cable management.
What Ethernet applications is this patch cable designed for?
It is designed for 40/100-Gig Ethernet applications, with a maximum distance of 300 meters at 850nm for 40/100Gb speeds. This makes it suitable for high-speed data transfer in enterprise networks and data centers.
What is the warranty for this Tripp Lite fiber optic patch cable?
The cable comes with a lifetime limited warranty, providing long-term assurance of its quality and performance in network deployments.
