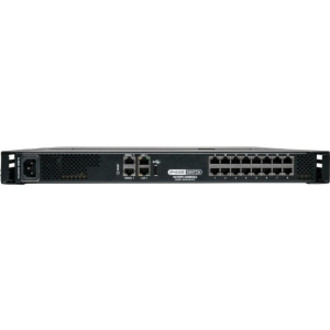

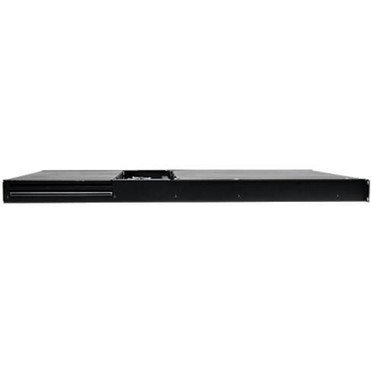

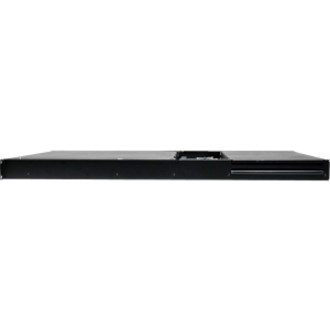

Tripp Lite B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch - 3 Computer(s) - 19" LCD - 1366 x 768 - 2 x - 1 (B070-016-19-IP2)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Tripp Lite's B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com
KVM Switch: YesKVM Technology: DigitalNumber of Computers Supported: 16Daisy Chain: YesDevice Type: LCD Rack ConsoleScreen Size: 19"Screen Mode: WXGAScreen Resolution: 1366 x 768Keyboard: YesPointing Device Type: TouchPadNetwork (RJ-45): YesPS/2 Port: YesNumber of Network (RJ-45) Ports: 1Number of PS/2 Ports: 2Input Voltage: 240 V ACColor Family: BlackProduct Color: BlackProduct Material: SteelRack Height: 1UHeight: 1.70" (43.18 mm)Width: 19" (482.60 mm)Depth: 26.80" (680.72 mm)Weight (Approximate): 17.01 kgPackage Contents:[custom-specifications]
