Tripp Lite PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet - 13 x NEMA 5-20R - 20 - 1U 19" Rack-mountable (PDU1220T)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator

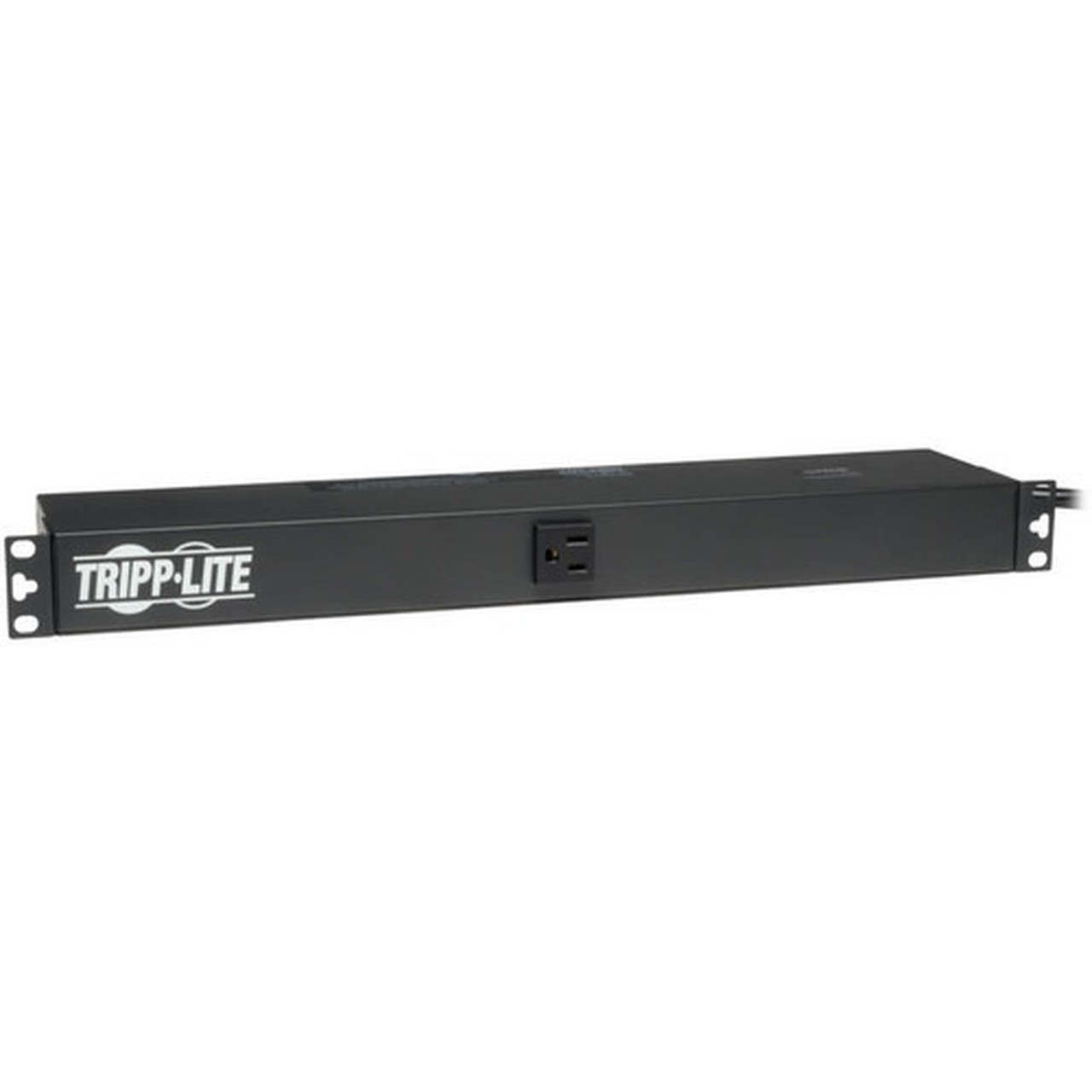

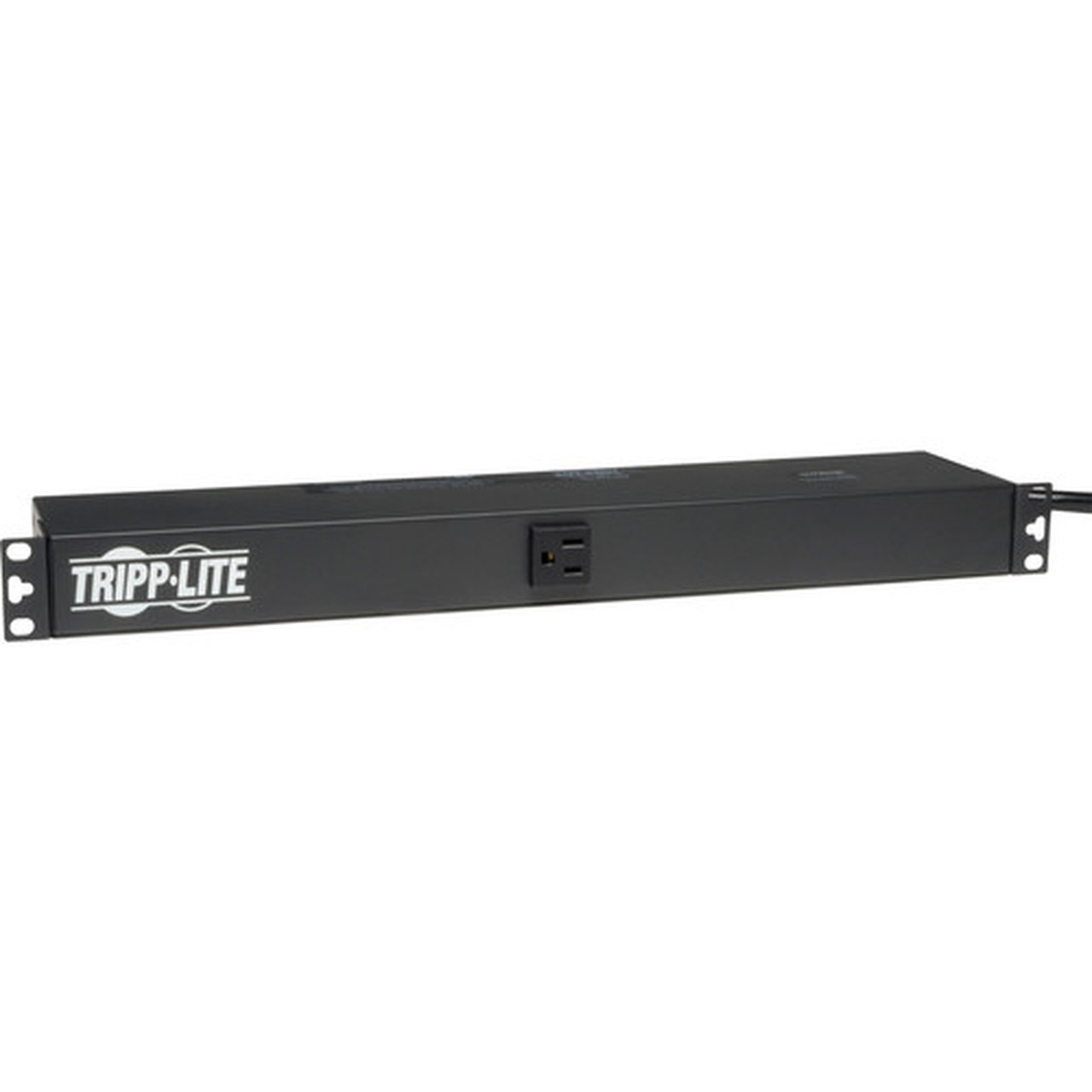

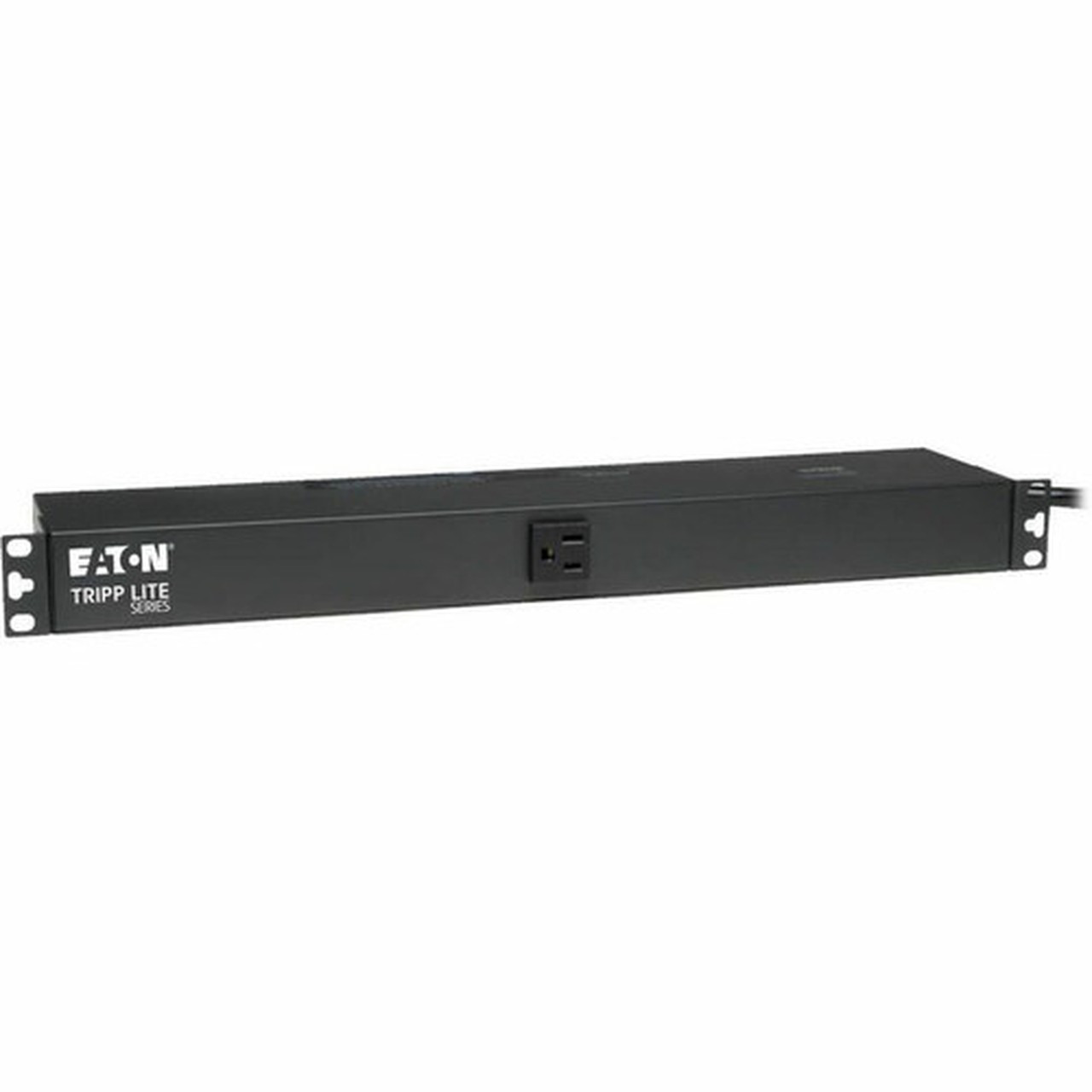

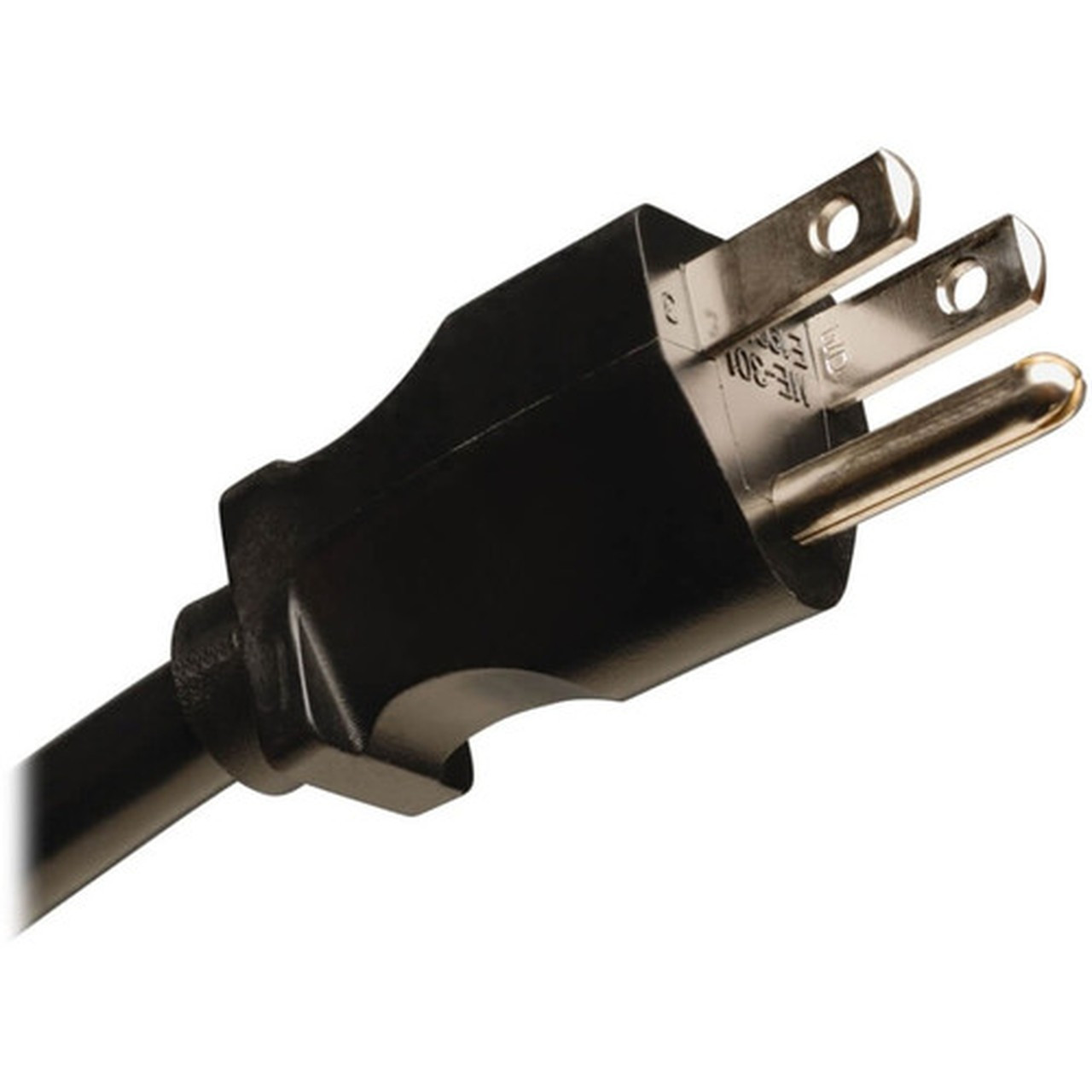

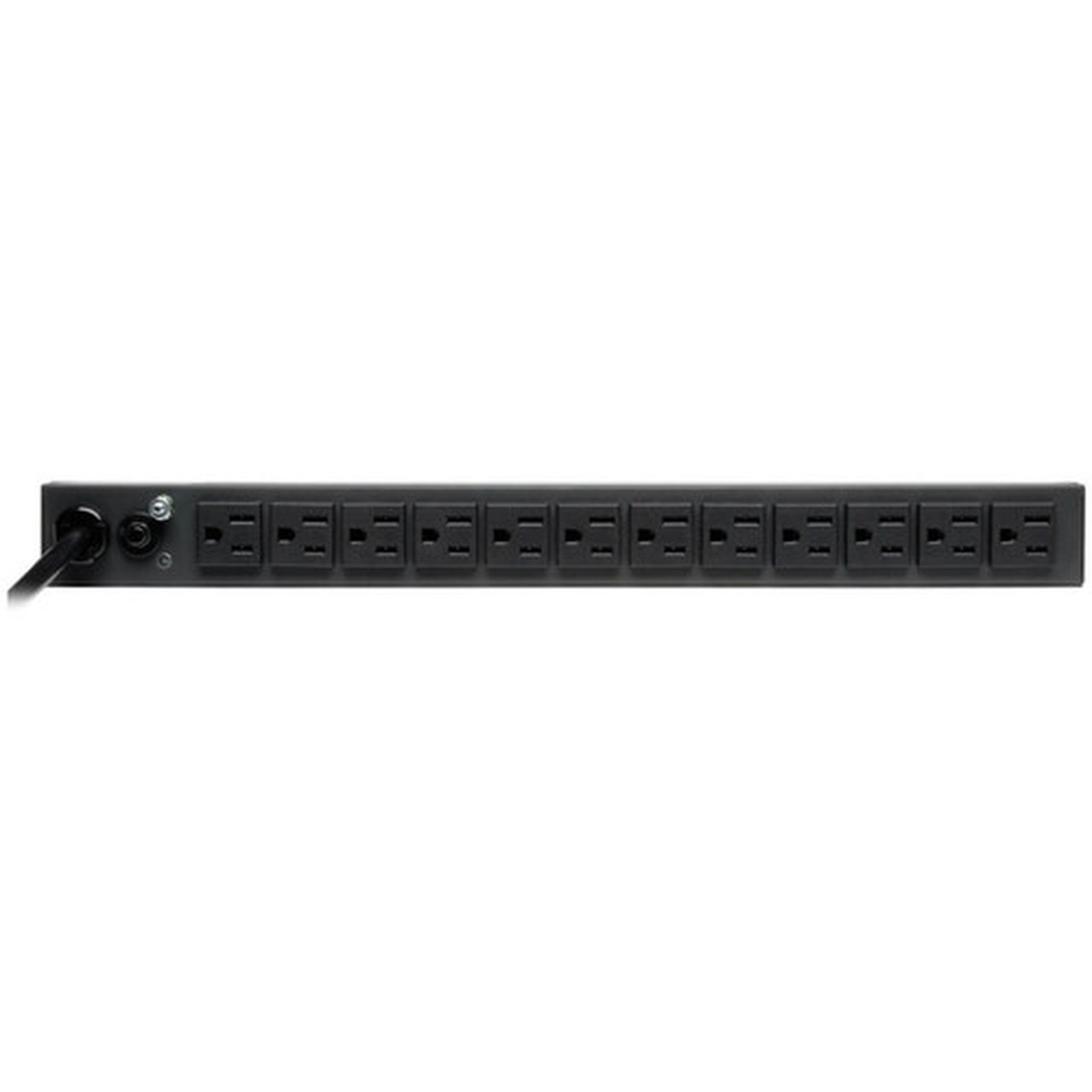

Tripp Lite's PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.PLUG/OUTLETS - Input: NEMA 5-15P/Output: 13 NEMA5-15R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more
PDU Type: BasicPhase: Single PhasePlug/Connector Type: NEMA 5-15PPlug/Connector Detail: 1 x NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 13 x NEMA 5-15RInput Voltage: 120 V ACOutput Voltage: 120 V ACPower Rating (Watt): 1.80 kWInput Current: 15 ANetwork (RJ-45): YesMounting Orientation: HorizontalMount Type: Rack-mountableRack Height: 1UHeight: 2" (50.80 mm)Width: 20" (508 mm)Depth: 4.50" (114.30 mm)Weight (Approximate): 2.22 kgPackage Contents:[custom-specifications]
