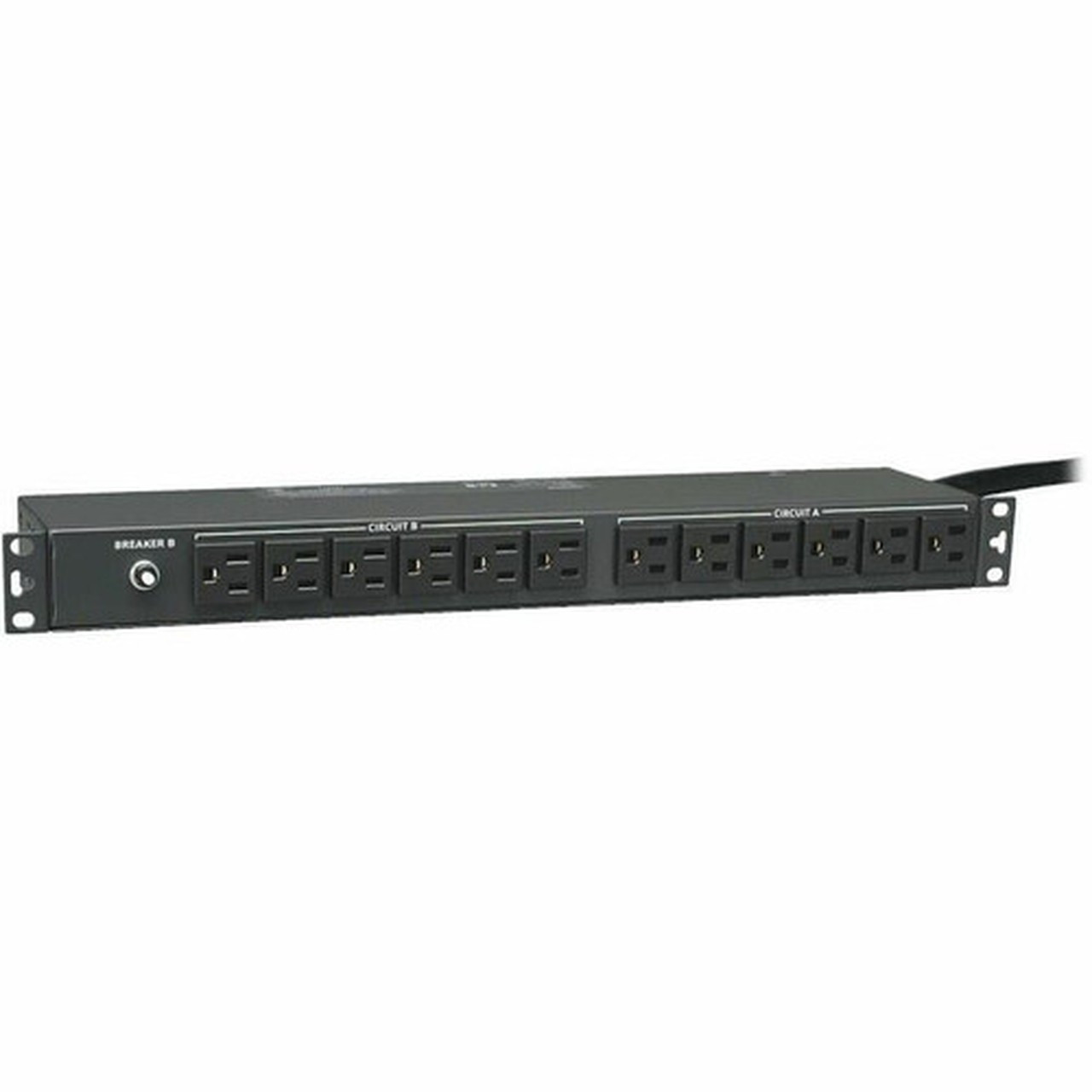

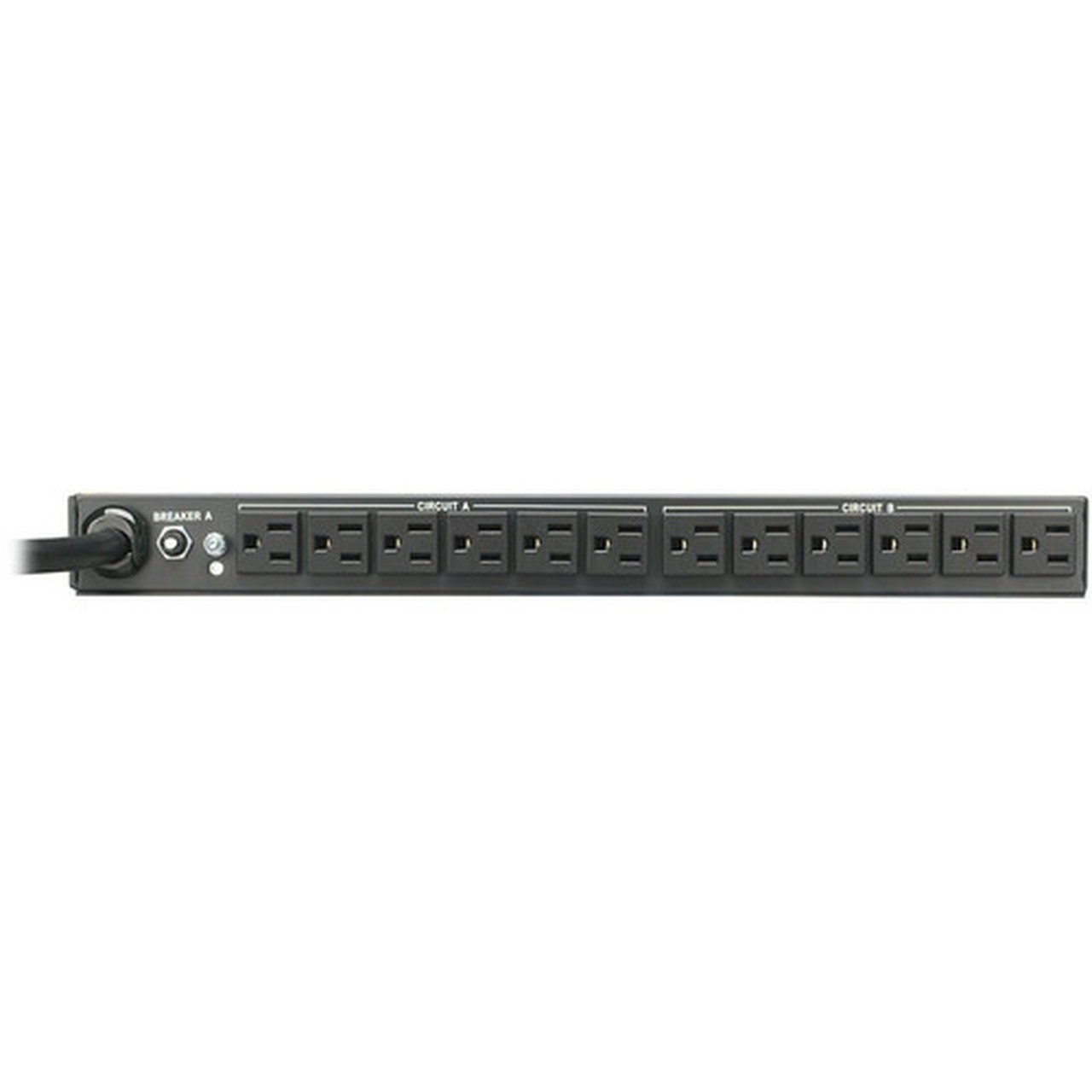

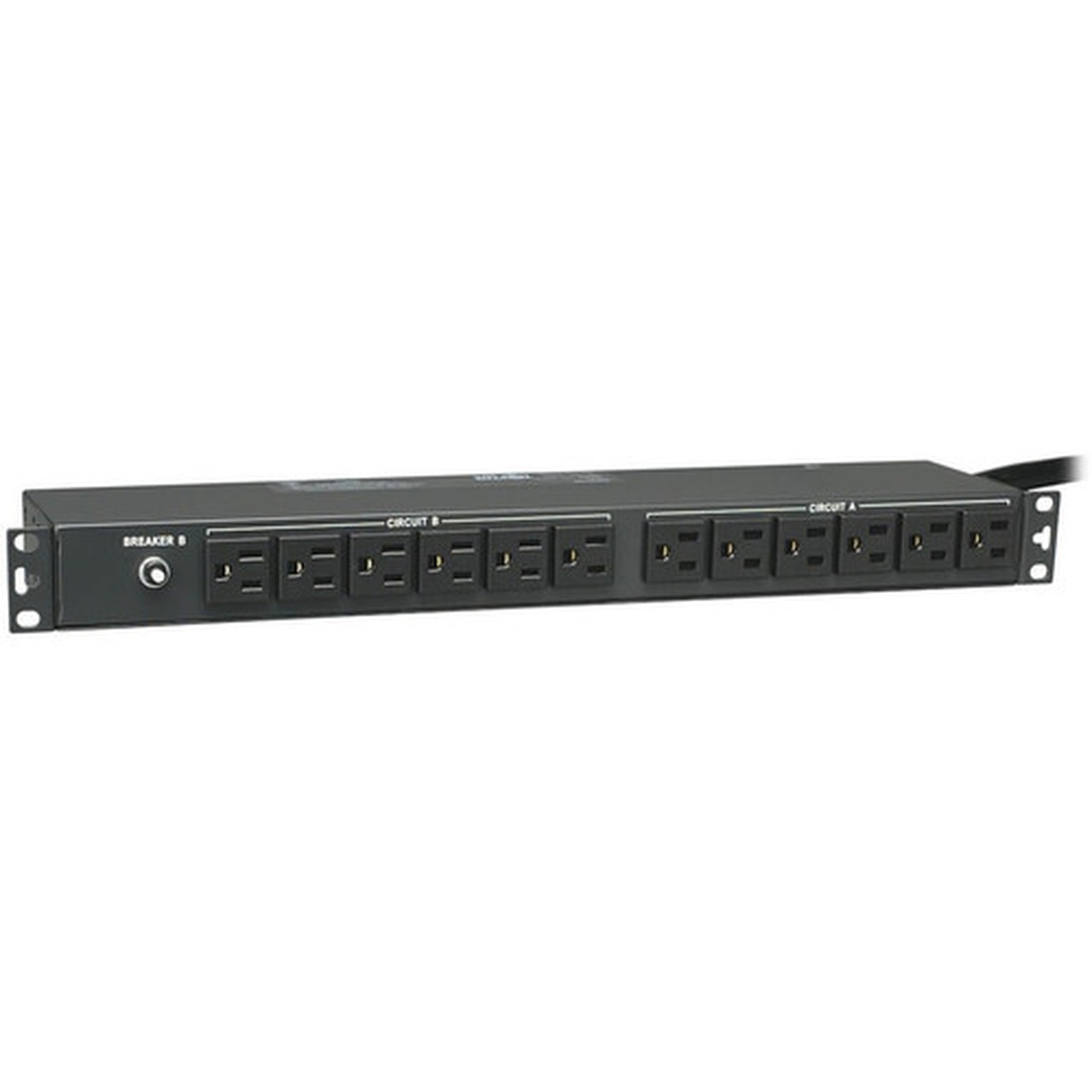

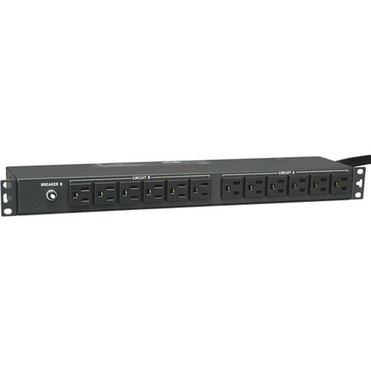

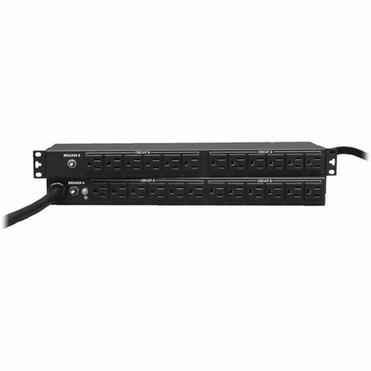

Tripp Lite PDU2430 PDU Basic 120V 30A 24 Outlet - 24 x NEMA 5-15R - 24 - 1U 19" Rack-mountable (PDU2430)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- PDU2430 2.9kW Single-Phase 120V Basic PDU
- Mounting Hardware
- Owner's Manual
Marketing Information:
The PDU2430 2.9kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU2430 features 24 total NEMA 5-15R outlets with 12 in front and 12 in the rear. The NEMA L5-30P input plug with long 15-foot(4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 15A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory(sold separately), you can adapt the PDU2430 for vertical 0U rack-mounting.
PDU Type: Basic
Plug/Connector Type: NEMA L5-30P
Plug/Connector Detail: 1 x NEMA L5-30P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 24 x NEMA 5-15R
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Mount Type: Rack-mountable
Rack Height: 1U
Package Contents:
Country of Origin: China
Limited Warranty: 5 Year Lifetime
- Basic single phase 30A 120V PDU
- 1U horizontal rackmount installation
- NEMA L5-30P input; 15 ft. / 4.5m line cord
- 24 5-15R outlets (12 front / 12 rear)
[custom-specifications]
Specifications | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | PDU2430 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | PDU2430 |
Product Name | PDU2430 2.9kW Single-Phase 120V Basic PDU |
Product Type | PDU |
Technical Information | |
PDU Type | Basic |
Plug/Connector Type | NEMA L5-30P |
Plug/Connector Detail | 1 x NEMA L5-30P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 24 x NEMA 5-15R |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Physical Characteristics | |
Mount Type | Rack-mountable |
Rack Height | 1U |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Warranty | |
Limited Warranty | 5 Year Lifetime |
