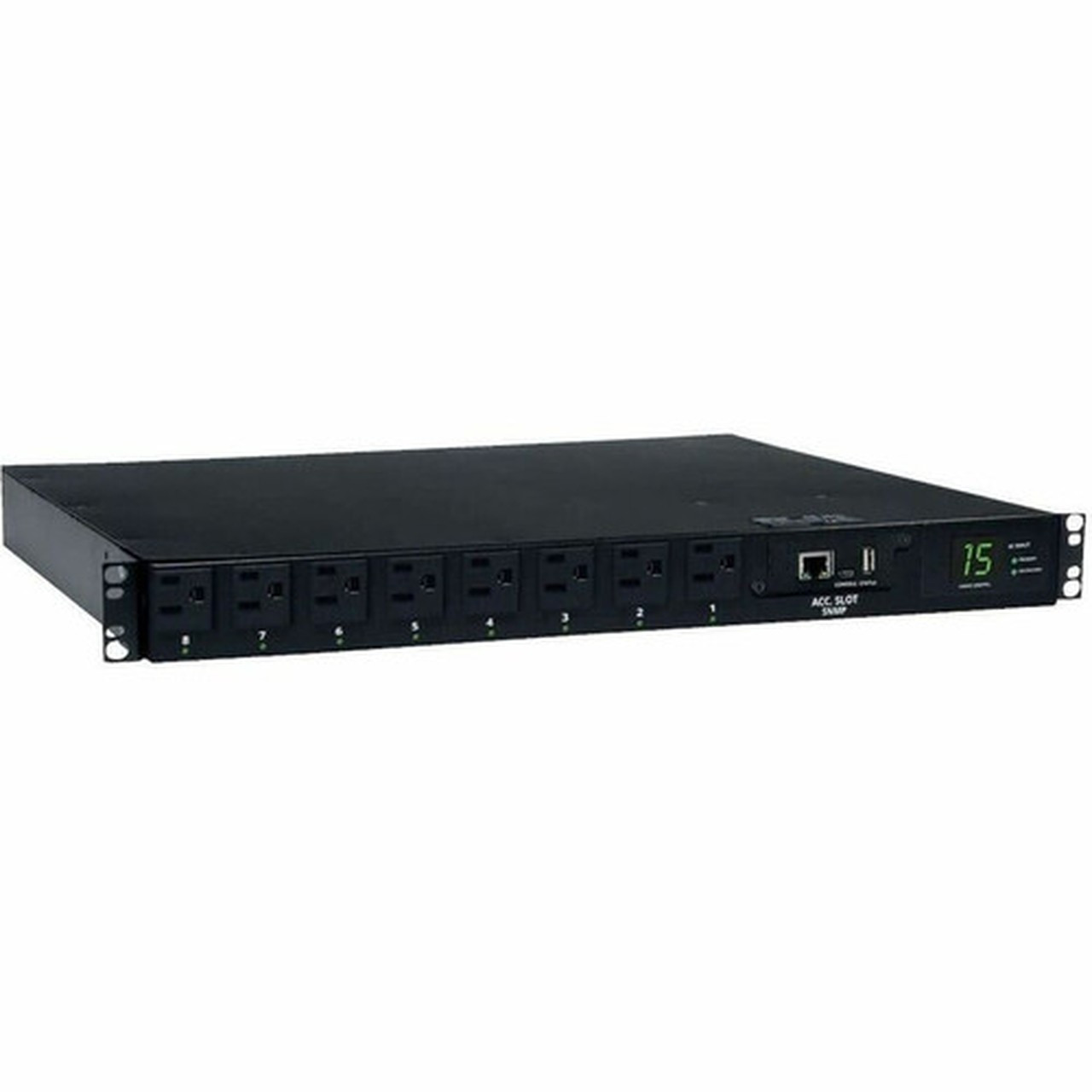

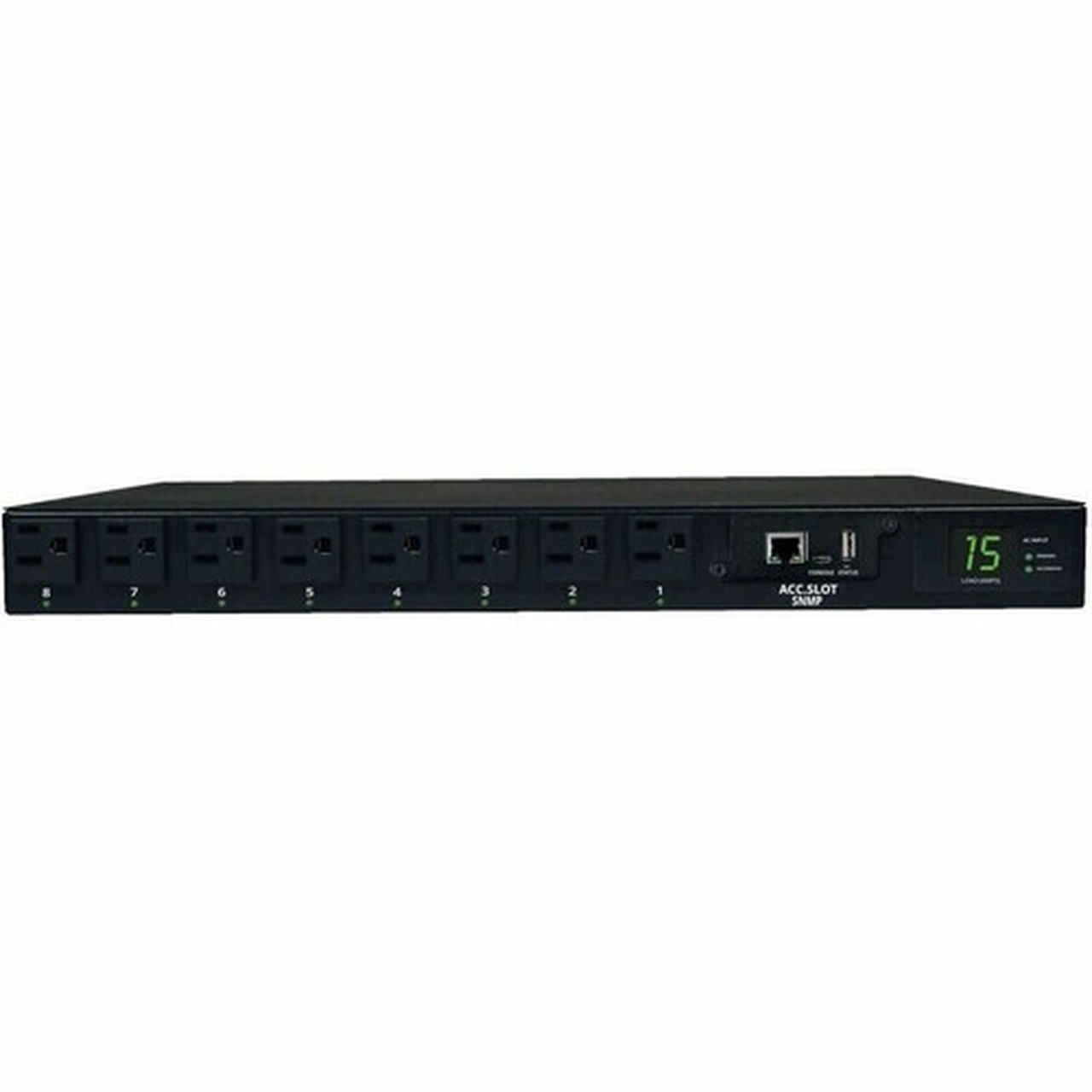

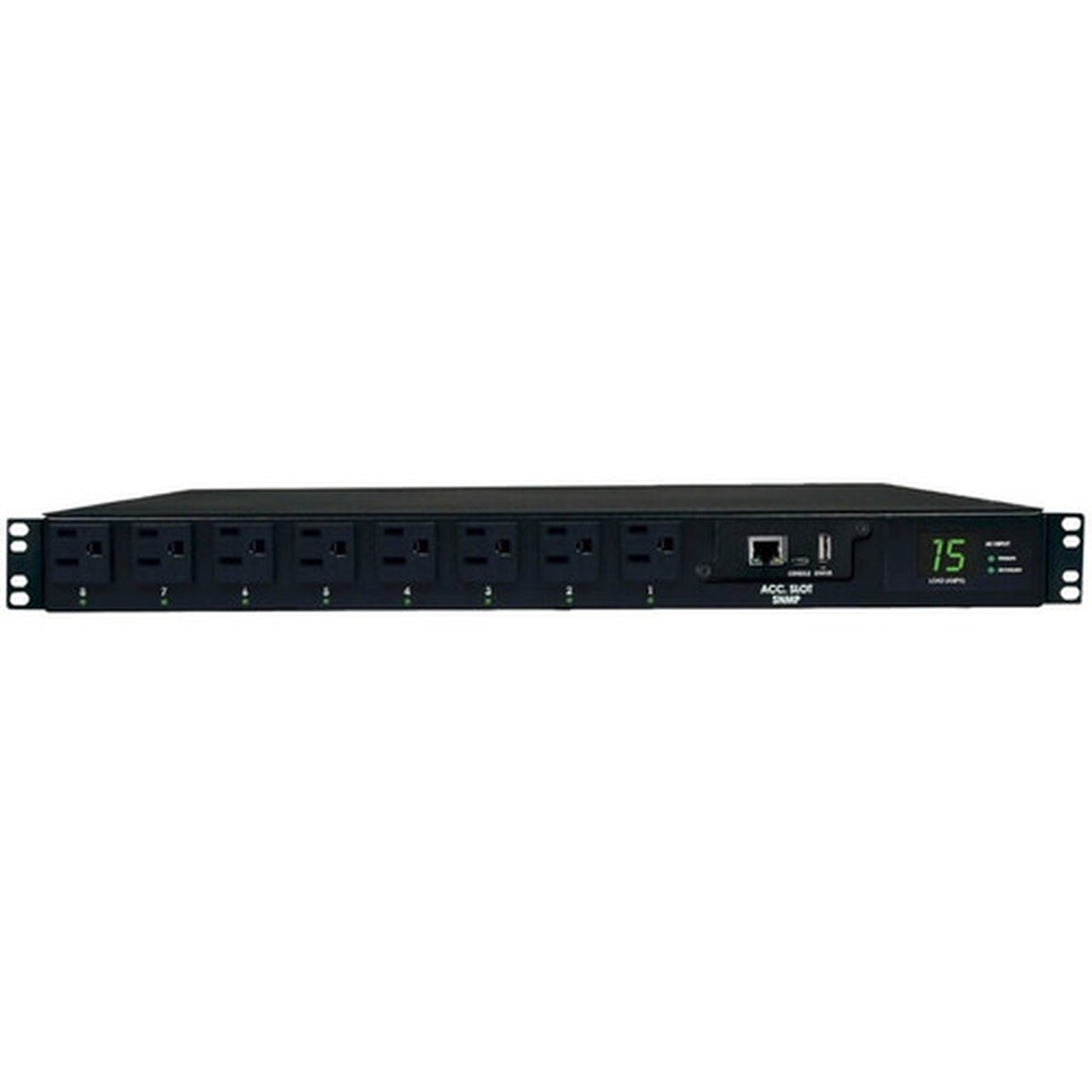

APC by Schneider Electric PDUMH15ATNET Switched ATS PDU - 1.8kVA 120V 15A 8 Outlet - 1U Rack-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switched ATS PDU operates on a single-phase 120V AC system, providing consistent 120V output across all eight outlets. The 1.8kVA power rating ensures adequate capacity for supporting multiple network devices, servers, or storage units within a rack. Two NEMA 5-15P input connectors allow connection to separate power sources, enabling the automatic transfer switch functionality.
Management features include programmable outlet control, sequential power-on to prevent inrush current issues, and real-time monitoring via the embedded web interface. The unit includes a two-digit visual current meter for at-a-glance load monitoring. Physical dimensions are optimized for rack deployment with a height of 1.75", width of 1.75", and depth of 14.50".
Relevant factors for this section include PDU Type, Plug/Connector Type, Plug/Connector Detail, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDUMH15ATNET's integrated Automatic Transfer Switch provides automatic failover to a secondary power source when the primary input fails, ensuring continuous operation for connected equipment. This redundancy capability is particularly valuable for single-corded network devices that require high availability.
Remote Management
The built-in Java-free LX Platform interface enables secure web-based monitoring and control from any location, supporting individual outlet switching, power scheduling, and real-time current measurement.
- 24/7 network access
- Individual outlet control
- Current monitoring
Power Sequencing
Sequential outlet power-on prevents simultaneous startup of multiple devices, reducing inrush current and potential circuit overload during equipment initialization.
- Prevents inrush issues
- Controlled startup
- Equipment protection
Deployment / Use Cases
This PDU is engineered for rack-mounted IT environments where power redundancy and remote management are operational requirements. The ATS functionality makes it ideal for network closets, server rooms, and data centers that utilize dual power feeds but have equipment with single power supplies.
Typical deployments include supporting network switches, routers, servers, and storage arrays in 19" standard racks. The vertical mounting orientation and 1U height allow efficient use of rack space while providing accessible outlet placement. The TAA compliance ensures suitability for government, education, and healthcare installations where procurement regulations apply.
Network Infrastructure
Provide redundant power to core networking equipment including switches, routers, and firewalls in rack environments with dual power sources.
Server Rack Deployment
Distribute power to 1U and 2U servers in data center racks while enabling remote reboot capability and power monitoring.
Physical Profile
The PDUMH15ATNET features a black finish that blends with standard rack equipment. Its vertical mounting design occupies only 1U of rack height while providing full front-to-back depth for proper cable management. The compact dimensions of 1.75" x 1.75" x 14.50" ensure compatibility with most 19" server racks and cabinets. The 11-pound weight makes installation straightforward without requiring additional support hardware.
- Width
- 1.75" (44.45 mm)
- Depth
- 14.50" (368.30 mm)
- Height
- 1U
- Weight
- 11 lb (4989.52 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 1.8kVA power capacity with 120V AC input/output
- Integrated Automatic Transfer Switch for redundant power
- Eight NEMA 5-15R outlets for equipment connectivity
- Java-free LX Platform for remote web management
- 1U vertical rack-mountable design
- Sequential outlet power-on prevents inrush current
- Two-digit visual current meter for load monitoring
- TAA compliant for government procurement
- Two-year limited warranty
- Black finish for professional rack appearance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMH15ATNET |
| Brand Name | Tripp Lite series |
| Product Model | PDUMH15ATNET |
| Product Name | PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1.80 kVA |
| Management | |
| Management | Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails Sequential outlet power-on prevents inrush-related equipment interaction on startup Programmable or real-time outlet power control via web/network monitoring and control card |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 1.75" (44.45 mm) |
| Depth | 14.50" (368.30 mm) |
| Weight (Approximate) | 11 lb (4989.52 g) |
| Miscellaneous | |

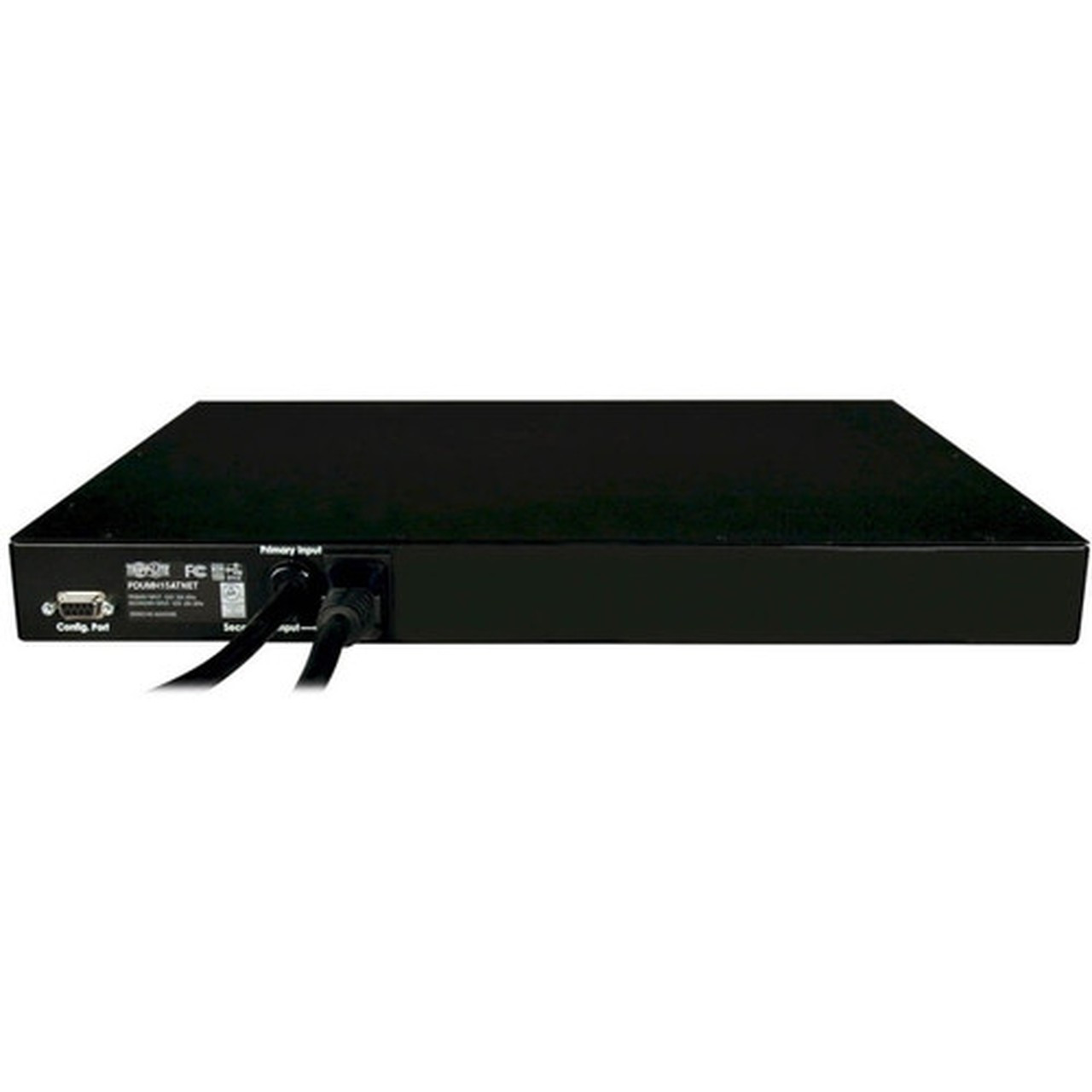

| Package Contents | PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet PDU with attached 5-15P input power cord Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input User manuals with warranty information |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The PDUMH15ATNET has a 1.8 kVA power rating, operating at 120V AC with 15A capacity. This provides sufficient power distribution for multiple rack-mounted devices including servers, network equipment, and storage units within a single rack environment.
How does the Automatic Transfer Switch work?
The integrated ATS automatically switches to a secondary power input when the primary source fails. This provides redundant power for connected equipment, particularly benefiting single-corded devices that require continuous operation without manual intervention during power source failures.
What type of outlets does this PDU have?
This unit features eight NEMA 5-15R outlets, which are standard North American 15A receptacles. The outlets are individually switched and controllable through the management interface, allowing remote power cycling of connected devices.
How is this PDU mounted in a rack?
The PDUMH15ATNET is designed for vertical mounting in standard 19" racks, occupying 1U of rack height. Its compact dimensions of 1.75" x 1.75" x 14.50" make it suitable for most server cabinets and network racks without consuming excessive space.
What management capabilities are included?
Management features include web-based control via the Java-free LX Platform interface, allowing individual outlet switching, power scheduling, sequential startup, and real-time current monitoring. The two-digit visual current meter provides immediate load visibility at the rack.
Is this PDU compliant with government procurement requirements?
Yes, this unit is TAA (Trade Agreements Act) compliant, making it suitable for government, education, and institutional purchases through programs like GSA Schedule. It also carries a two-year limited warranty and is environmentally friendly in its construction.
