Tripp Lite series B118-004-UHD-2 4-Port 4K 3D HDMI Splitter - 3840 × 2160 - 22.97 ft (7000 mm) Maximum Operating Distance - 1 x HDMI - (B118-004-UHD-2)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features

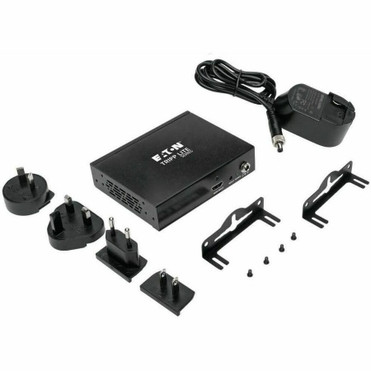

- B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
- International Plug Adapters (North America, Europe, U.K. and Australia)
- Mounting Hardware
- Owner's Manual
Maximum Video Resolution: 3840 × 2160
HDMI In: Yes
HDMI Out: Yes

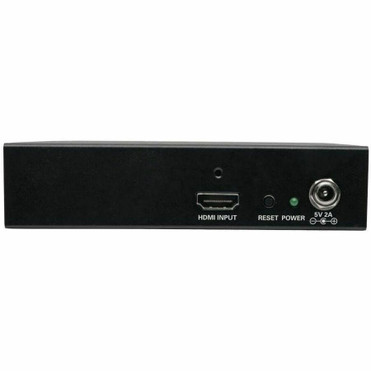

Number of HDMI Inputs: 1

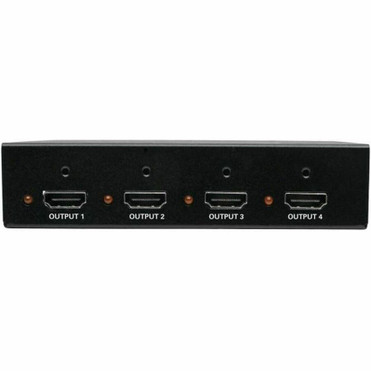

Number of HDMI Outputs: 4
Maximum Operating Distance: 22.97 ft (7000 mm)
Input Voltage: 120 V AC,230 V AC,5 V DC
Product Material: Metal
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time.
- Recommended for digital signage in classrooms, churches, office buildings, restaurants/bars, etc.
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
- Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Expand the number of connected displays, up to 64, by cascading up to 3 levels of splitters together
- Plug and play-no software or drivers required
- 3-year limited warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B118-004-UHD-2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B118-004-UHD-2 |
| Product Name | B118-004-UHD-2 4-Port 4K 3D HDMI Splitter |
| Packaged Quantity | 1 Each |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Maximum Operating Distance | 22.97 ft (7000 mm) |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC,5 V DC |
| Physical Characteristics | |
| Product Material | Metal |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
