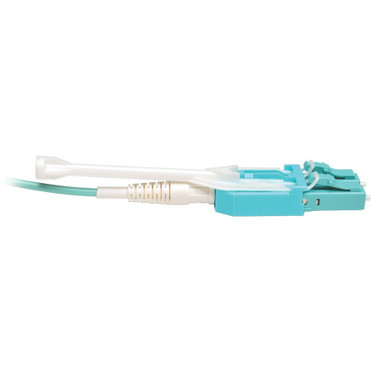

Tripp Lite series N820-05M-T Fiber Optic Duplex Patch Network Cable - 16.4 ft (5 m) Fiber Optic Network Cable for Network Device - 2 x (N820-05M-T)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Cable Length: 16.4 ft (5 m)
Connector Type on First End: LC Network - Male
Connector on First End Details: 2 x LC Network - Male
Connector Type on Second End: LC Network - Male
Connector on Second End Details: 2 x LC Network - Male
Jacket Type: LSZH
Device Supported: Network Device
Color Family: Green
Product Color: Aqua
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: Lifetime
- Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
- Slim uniboot design saves space and makes cables easier to manage
- Premium-grade ceramic ferrules designed specifically for 10GbE and faster applications
- Sturdy plastic housing for long-lasting durability
- Backward compatible with existing 50/125 fiber
- Max 10GbE distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N820-05M-T |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | N820-05M-T |
| Product Name | N820-05M-T Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 16.4 ft (5 m) |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
