Tripp Lite series SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS - 2U Rack/Tower - 3 Hour Recharge - 4.10 Minute Stand-by (SU3000RTXLCD2U)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 7 Front Panel Leds Indicate Line Power Availability
- AC to DC Conversion
- Battery Mode Operation
- Inverter Mode
- Eco Mode Operation
- Bypass Mode Operation
- AC Output Status

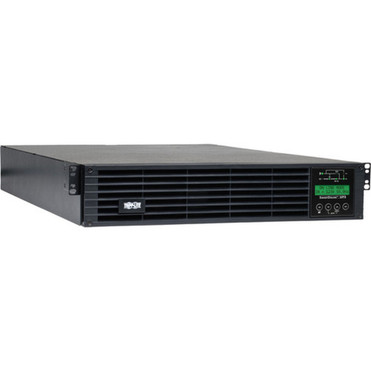

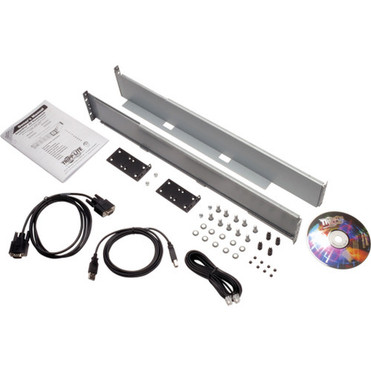

- SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
- PowerAlert UPS Monitoring Software CD
- USB Cable
- DB9 Cable

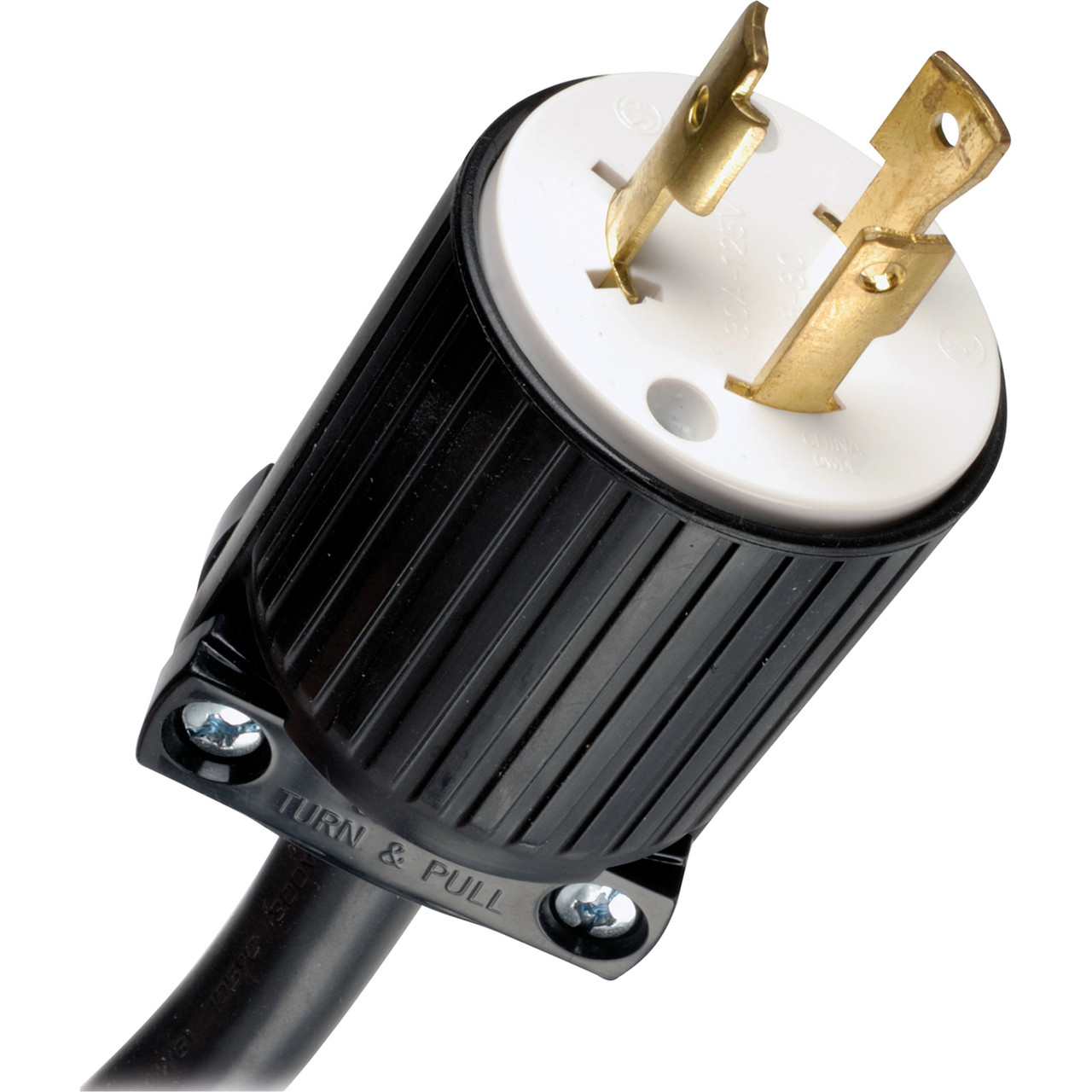

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-15R,NEMA 5-15/20R,NEMA L5-30R
Receptacle Detail: 4 x NEMA 5-15R,4 x NEMA 5-15/20R,1 x NEMA L5-30R
Cord Length: 10 ft (3.05 m)
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 127 V AC
Output Voltage: 127 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J
Circuit Breaker: Yes
Network Management: SNMP Manageable
Alarm: Low Battery,Power Failure,Overload,UPS Fault,Remote Shutdown
Status Indicators:
Serial Port: Yes
USB: Yes
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4.10 Minute
Backup/Run Time (Half Load): 11.30 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 801 BTU/h
Height: 3.40" (86.36 mm)
Width: 17.30" (439.42 mm)
Depth: 25.50" (647.70 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 70.50 lb (31978.26 g)
Package Contents:
Software Included: PowerAlert UPS Monitoring Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- 3000VA / 3kVA / 2700W on-line double-conversion 2U rackmount UPS
- 100/110/120/127V 50/60Hz output; High 98% full load efficiency economy mode option
- Interactive LCD with 9 selectable screens of UPS and site power data
- Expandable runtime, Hot-swap batteries, 25.5 in / 64.8 cm depth
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU3000RTXLCD2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU3000RTXLCD2U |
| Product Name | SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15R,NEMA 5-15/20R,NEMA L5-30R |
| Receptacle Detail | 4 x NEMA 5-15R,4 x NEMA 5-15/20R,1 x NEMA L5-30R |
| Cord Length | 10 ft (3.05 m) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 127 V AC |
| Output Voltage | 127 V AC |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | Low Battery,Power Failure,Overload,UPS Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators |
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.10 Minute |
| Backup/Run Time (Half Load) | 11.30 Minute |
| Battery Life | 6 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Thermal Dissipation | 801 BTU/h |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 25.50" (647.70 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 70.50 lb (31978.26 g) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerAlert UPS Monitoring Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
