Tripp Lite by Eaton SMART2200RM2UL SmartPro 2200VA/1920W Line-Interactive UPS - 2U Rack-Mount - 5.10 Min Full Load Runtime - Pure Sine Wave - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Tripp Lite by Eaton SmartPro SMART2200RM2UL is a line-interactive UPS engineered to deliver 2200VA/1920W of backup power capacity for critical server and network storage environments. Designed specifically for 2U rack-mount deployment, this unit provides reliable power protection with pure sine wave output that maintains compatibility with sensitive electronic equipment, ensuring stable operation during power disturbances.
With 5.10 minutes of runtime at full load and 11.70 minutes at half load, the UPS offers sufficient backup time for graceful system shutdowns or continued operation during brief power interruptions. The hot-swappable battery design enables maintenance without system downtime, while the 1.40-hour recharge time ensures rapid recovery between power events. This combination of capacity, runtime, and serviceability makes it a practical solution for IT environments where uptime is critical.

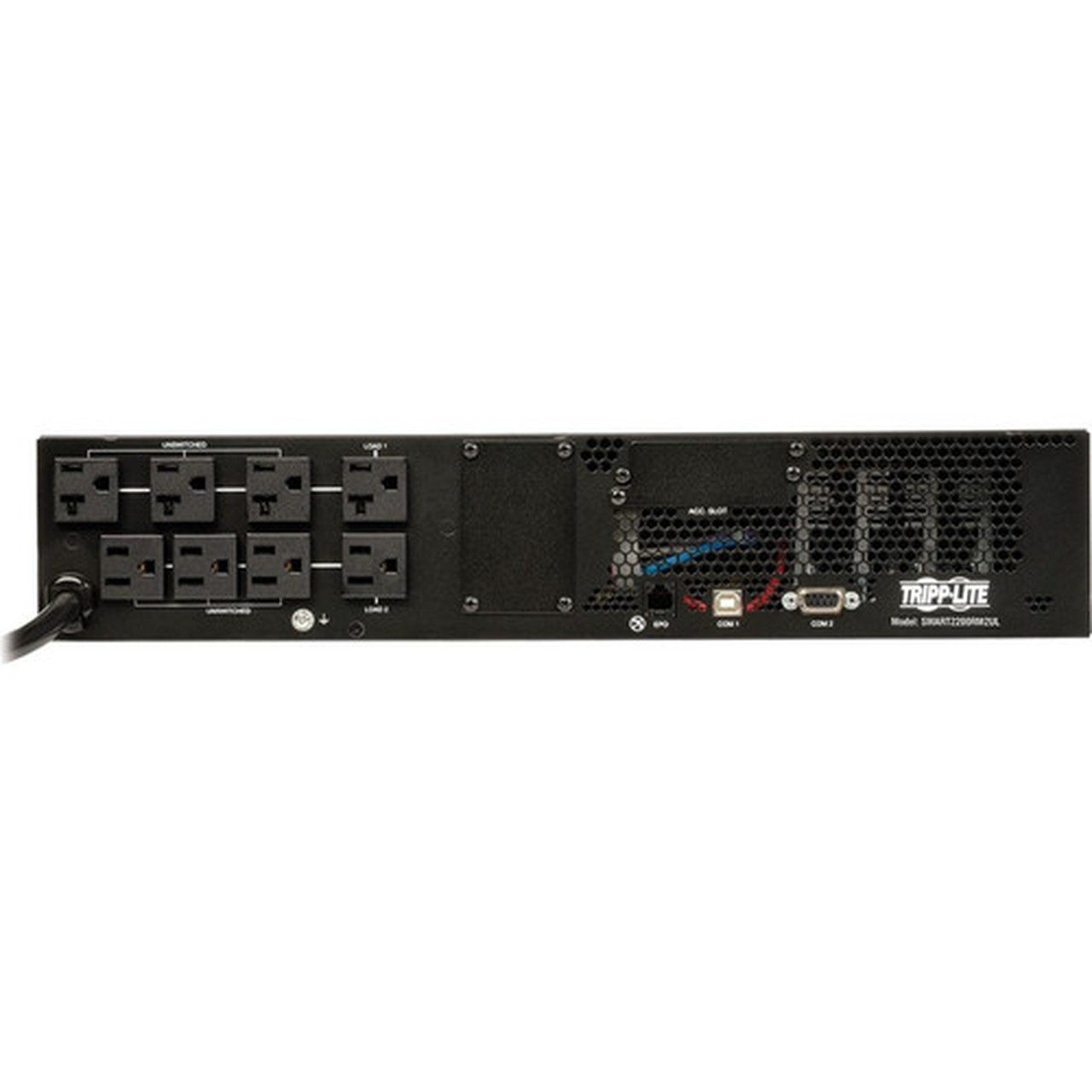

The unit features eight total outlets—four NEMA 5-15/20R and four NEMA 5-20 receptacles—accommodating multiple devices while delivering clean power through pure sine wave technology. Built-in EMI/RFI noise filtering and a 570 J surge energy rating provide additional layers of protection against electrical noise and transient voltage spikes, safeguarding connected equipment from damage.
Technical Overview
This line-interactive UPS maintains 120V AC input with 16A current capacity, delivering clean power through pure sine wave technology that prevents damage to sensitive server components. The 5ms transfer time ensures seamless transition to battery power during outages, while built-in EMI/RFI filtering protects against electrical noise interference that can disrupt server and storage operations.
Advanced management capabilities include comprehensive alarm systems for UPS startup, power failure, low battery, overload conditions, UPS faults, and remote shutdown commands. Both USB and serial interfaces provide connectivity for monitoring and control software integration, enabling centralized management in networked environments. The unit operates on a single-phase power system with a circuit breaker for added safety, and its 45 dB(A) sound emission rating ensures quiet operation in occupied technical spaces.
Environmental specifications include a maximum operating temperature of 122°F (50°C) and thermal dissipation of 1343 BTU/h, making it suitable for standard server room conditions. The UPS is RoHS compliant and environmentally friendly, adhering to Restriction of Hazardous Substances standards while delivering reliable performance in demanding IT applications.
Key Product Advantages
The hot-swappable battery system represents a significant operational advantage, allowing battery replacement without powering down connected equipment. This feature minimizes downtime during maintenance cycles and extends the overall service life of the UPS system.
Rack-Optimized Design
The 2U form factor maximizes rack space efficiency while providing substantial 2200VA capacity. Standard 19-inch rack compatibility ensures straightforward integration into existing server environments.
- 2U rack height
- 19.45" width for standard racks

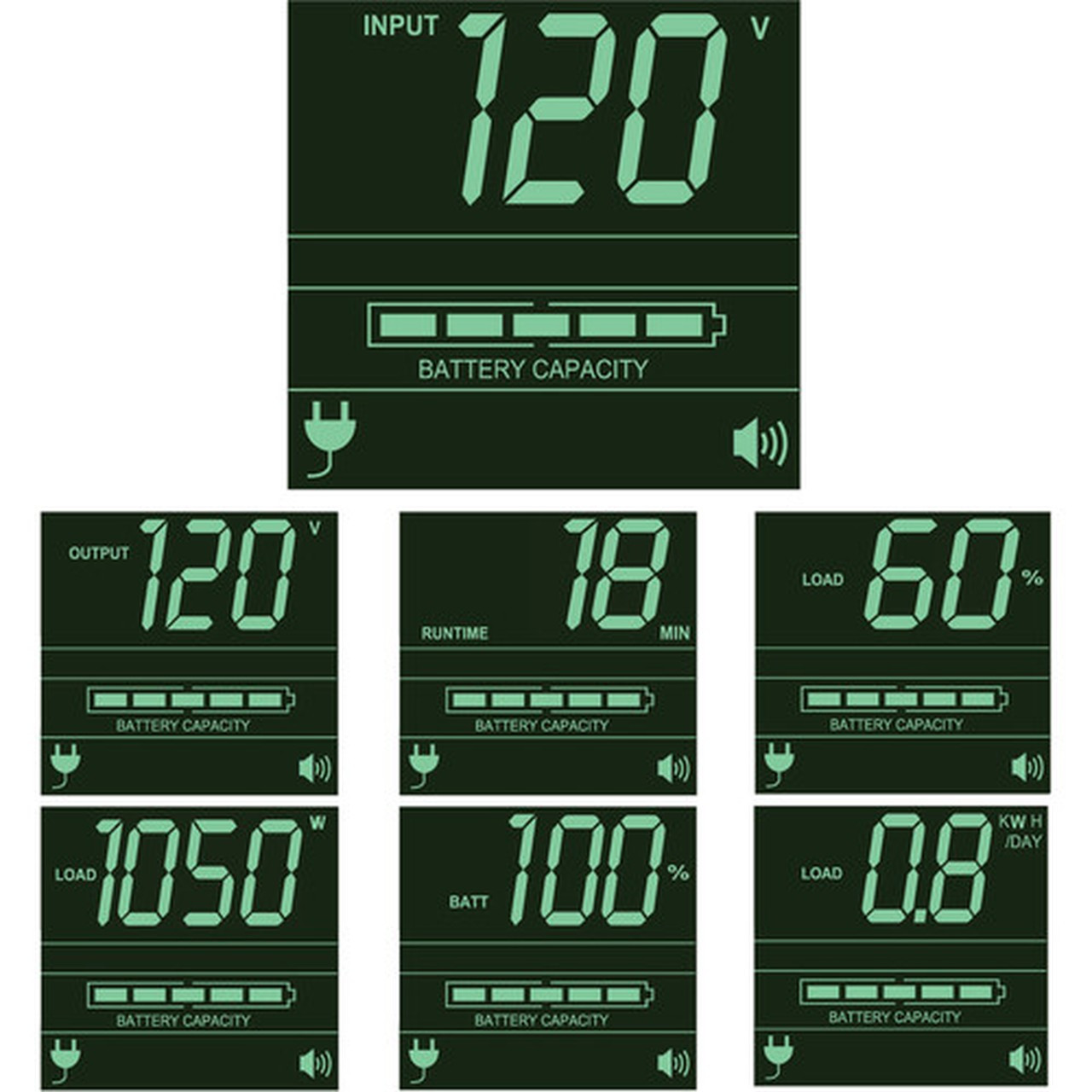

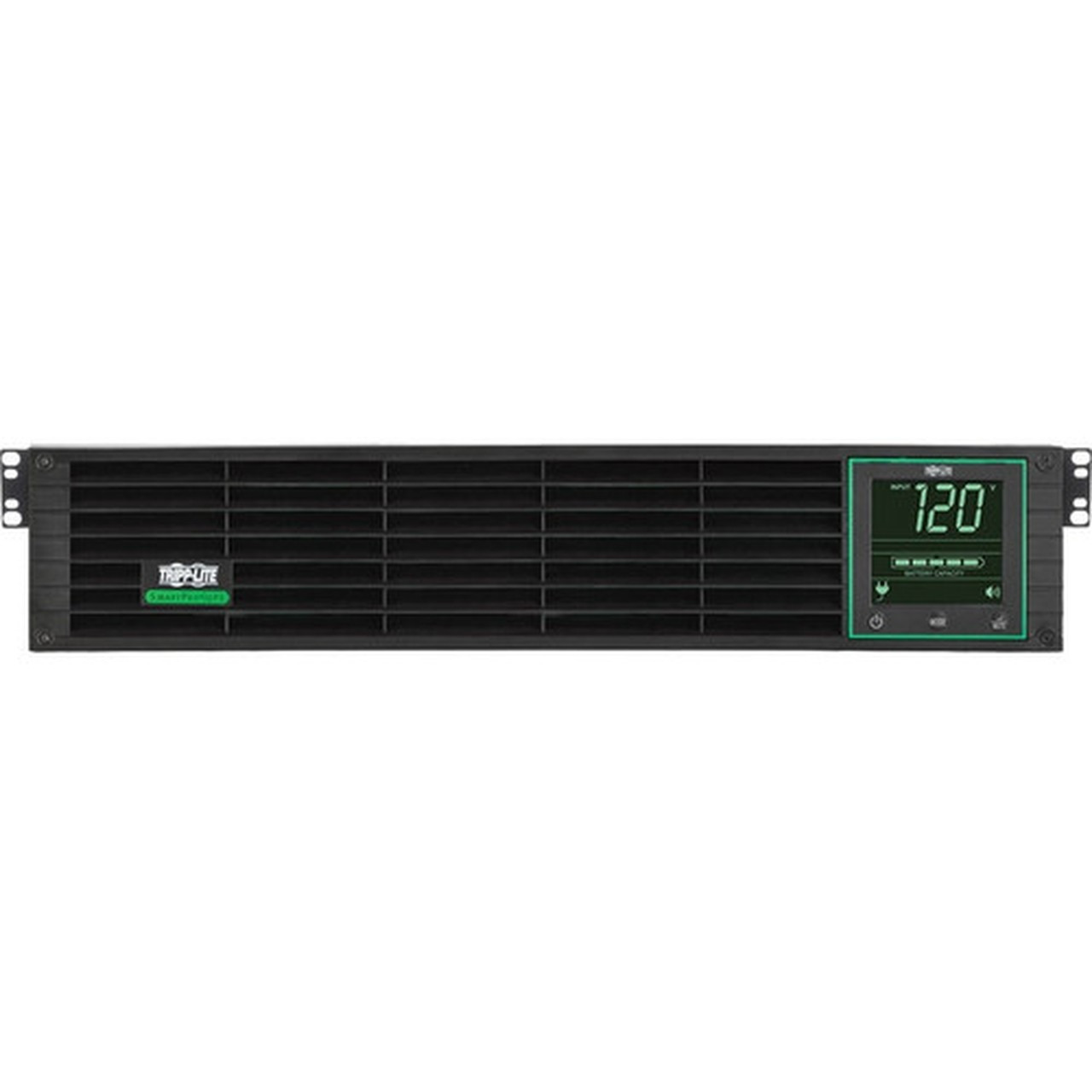

- Front-accessible controls and displays
Comprehensive Power Protection
Beyond battery backup, the unit delivers multiple layers of power conditioning including surge suppression, noise filtering, and voltage regulation to safeguard connected equipment.
- 570 J surge energy rating
- EMI/RFI noise filtering
- Pure sine wave output
Deployment / Use Cases
The SMART2200RM2UL serves environments where power quality issues such as sags, surges, and brief outages threaten operational continuity. With eight total outlets (four NEMA 5-15/20R and four NEMA 5-20), the unit accommodates multiple devices while maintaining clean power delivery to each connected component.
Data centers, small server rooms, and network closets benefit from the rack-optimized design that conserves vertical space while delivering enterprise-grade power protection. The 45 dB(A) sound emission rating ensures quiet operation in occupied technical spaces.
Server Room Protection
Ideal for single-server installations or small server clusters requiring reliable backup power for graceful shutdowns during outages. The 2200VA capacity supports typical rack-mounted server configurations with associated networking equipment.
Network Storage Solutions
Provides critical runtime for NAS devices and storage arrays, preventing data corruption and ensuring continuous access during power disturbances. The pure sine wave output maintains compatibility with sensitive storage electronics.
Physical Profile
Designed specifically for rack installation, the UPS measures 3.43 inches in height (2U), 19.45 inches in width for standard rack compatibility, and 17.32 inches in depth. The 41.78-pound weight includes internal batteries, with rack-mounting hardware provided for secure installation. The compact 2U footprint maximizes usable rack space while delivering substantial power capacity.
- Width
- 19.45" (494 mm)
- Depth
- 17.32" (440 mm)
- Height
- 3.43" (87 mm)
- Weight
- 45 dB(A)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 2200VA/1920W line-interactive UPS with pure sine wave output
- 5.10 minutes runtime at full load, 11.70 minutes at half load
- 2U rack-mountable form factor for space-efficient deployment
- Hot-swappable batteries enable maintenance without downtime
- Eight total outlets: 4 × NEMA 5-15/20R and 4 × NEMA 5-20
- USB and serial interfaces for monitoring and management
- 5ms transfer time with EMI/RFI noise filtering
- 5-year limited warranty for long-term protection
- RoHS compliant and environmentally friendly design
- 45 dB(A) quiet operation suitable for occupied spaces
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART2200RM2UL |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART2200RM2UL |
| Product Name | SmartPro SMART2200RM2UL 2200VA UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |

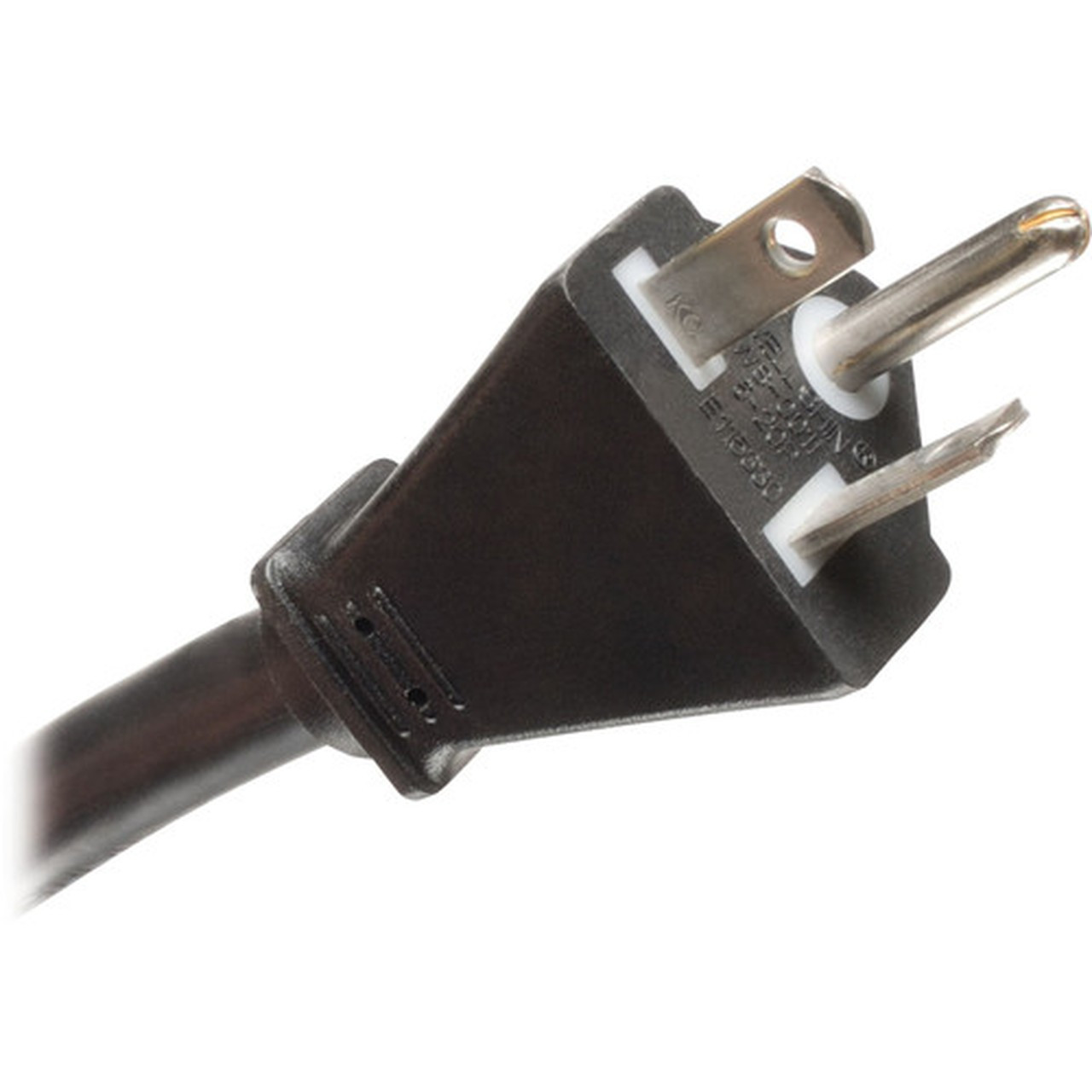

| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-15/20R,NEMA 5-20 |
| Receptacle Detail | 4 x NEMA 5-15/20R,4 x NEMA 5-20 |
| Transfer Time | 5 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Server,Network Storage Device |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Input Current | 16 A |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Management | |
| Alarm | UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Backup/Run Time (Half Load) | 11.70 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 1.40 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 1343 BTU/h |
| Physical Characteristics | |
| Height | 3.43" (87 mm) |
| Width | 19.45" (494 mm) |
| Depth | 17.32" (440 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 41.78 lb (18950 g) |
| Miscellaneous | |
| Package Contents | SmartPro SMART2200RM2UL 2200VA UPS USB cable DB9 cable EPO cable Rack-mounting hardware Owner's manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This UPS has a power capacity of 2.20 kVA (2200VA) and 1.92 kW (1920W), making it suitable for protecting critical server and network storage equipment with substantial power loads.
What are the runtime specifications for this UPS?
At full load, the UPS provides 5.10 minutes of backup runtime, extending to 11.70 minutes at half load. This allows for graceful shutdowns or continued operation during brief power interruptions, with a typical battery recharge time of 1.40 hours.
How many outlets does this UPS have?
The UPS features eight total outlets: four NEMA 5-15/20R receptacles and four NEMA 5-20 receptacles, accommodating multiple devices with battery backup and surge protection for diverse equipment configurations.
What input and output voltage does this UPS support?
It supports 120 V AC input voltage with 16 A current capacity, and delivers output voltages of 110 V AC, 115 V AC, or 120 V AC, providing stable power for connected devices in standard North American electrical environments.
Is this UPS designed for rack or tower deployment?
This UPS is designed for rack deployment with a 2U form factor, making it space-efficient for standard 19-inch server racks. It includes rack-mounting hardware for secure installation in data centers or network closets.
What management and connectivity options are available?
The UPS includes USB and serial ports for monitoring and management, along with alarms for UPS startup, power failure, low battery, overload, UPS fault, and remote shutdown. These features enable integration with management software for centralized control.
