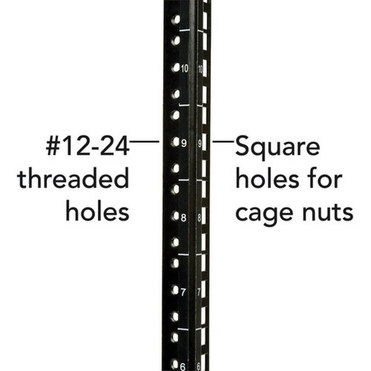

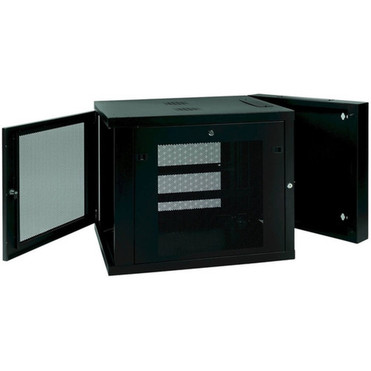

Marketing Information: The SRW12US33 SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12US33 comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches deep, such as 1U servers, UPS systems, battery packs, network switches and patch panels.
Form Factor: Wall Mountable
Height: 25" (635 mm)
Width: 23.63" (600.20 mm)
Depth: 33.50" (850.90 mm)
Rack Height: 12U
Rack Width: 19" (482.60 mm)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Maximum load capacity of 250 lb.
- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
[custom-specifications]
Specifications | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | SRW12US33 |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Line | SmartRack |
Product Model | SRW12US33 |
Product Name | SRW12US33 33" Deep Wall mount Rack Enclosure Server Cabinet |
Product Type | Rack Cabinet |
Physical Characteristics | |
Form Factor | Wall Mountable |
Height | 25" (635 mm) |
Width | 23.63" (600.20 mm) |
Depth | 33.50" (850.90 mm) |
Rack Height | 12U |
Rack Width | 19" (482.60 mm) |
Miscellaneous | |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 5 Year |
