- Premium double-shielded cables with tinned copper braid and aluminum mylar foil feature twisted 28/20 AWG data lines
- Gold plated contacts provide superior conductivity for low and high speed devices (1.5 to 480 Mbps.)
- Active extension cable regenerates USB signal for extra-long distances: daisy-chain up to 80-ft. in most applications
- Marketing Information:
- Active
- Double Shielded
- Tinned Copper Braid
- Aluminum Mylar Foil
- USB 2.0 Extension Cable
- 16-ft. USB AA 2.0 Certified Active Extension Cable USB-A F/M
- USB Hub

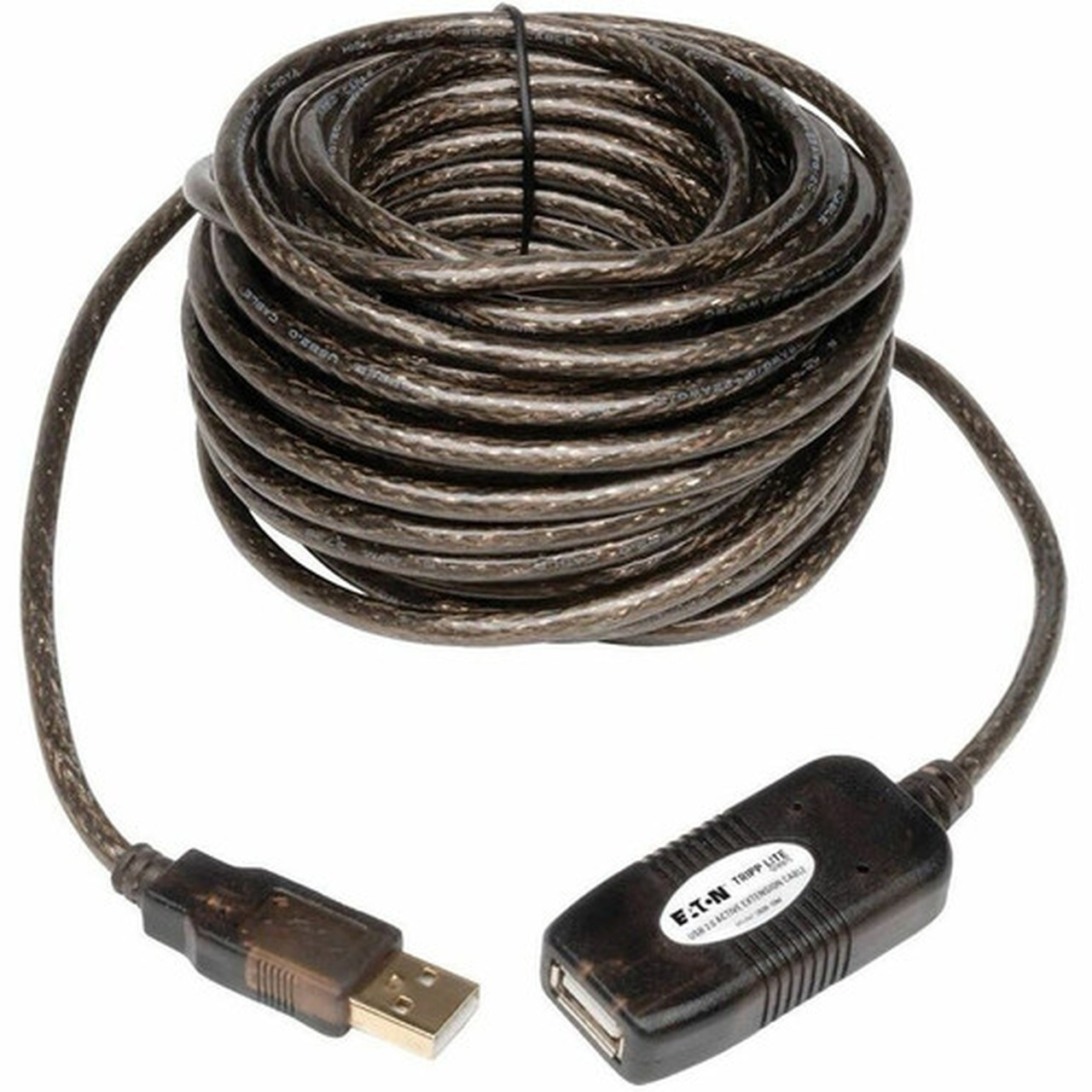

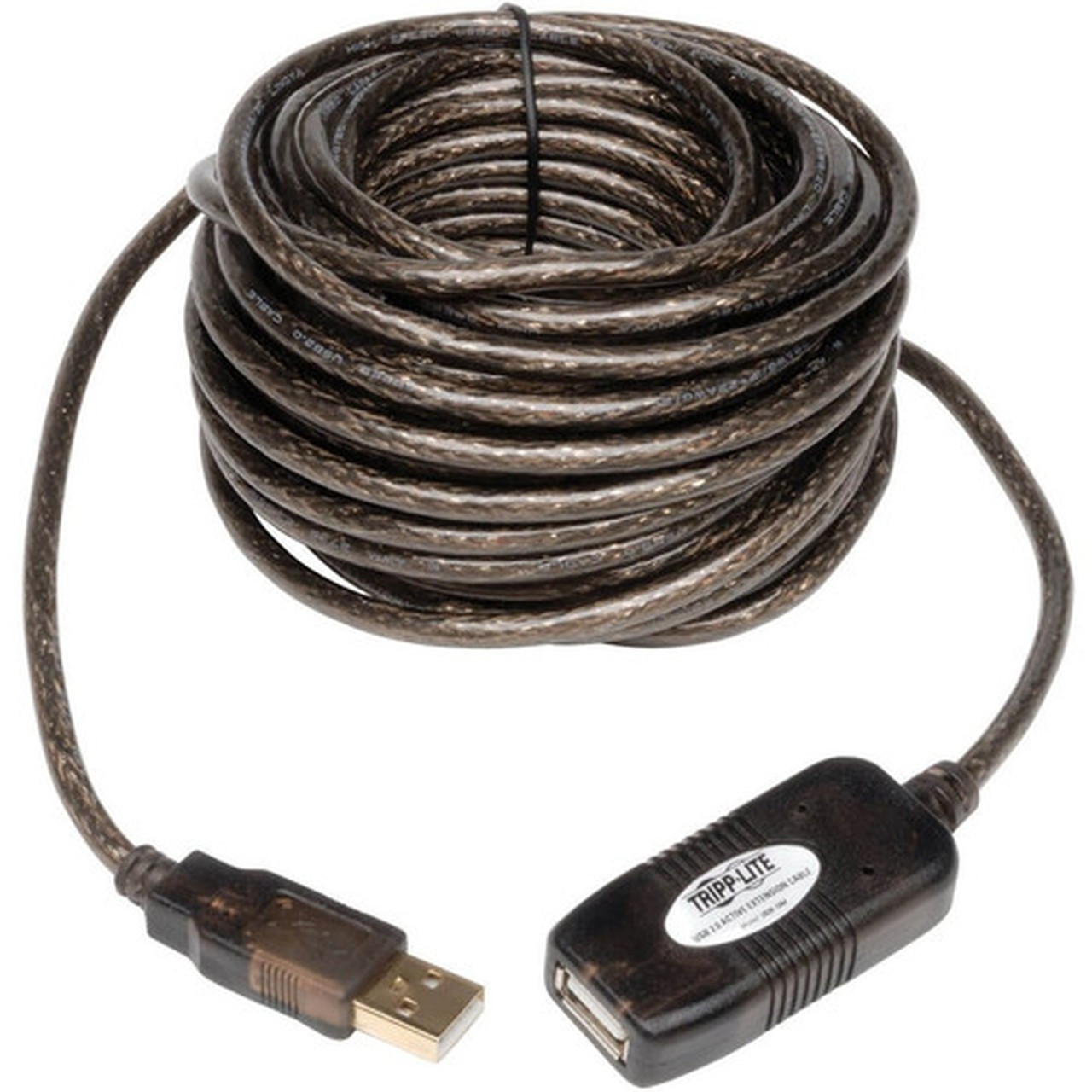

Tripp Lite's 16-ft. USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80ft by daisy chaining up to 5 of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard 6' 10' or 15' USB cable to reach the desired distance.
Cable Type: USBCable Characteristic: Extension CableCable Length: 16 ftConnector Type on First End: USB 2.0 Type A - MaleConnector on First End Details: 1 x USB 2.0 Type A - MaleConnector Type on Second End: USB 2.0 Type A - FemaleConnector on Second End Details: 1 x USB 2.0 Type A - FemaleContact Plating: GoldShielding: YesAmerican Wire Gauge: 28/22 AWGFeatures:[custom-specifications]
Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: U026-016
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Model: U026-016
Product Name: USB 2.0 Active Extension Repeater Cable (A M/F), 16 ft. (4.88 m)
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB
Cable Characteristic: Extension Cable
Cable Length: 16 ft
Connector Type on First End: USB 2.0 Type A - Male
Connector on First End Details: 1 x USB 2.0 Type A - Male
Connector Type on Second End: USB 2.0 Type A - Female
Connector on Second End Details: 1 x USB 2.0 Type A - Female
Contact Plating: Gold
Shielding: Yes
American Wire Gauge: 28/22 AWG
Features:
- Active
- Double Shielded
Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Color: Black
Shielding Material:
- Tinned Copper Braid
- Aluminum Mylar Foil
Miscellaneous
Package Contents:
- USB 2.0 Extension Cable
- 16-ft. USB AA 2.0 Certified Active Extension Cable USB-A F/M
Compatibility:
- USB Hub
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 3 Year
