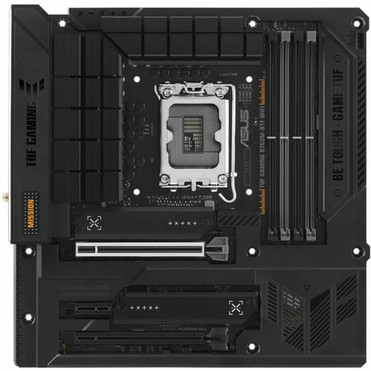

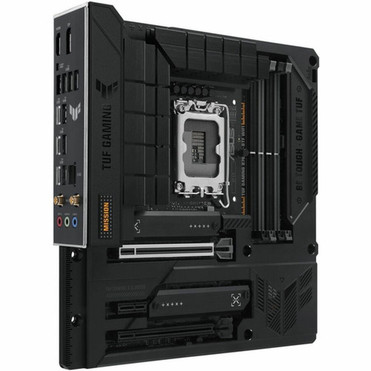

TUF GAMING B760M-BTF WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron (TUF GAMING B760M-BTF WIFI)

Marketing Information:

TUF GAMING B760M-BTF WIFI

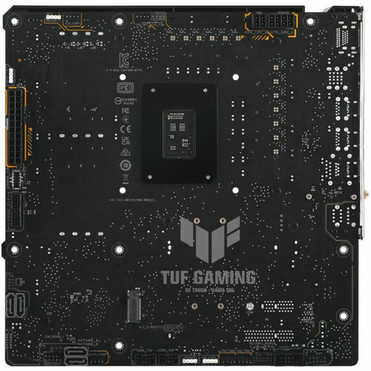

The TUF GAMING B760M-BTF WIFI takes all the essential elements of the latest Intel^®processors and combines them with game-ready features and proven durability. "BTF" means "Back To (the) Future" for a new era for all PC DIY gamers; the BTF series hides its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.

This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.

INTELLIGENT CONTROL

The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate

The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-BTF WIFI is the perfect foundation for your next Intel battle rig.

12(50A)+1(60A)+1 Power Stages

12(50A)+1(60A)+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

8+4 Pin ProCool Power Connectors

Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components | TUF Chokes

Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

TUF Capacitors

The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

AI-powered: Yes

Chipset Manufacturer: Intel

Chipset Model: B760

Total Processor Supported: 1

Processor Socket: Socket LGA-1700

Processor Generation Supported: 13th Gen,12th Gen

Processor Supported: Core,Pentium Gold,Celeron

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 192 GB

Memory Speed Supported: 7200 MHz,7000 MHz,6800 MHz,6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.2

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of Expansion Slots: 3

Total Number of PCI Express Slots: 3

Number of PCI Express x1 Slots: 1

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 4.0,PCI Express 5.0

Total Number of USB Ports: 10

Number of USB 3.2 Gen 1 Type-A Ports: 2

Number of USB 3.2 Gen 2 Type-A Ports: 1

Number of USB 3.2 Gen 2 Type-C Ports: 1

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of Thunderbolt 4 Ports: 2

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 3

Total Number of Onboard USB Ports: 7

Number of Onboard USB 2.0 Ports: 4

Form Factor: Micro ATX

Width: 9.61" (244 mm)

Depth: 9.61" (244 mm)

Package Contents:

• GAMING B760M-BTF WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x User guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
