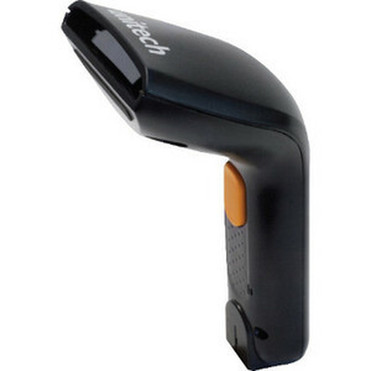

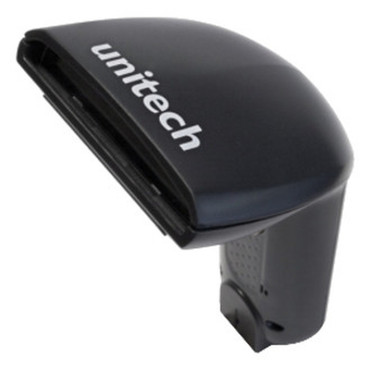

Unitech AS10-P Handheld Barcode Scanner - 100 scan/s CCD - Keyboard Wedge - PS2 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AS10-P features a CCD image sensor that captures barcodes at a rate of 100 scans per second, enabling rapid data entry and reducing processing delays. This scanner supports an extensive range of barcode symbologies, including GS1 DataBar, UPC/EAN/JAN, Code 39, EAN128, Code 128, Interleave 25, Matrix 25, CODABAR/NW7, Code 11, MSI/PLESSEY, Code 93, China Postage, and Code 32/Italian Pharmacy codes.
Connectivity is handled through keyboard wedge and PS2 interfaces, allowing direct integration with POS terminals, computers, and other host devices without additional drivers. The scanner operates as a standard keyboard input device, making it compatible with most software applications that accept keyboard data entry.
Relevant factors for this section include Barcode Symbology Supported, Image Sensor Type, Scan Rate, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Unitech AS10-P offers several advantages for businesses seeking an efficient and cost-effective scanning solution. Its high scan speed and reliable CCD sensor ensure accurate data capture even in demanding environments, while the broad symbology support handles diverse barcode requirements.
High-Speed Scanning
With a 100 scan per second rate, this scanner minimizes wait times and boosts productivity during peak operational hours.
- Rapid data entry
- Reduced processing delays
Plug-and-Play Connectivity
Keyboard wedge and PS2 interfaces enable easy setup without software installation, compatible with most existing systems.
- No drivers required
- Standard keyboard emulation
Extensive Symbology Support
Supports over a dozen barcode types, including retail, industrial, and postal codes, for versatile application use.
- GS1 DataBar to Code 32
- Wide compatibility
Deployment / Use Cases
The AS10-P is well-suited for retail point-of-sale, inventory management, warehouse tracking, and library systems where fast, accurate barcode scanning is essential. Its handheld form factor and lightweight design make it ideal for countertop use or mobile scanning in storage areas.
In retail environments, this scanner speeds up checkout processes and price verification. For inventory control, it facilitates stock counting and asset tracking. The plug-and-play interfaces allow quick deployment across multiple workstations without IT overhead, supporting seamless integration into existing workflows.
Relevant factors for this section include Barcode Symbology Supported, Image Sensor Type, Scan Rate, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail POS
Enhance checkout efficiency with rapid scanning of product barcodes, reducing customer wait times and improving service speed.
Inventory Management
Streamline stocktaking and asset tracking in warehouses or storerooms, ensuring accurate inventory records and minimizing errors.
Physical Profile
The AS10-P measures 7.07" (179.58 mm) in height, 3.19" (81.03 mm) in width, and 2.49" (63.25 mm) in depth, with an approximate weight of 4.23 oz (119.92 g). Its compact, ergonomic design fits comfortably in hand for extended use, and the black finish provides a professional appearance that blends with most workplace environments.
- Width
- 3.19" (81.03 mm)
- Depth
- 2.49" (63.25 mm)
- Height
- 7.07" (179.58 mm)
- Weight
- 4.23 oz (119.92 g)
Highlights
- 100 scans per second CCD sensor for high-speed data capture
- Supports keyboard wedge and PS2 interfaces for plug-and-play connectivity
- Handheld form factor with ergonomic design for comfortable use
- Black finish for a professional, durable appearance
- Extensive barcode symbology support including GS1 DataBar, UPC/EAN, Code 128, and more
- Compact dimensions: 7.07" H x 3.19" W x 2.49" D
- Lightweight at approximately 4.23 oz for easy portability
- 1-year limited warranty for reliable performance assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Unitech Electronics Co., Ltd |
| Manufacturer Part Number | AS10-P |
| Brand Name | Unitech |
| Product Model | AS10 |
| Product Name | Low Cost Linear Imager Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Barcode Symbology Supported | GS1 DataBar UPC / EAN / JAN Code 39 EAN128 Full ASCII Code 128 Interleave 25 Matrix 25 CODABAR / NW7 Code11 MSI / PLESSEY Code93 China Postage Code 32 / Italian Phammacy |
| Image Sensor Type | CCD |
| Scan Rate | 100 scan/s |
| Interfaces/Ports | |
| Host Interface | Keyboard Wedge,PS2 |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Height | 7.07" (179.58 mm) |
| Width | 3.19" (81.03 mm) |
| Depth | 2.49" (63.25 mm) |
| Weight (Approximate) | 4.23 oz (119.92 g) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What barcode types does the Unitech AS10-P scanner support?
The AS10-P supports a wide range of barcode symbologies, including GS1 DataBar, UPC/EAN/JAN, Code 39, EAN128, Code 128, Interleave 25, Matrix 25, CODABAR/NW7, Code 11, MSI/PLESSEY, Code 93, China Postage, and Code 32/Italian Pharmacy codes. This extensive compatibility makes it suitable for retail, inventory, postal, and pharmaceutical applications.
How fast does this barcode scanner capture data?
This scanner features a scan rate of 100 scans per second, allowing for rapid data entry and minimizing delays in processing. The CCD sensor ensures reliable capture even at high speeds, enhancing productivity in busy environments like retail checkouts or warehouse tracking.
What interfaces are available for connecting the AS10-P scanner?
The AS10-P supports keyboard wedge and PS2 interfaces, providing plug-and-play connectivity without requiring additional drivers. These interfaces allow the scanner to emulate a standard keyboard input, making it compatible with most computers, POS terminals, and other host devices that accept keyboard data entry.
Is the Unitech AS10-P scanner easy to set up and use?
Yes, the AS10-P is designed for straightforward setup with its keyboard wedge and PS2 interfaces, which typically require no software installation. Simply connect the scanner to the host device, and it functions as a keyboard input, ready for immediate use in various applications like retail POS or inventory management.
What are the physical dimensions and weight of this scanner?
The scanner measures 7.07 inches in height, 3.19 inches in width, and 2.49 inches in depth, with an approximate weight of 4.23 ounces (119.92 grams). Its compact and lightweight design ensures comfortable handheld use over extended periods, making it ideal for countertop or mobile scanning tasks.
What warranty coverage does the Unitech AS10-P include?
The AS10-P comes with a 1-year limited warranty, providing assurance against defects in materials and workmanship. This warranty supports reliable performance for business applications, giving users confidence in their investment for daily scanning operations.
