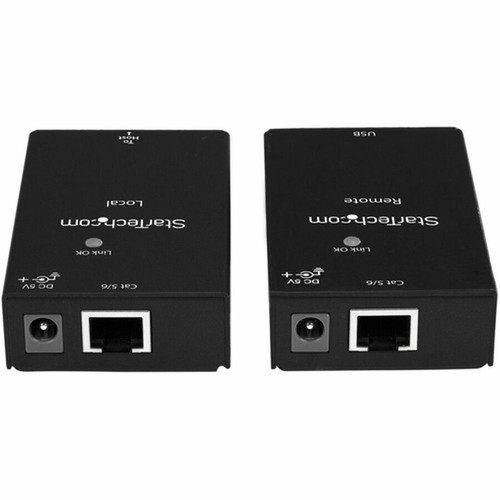

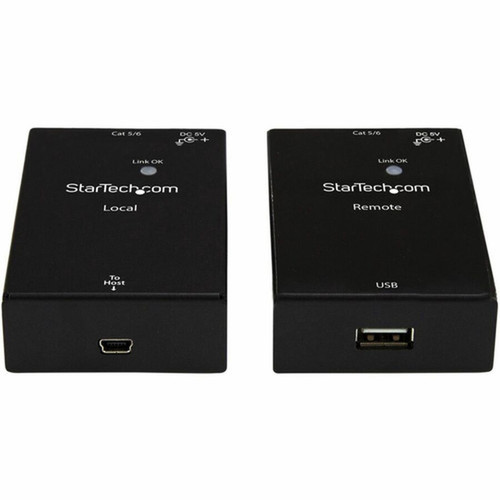

StarTech.com USB 2.0 Extender Kit over Cat5e/Cat6 Cable (RJ45) - Up to 165ft (50m) - USB Port over Ethernet Cable - Powered - 480Mbps (USB2001EXTV)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x USB 2.0 Extender Local Unit
- 1 x USB 2.0 Extender Remote Unit
- 1 x USB 2.0 Cable
- 1 x RJ45 Cable
- 8 x Rubber Feet
- 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick Start Guide
- Use as a mid-point repeater to increase the connection distance of your USB peripheral and to reduce cable clutter
- Perfect for environments where the host computer is in an inaccessible location
- No need to run new wiring, you can extend USB connections between rooms using existing direct, in-wall Cat5 or Cat6 cable
- Local Unit Connectors 1 - USB Mini-B (5 pin) Female
- 1 - RJ-45 Female
- Remote Unit Connectors 1 - USB A (4 pin) Female
- 1 - RJ-45 Female
Maximum Extended Range: 164.04 ft (50000 mm)
Maximum Data Transfer Rate: 60 MB/s
Network (RJ-45): Yes
Number of USB Ports: 1
Color Family: Black
Product Color: Black
Product Material: Steel
Height: 0.90" (22.86 mm)
Width: 2" (50.80 mm)
Length: 3.10" (78.74 mm)
Transmitter Weight (Approximate): 10.70 oz (303.34 g)
Receiver Weight (Approximate): 10.70 oz (303.34 g)
Package Contents:
Additional Information:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- USB 2.0 EXTENDER: Extend 1x USB 2.0 connection up to 165ft (50m) over CAT5/CAT5e/CAT6 ethernet cable with data transfer rates up to 480Mbps; LED monitors connectivity including power & link status
- CONNECT REMOTE USB DEVICES: This high speed USB extender provides a remote USB port, allowing access to devices like kiosks, touch displays, plotters, laser cutters, 3D printers, & web cams
- RUGGED USB EXTENDER: Built with durable metal housing for commercial environments; Incls. USB 2.0 cable (24 in [60 cm]), RJ45 cable (63 in [160 cm]), and rubber feet to prevent accidental movement
- USB EXTENDER KIT: Remote extender (receiver) powered with incl. 10W adapter, providing up to 500mA of power for attached devices; Local extender (transmitter) is USB host bus powered
- PLUG-AND-PLAY: USB devices over this CAT5e/CAT6 adapter extender with driverless installation & compatible w/ Windows, macOS & Linux; Backwards compatible with USB 1.1 devices
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB2001EXTV |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1-Port USB 2.0-Over-Cat5-or-Cat6 Extender Kit - 165 ft. (50 m) |
| Packaged Quantity | 1 Kit |
| Product Type | USB Extender |
| Technical Information | |
| Maximum Extended Range | 164.04 ft (50000 mm) |
| Maximum Data Transfer Rate | 60 MB/s |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Height | 0.90" (22.86 mm) |
| Width | 2" (50.80 mm) |
| Length | 3.10" (78.74 mm) |
| Transmitter Weight (Approximate) | 10.70 oz (303.34 g) |
| Receiver Weight (Approximate) | 10.70 oz (303.34 g) |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
