StarTech.com UVCHDCAP HDMI to USB-C Video Capture Device - 1080p 60fps - USB 3.0 - UVC - External - Silver/Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video capture device utilizes H.264 software encoding to compress video efficiently while maintaining quality, supporting both MPEG-4 and H.264 formats. The HDMI input accepts standard video signals up to 1920x1080 resolution, with a 3.5mm audio line-in port for capturing stereo audio alongside the video feed.
The USB 3.0 interface provides sufficient bandwidth for 1080p60 capture with minimal latency, while backward compatibility ensures operation with USB-C, Thunderbolt 3, Thunderbolt 4, and USB-A ports. HDCP compliance prevents recording of copy-protected content, making it suitable for legitimate production workflows.
Relevant factors for this section include Functions, Maximum Resolution, Video Formats, USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The UVCHDCAP stands out with its driverless UVC implementation, eliminating complex software installation across supported operating systems. This simplifies deployment in mixed-IT environments where consistency and reliability are paramount.
Universal Compatibility
Works seamlessly with Windows DirectShow applications, macOS QuickTime, and Linux video capture software, plus popular streaming platforms like OBS, Zoom, and Microsoft Teams.
- No driver installation required
- Supports Windows 7 through 11
- Mac OS X 10.11+ compatible
- Linux 4.x kernel support
Complete Connectivity Package
Includes both USB-C to USB-B and USB-A to USB-B cables plus an HDMI cable, ensuring immediate connectivity regardless of your host computer's available ports.

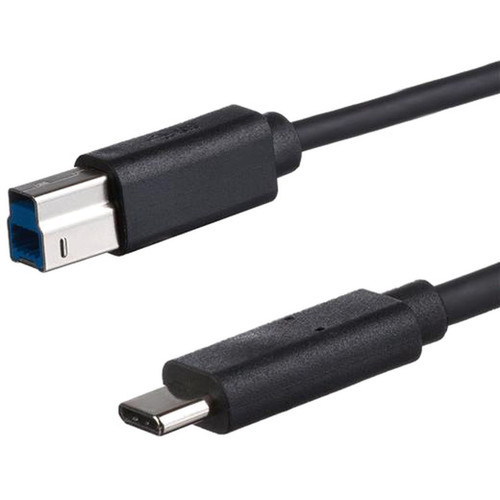

- USB-C to USB-B cable included

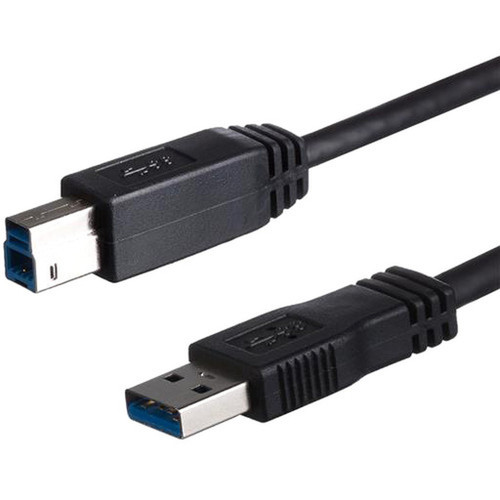

- USB-A to USB-B cable included
- 1m HDMI cable provided
- Ready for immediate use
Deployment / Use Cases
This capture device excels in professional and educational environments where reliable HDMI video capture is essential. Its compact size and bus-powered design make it particularly valuable for mobile production setups that require quick deployment without external power supplies.
Common applications include recording conference room presentations, capturing camera feeds for live streaming to platforms like YouTube or Twitch, documenting laboratory equipment outputs, and creating training materials from HDMI-based sources. The included Stream Catcher software for Windows provides a straightforward interface for basic recording, while compatibility with third-party applications like OBS Studio enables advanced streaming workflows.
Live Streaming Production
Capture HDMI camera feeds or computer outputs for live streaming to platforms supporting RTSP or RTMP protocols, with minimal latency for real-time interaction.
Video Conference Enhancement
Integrate professional video sources into Zoom, Teams, or other conferencing applications to improve presentation quality during remote meetings and webinars.
Physical Profile

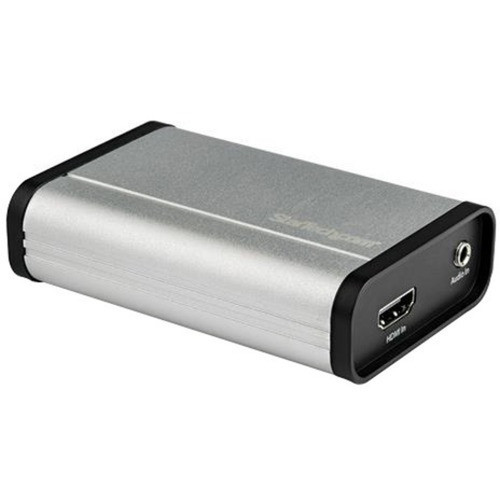

Measuring just 3.60 inches long, 2.40 inches wide, and 0.90 inches tall, the aluminum enclosure provides a durable yet lightweight solution at only 3 ounces. The silver and black finish offers professional aesthetics suitable for visible installation in production environments. The external form factor requires no internal computer slots, making it ideal for laptops and compact desktops where expansion options are limited.
- Width
- 2.40" (60.96 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 3 oz (85.05 g)
- Length
- 3.60" (91.44 mm)
What's in the Box
The package includes everything needed for immediate setup and operation:
Highlights
- Captures 1080p video at 60 frames per second from HDMI sources
- USB 3.0 interface with USB-C and USB-A cable compatibility
- USB Video Class (UVC) for driverless operation on Windows, Mac, and Linux
- Includes 3.5mm audio line-in port for simultaneous audio capture
- Compact aluminum design measuring 3.60" x 2.40" x 0.90" and weighing 3 oz
- Comes with USB-C to USB-B, USB-A to USB-B, and HDMI cables
- HDCP compliant for legitimate production workflows
- Supported by Stream Catcher software for Windows
- Compatible with OBS, Zoom, Teams, and other streaming/conferencing applications
- Two-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | UVCHDCAP |
| Brand Name | StarTech.com |
| Product Name | Video Capturing Device |
| Packaged Quantity | 1 Each |
| Product Type | Video Capturing Device |
| Technical Information | |
| Functions | Video Capturing |
| Maximum Resolution | 1920 x 1080 |
| Video Formats | MPEG-4,H.264 |
| Platform Supported | Android,PC,Linux |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Audio Line In | Yes |
| Software | |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 4.x |
| Physical Characteristics | |
| Product Color | Silver,Black |
| Form Factor | External |
| Height | 0.90" (22.86 mm) |
| Width | 2.40" (60.96 mm) |
| Length | 3.60" (91.44 mm) |
| Weight (Approximate) | 3 oz (85.05 g) |
| Miscellaneous | |
| Package Contents | Video Capturing Device 1 x USB-C To USB-B Cable (1m) 1 x USB-A To USB-B Cable (1m) 1 x HDMI Cable (1m) 1 x Quick-Start Guide |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What resolution and frame rate does this capture device support?
The StarTech.com UVCHDCAP captures video at up to 1920x1080 resolution (1080p) at 60 frames per second. This combination delivers smooth, high-definition video suitable for professional recording, live streaming, and video conferencing applications where motion clarity is important.
Does this device require separate drivers or software installation?
No additional drivers are required for basic functionality. The device implements USB Video Class (UVC) standards, which means Windows 8 and later, macOS 10.11 and later, and Linux 4.x kernels automatically recognize it as a video source. Stream Catcher software is included for Windows users who want a dedicated recording application.
What cables are included with the video capture device?
The package includes three essential cables: a 1-meter USB-C to USB-B cable for modern computers with USB-C ports, a 1-meter USB-A to USB-B cable for traditional USB-A ports, and a 1-meter HDMI cable for connecting your video source. This comprehensive cable selection ensures compatibility with virtually any computer setup.
Can I use this device with streaming software like OBS?
Yes, the UVCHDCAP is fully compatible with popular streaming software including OBS Studio, Streamlabs OBS, and other applications that support UVC devices. It appears as a standard video source within these applications, allowing you to integrate captured HDMI content into your streaming layouts alongside other sources.
What audio connectivity does the capture device provide?
In addition to capturing audio embedded in the HDMI signal, the device includes a 3.5mm stereo audio line-in port. This allows you to connect external audio sources like microphones, mixers, or audio players to capture synchronized audio alongside your HDMI video feed for professional production workflows.
Is this device compatible with Mac computers?
Yes, the capture device is compatible with Mac computers running macOS 10.11 (El Capitan) or later. The UVC implementation ensures plug-and-play functionality without additional drivers. It works with QuickTime and other video applications that support UVC devices, making it suitable for Mac-based production environments.
