Aten VE600A Video Extender - 1x DVI Input to 3x Output - 200 ft Range via Cat 5e - WUXGA 1920 x 1200
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

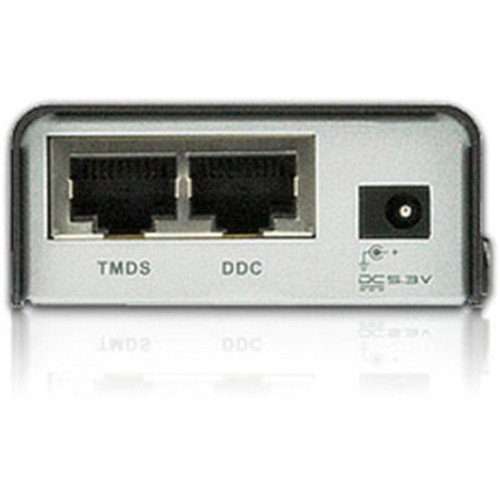

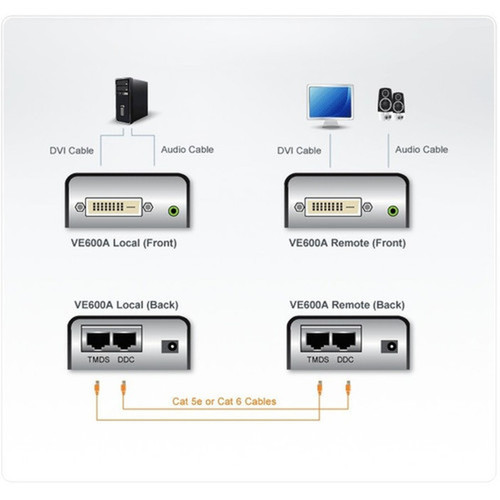

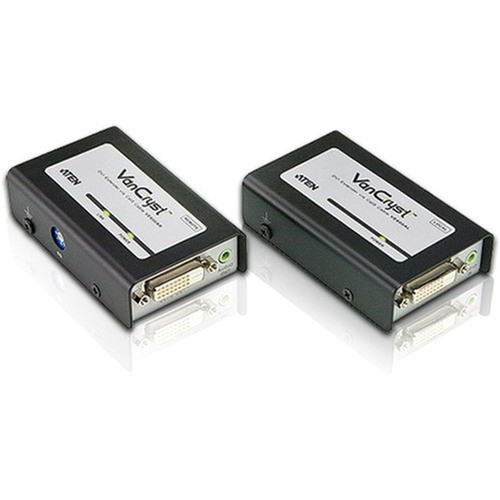

The VE600A operates on wired connectivity, utilizing two RJ-45 network ports to link its transmitter and receiver units over Cat 5e cable. This design simplifies cabling infrastructure compared to bulky DVI cables, reducing cost and installation complexity. The extender is HDCP compliant, ensuring compatibility with protected content sources, and includes audio support for integrated A/V transmission.
Advanced features like adjustable EQ compensation control allow fine-tuning of signal quality over varying cable lengths, minimizing degradation. The system supports widescreen formats and delivers superior video quality, capable of 1080p resolution at 40 meters and 1080i at the full 60-meter range. Its rack-mountable form factor integrates neatly into standard AV racks or server cabinets.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ATEN VE600A stands out for its extended range and multi-display capability, offering a cost-effective alternative to expensive fiber or dedicated DVI solutions. Its use of standard Cat 5e cable reduces infrastructure costs while providing flexibility in layout and future modifications.
Long-Distance Clarity
Transmits high-definition DVI signals up to 200 feet without significant quality loss, ideal for large venues or distributed displays.
- Up to 1920x1200 resolution
- Adjustable EQ compensation
- Supports 1080p and 1080i
Installation Flexibility
Rack-mountable design and simple Cat 5e cabling allow for tidy, professional installations in AV racks or behind equipment.
- Includes rack mount kit
- Uses common network cable
- Compact transmitter size
Deployment / Use Cases
The VE600A is versatile for various professional and commercial settings where video sources need to be separated from displays. Its one-input-to-three-output design supports scenarios like digital signage networks, classroom or conference room projections, and control room monitoring.
In retail environments, it can drive multiple promotional displays from a single media player. For corporate offices, it enables extended desktop setups or presentation feeds across meeting rooms. The extender's HDCP compliance makes it suitable for licensed content playback in hospitality or entertainment venues.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Digital Signage Networks
Distribute advertising or informational content from one source to multiple screens across a store or lobby.
Educational & Training Facilities
Extend instructor workstation displays to student monitors or projectors in labs and classrooms.
What's in the Box
The package includes all necessary components for immediate setup and installation.
Highlights
- Extends DVI signals up to 200 ft (60 m) over Cat 5e cable
- Supports 1 DVI input and 3 output devices for multi-display setups
- Delivers WUXGA resolution up to 1920x1200 with HDCP compliance
- Audio-enabled for integrated video and audio transmission
- Adjustable EQ compensation control for signal quality optimization
- Rack-mountable design with included mounting kit
- Uses standard twisted-pair cable for cost-effective installation
- Supports widescreen formats including 1080p and 1080i
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE600A |
| Brand Name | ATEN |
| Product Model | VE600A |
| Product Name | Video Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 3 |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DVI In | Yes |
| DVI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5e |
| Physical Characteristics | |
| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 2.20" (55.88 mm) |
| Transmitter Weight (Approximate) | 453.6 g |
| Miscellaneous | |
| Package Contents | Video Extender 2 x Power Adapters 1 x Rack Mount Kit 1 x User Guide 2 x Grounding Wire |
FAQ
What is the maximum distance the ATEN VE600A can transmit a DVI signal?
The ATEN VE600A Video Extender supports a maximum operating distance of 200 feet (60 meters) when using Category 5e twisted-pair cable. This range allows flexible placement between source and display devices in large rooms, across floors, or in distributed AV systems without signal degradation.
How many displays can I connect to this video extender?
This extender supports one DVI input device and can output to up to three display devices. It features one DVI output port on the receiver unit, but its design allows daisy-chaining or distribution to multiple screens through additional splitters or switches for multi-monitor setups.
What video resolutions does the VE600A support?
The VE600A supports a maximum video resolution of 1920 x 1200 (WUXGA). It is also compatible with lower resolutions, including 1080p (1920x1080) and 1080i, with optimal performance at 1080p up to 40 meters and 1080i up to the full 60-meter range.
Does this extender require special cabling?
No, it uses standard Category 5e twisted-pair network cable (RJ-45), which is widely available and cost-effective. This eliminates the need for expensive dedicated DVI cables over long distances and simplifies installation using existing network infrastructure or new runs.
Is the ATEN VE600A rack-mountable?
Yes, the VE600A is rack-mountable and includes a rack mount kit in the package. This allows for neat integration into standard 19-inch AV racks or server cabinets, making it suitable for professional installations in control rooms, studios, or IT environments.
Does this video extender support audio transmission?
Yes, the VE600A is audio-enabled, allowing it to transmit both video and audio signals over the same Cat 5e cable. This integrated A/V capability is useful for presentations, digital signage, or entertainment systems where synchronized sound is required.
