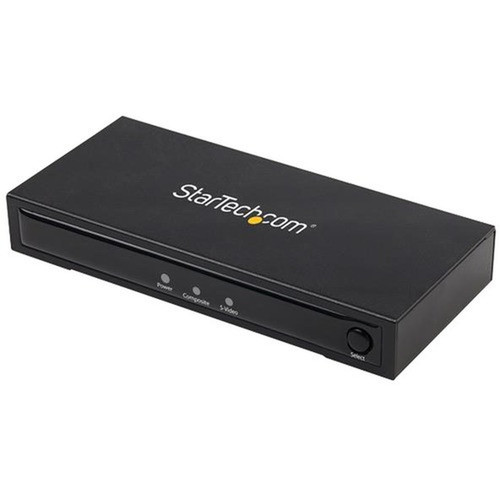

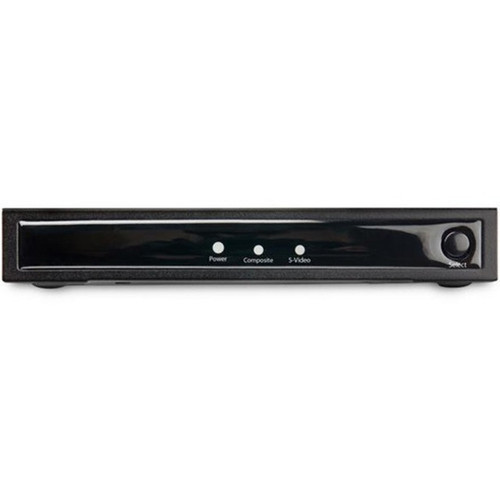

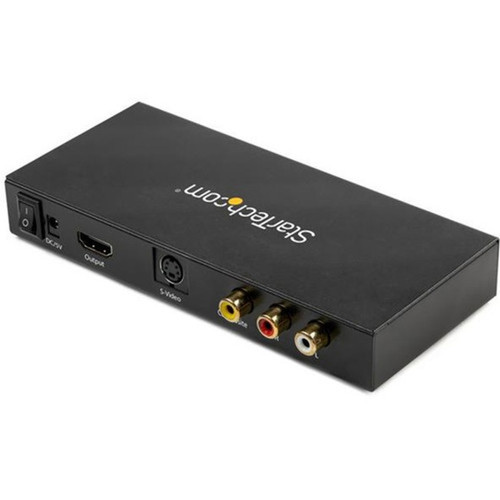

StarTech.com VID2HDCON2 S-Video/Composite to HDMI Converter with Audio - 720p - NTSC/PAL - Analog to HDMI Upscaler
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This converter performs both signal conversion and video scaling, transforming standard-definition NTSC or PAL analog signals into high-definition 720p HDMI output. The pure hardware design ensures compatibility across Windows and macOS systems without driver dependencies.
The unit supports a maximum resolution of 1280 x 720, delivering crisp video upscaling for legacy content. Input flexibility includes both S-Video and composite video connections, while the HDMI output carries both video and audio signals to your display.
Relevant factors for this section include Functions, Video Signal Format, Maximum Resolution, HDMI. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The VID2HDCON2 converter simplifies the transition from legacy video equipment to modern HDMI displays through its plug-and-play operation and intelligent upscaling capabilities.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Legacy Compatibility, Simplified Operation.
Legacy Compatibility
Connect older VCRs, camcorders, gaming consoles, or security systems with S-Video or composite outputs to contemporary monitors, TVs, or projectors.

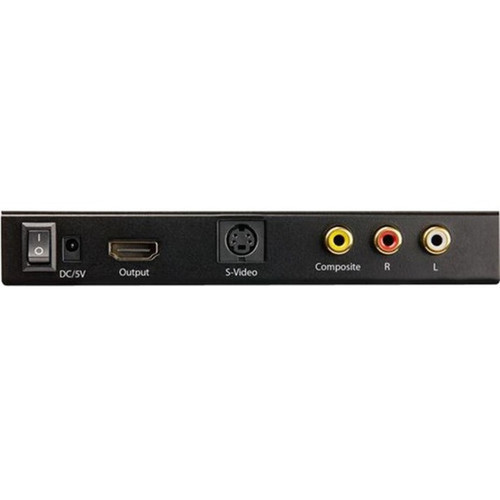

- S-Video Input
- Composite Video Input
- HDMI Output
Simplified Operation
The on-screen display provides intuitive access to configuration settings, while the hardware-only design eliminates software installation headaches.
- On-Screen Display
- No Drivers Needed
- Universal Power Adapter Included
Deployment / Use Cases
This converter serves multiple scenarios where preserving access to legacy video sources meets modern display requirements. Its compact form factor and straightforward connectivity make it suitable for both permanent installations and temporary setups.
Common applications include connecting vintage gaming consoles to modern televisions, integrating older surveillance systems with current monitoring displays, digitizing VHS or camcorder footage, and extending the lifespan of legacy presentation equipment in conference rooms or classrooms.
Relevant factors for this section include Functions, Video Signal Format, Maximum Resolution, HDMI. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Encased in a durable black housing measuring 6.10" long by 3" wide by 0.90" high, the converter occupies minimal desk or rack space. Weighing just 8.85 ounces, it remains portable for field use while maintaining a professional appearance for permanent installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.90" (22.86 mm), 3" (76.20 mm), 8.85 oz (251 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 8.85 oz (251 g)
- Length
- 6.10" (154.94 mm)
What's in the Box
The package includes everything needed for immediate setup and operation.
Highlights
- Converts S-Video or composite analog input to HDMI output
- Upscales video to 720p (1280 x 720) resolution
- Supports both NTSC and PAL video signal formats
- Hardware-based design requires no software installation
- Features on-screen display for easy configuration
- Compatible with Windows and macOS systems
- Compact black chassis measures 6.10" x 3" x 0.90"
- Includes universal power adapter and quick-start guide
- Backed by a 2-year limited warranty
- Complies with RoHS, REACH, and WEEE environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | VID2HDCON2 |
| Brand Name | StarTech.com |
| Product Name | S-Video or Composite to HDMI Converter with Audio - 720p - NTSC and PAL |
| Packaged Quantity | 1 Each |
| Product Type | Signal Converter |
| Technical Information | |
| Functions | Signal Conversion,Video Scaling |
| Video Signal Format | NTSC,PAL |
| Maximum Resolution | 1280 x 720 |
| Screen Mode Supported | HD |
| Platform Supported | PC,Mac |
| Interfaces/Ports | |
| HDMI | Yes |
| S-Video | Yes |
| Composite Video | Yes |
| Software | |
| Operating System Supported | Windows,macOS |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.90" (22.86 mm) |
| Width | 3" (76.20 mm) |
| Length | 6.10" (154.94 mm) |
| Weight (Approximate) | 8.85 oz (251 g) |
| Miscellaneous | |
| Package Contents | S-Video or Composite to HDMI Converter with Audio - 720p - NTSC and PAL 1 x Universal Power Adapter 1 x Quick-Start Guide |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What video inputs does this converter support?
The converter accepts both S-Video and composite video inputs. This dual-input capability provides flexibility for connecting various legacy video sources, including older VCRs, camcorders, gaming consoles, and security system outputs to modern HDMI displays.
What resolution does the converter output?
The converter outputs up to 1280 x 720 resolution (720p). It upscales standard-definition analog signals to this high-definition format, improving visual clarity when displaying legacy content on contemporary monitors, televisions, or projectors.
Does this converter work with both NTSC and PAL video formats?
Yes, the converter supports both NTSC and PAL video signal formats. This international compatibility makes it suitable for use with equipment from different regions, ensuring proper signal processing regardless of the source's geographic origin or broadcast standard.
Is software installation required for this converter?
No software installation is required. The converter uses a pure hardware design that operates independently of system drivers or applications. This plug-and-play functionality ensures immediate compatibility with supported platforms without configuration software or ongoing updates.
What operating systems are compatible with this converter?
The converter is compatible with Windows and macOS operating systems. Since it functions as a hardware device without software dependencies, it works with any system that can output video through S-Video or composite connections and receive HDMI input on the display side.
What is included in the package with the converter?
The package includes the S-Video/Composite to HDMI Converter unit, a universal power adapter, and a quick-start guide. These components provide everything needed for immediate setup and operation, with the power adapter supporting various regional electrical standards for international use.
