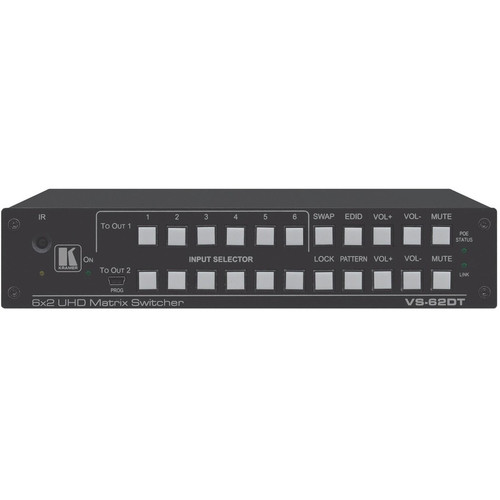

Kramer VS-62DT 6 x 2 HDMI/HDBaseT Matrix Switcher - 4K60 4: 2: 0 - Twisted Pair - PoE - 6 HDMI Inputs - 2 Outputs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VS-62DT operates as an audio/video switchbox with cable-based connectivity technology. It supports up to six input devices and two displays simultaneously, handling graphics modes including 4K UHD and WUXGA. The switcher ensures reliable signal integrity over twisted-pair media, leveraging HDBaseT technology for extended reach without signal degradation.
Interface support includes HDMI in/out, USB connectivity, and two RJ-45 ports for network integration. The device maintains 4:2:0 chroma subsampling at 4K60, balancing high-resolution video with efficient bandwidth usage for smooth performance in demanding AV applications.
This section brings together practical product details such as Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This matrix switcher delivers centralized control over multiple AV sources, reducing cable clutter and streamlining system management. Its long-reach capability via twisted pair allows installations across larger spaces without compromising video quality.
Simplified Installation
PoE support eliminates separate power cables, while twisted-pair media reduces infrastructure costs compared to traditional HDMI extenders.
- Single-cable power and signal
- Uses standard Cat5e/6 cabling
Flexible Routing
Route any of six HDMI sources to either display output independently, enabling dynamic content switching for presentations or digital signage.
- 6x2 matrix switching
- Independent output control
Deployment / Use Cases
The VS-62DT is ideal for commercial AV environments requiring reliable video distribution over distance. Its matrix switching capability supports scenarios where multiple sources need to be shared between displays without constant recabling.
Common applications include conference rooms with multiple presentation laptops, retail digital signage networks, educational facilities with shared display resources, and hospitality venues distributing content to monitors in different areas. The long-reach twisted-pair transmission makes it particularly useful for installations where sources and displays are separated by walls or across rooms.
Corporate Conference Rooms
Switch between laptop inputs from different presenters to a primary display and secondary monitor, with audio/video synchronization maintained.
Digital Signage Control
Manage content from multiple media players across two displays in retail or lobby settings, with centralized switching for scheduled content changes.
Physical Profile
The switcher features a compact chassis measuring 8.45" wide, 6.42" deep, and 1.72" high, with an approximate weight of 1 kg. This slim profile allows for easy integration into AV racks or discreet placement behind displays. The durable construction ensures reliable operation in continuous-use environments, with ventilation designed for stable thermal performance.
- Width
- 8.45" (214.63 mm)
- Depth
- 6.42" (163.07 mm)
- Height
- 1.72" (43.69 mm)
- Weight
- 1 kg
What's in the Box
The package includes the VS-62DT matrix switcher unit and a compatible power supply, providing everything needed for immediate deployment.
Highlights
- 6x2 HDMI/HDBaseT matrix switcher for multiroom AV distribution
- Supports 4K60 4:2:0 video over twisted-pair cabling
- Power over Ethernet (PoE) capability simplifies installation
- Six HDMI inputs and two outputs (HDMI + HDBaseT)
- Compact form factor suitable for rack or desktop deployment
- Long-reach transmission without signal degradation
- Includes USB connectivity for peripheral integration
- Backed by a 7-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VS-62DT |
| Brand Name | Kramer |
| Product Model | VS-62DT |
| Product Name | 6x2 4K60 4:2:0 HDMI/HDBaseT Long-Reach PoE Matrix Switcher |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 6 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 4K UHD,WUXGA |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 6 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Height | 1.72" (43.69 mm) |
| Width | 8.45" (214.63 mm) |
| Depth | 6.42" (163.07 mm) |
| Weight (Approximate) | 1 kg |
| Miscellaneous | |
| Package Contents | 6x2 4K60 4:2:0 HDMI/HDBaseT Long-Reach PoE Matrix Switcher Power Supply |
| Warranty | |
| Limited Warranty | 7 Year |
User Manual
FAQ
How many devices can I connect to this matrix switcher?
The VS-62DT supports up to six input devices via HDMI and connects to two displays simultaneously—one through HDMI output and one through HDBaseT output. This 6x2 configuration allows flexible routing between multiple sources and displays.
What type of cabling is required for installation?
The switcher uses twisted-pair cabling, typically standard Cat5e or Cat6 Ethernet cables, for signal transmission. This media type supports long-reach connections between the switcher and displays, reducing infrastructure costs compared to dedicated HDMI extenders.
Does the VS-62DT support Power over Ethernet?
Yes, the switcher includes PoE capability, allowing both power and signal to be delivered through a single twisted-pair cable. This simplifies installation by eliminating the need for separate power cables at the display end, particularly useful in ceiling-mounted or hard-to-reach locations.
What are the physical dimensions of the switcher?
The unit measures 8.45" wide, 6.42" deep, and 1.72" high, with an approximate weight of 1 kg. This compact form factor makes it suitable for integration into standard AV racks or discreet placement in equipment cabinets without occupying excessive space.
What warranty coverage is provided with this product?
Kramer backs the VS-62DT with a 7-year limited warranty, offering long-term protection for commercial AV installations. This warranty reflects the product's durability and reliability in continuous-use environments such as conference rooms or digital signage networks.
