Aten VS92A VGA Switchbox - 1 Computer to 2 Monitors - 1920 x 1440 @ 60Hz - 350 MHz Bandwidth
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VS92A supports VGA and SVGA graphics modes with compatibility for XGA, UXGA, and WUXGA monitors, offering flexibility across various display technologies. Port 1 features DDC, DDC2, and DDC2B compatibility for automatic monitor configuration, simplifying setup and ensuring optimal display settings.
Long-distance transmission up to 30 meters makes this switchbox suitable for installations where the computer and monitors are separated, such as in conference rooms or digital signage applications. The device operates with an external DC 9V power adapter, providing stable performance without drawing power from the host computer.
Relevant factors for this section include Number of Input Devices Supported, Device Supported, Number of Displays Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The all-metal construction not only enhances durability but also provides electromagnetic shielding for cleaner signal transmission in electrically noisy environments. This makes the VS92A reliable for continuous operation in commercial and industrial settings where equipment longevity is essential.
Superior Video Quality
Delivers 1920x1440 resolution at 60Hz with minimal signal degradation, ensuring crisp text and detailed images for both productivity and multimedia applications.
- 350 MHz bandwidth reduces signal loss
- Maintains color accuracy across distance
Expansion Capability
Cascadable design allows connection of multiple VS92A units to support complex multi-monitor configurations without compromising video performance.
- Connect up to 3 levels
- Support for 8 total video signals
Deployment / Use Cases
The VS92A is particularly effective in retail environments for digital signage, where one media player can drive two separate displays with identical content. Educational institutions benefit from using these switchboxes in computer labs or lecture halls to mirror instructor screens to student workstations.
For IT administrators, the cascading capability allows building cost-effective video distribution systems without investing in more expensive matrix switches. The compact footprint (5.11" x 2.95" x 0.78") makes installation straightforward on desks, shelves, or mounted equipment racks.
Office Workstations
Duplicate a single computer's display to two monitors for training sessions, collaborative work, or presentations where multiple viewers need to see the same content simultaneously.
Control Room Monitoring
Extend video signals up to 30 meters to display critical information on multiple screens in security centers, manufacturing floors, or network operations centers.
Physical Profile
With dimensions of 5.11 inches wide, 2.95 inches deep, and 0.78 inches high (129.79 mm x 74.93 mm x 19.81 mm), the VS92A occupies minimal desk space while providing robust connectivity. The 317.5-gram weight ensures stability without being cumbersome, and the all-metal casing offers professional aesthetics alongside practical durability for daily use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.78" (19.81 mm), 5.11" (129.79 mm), 2.95" (74.93 mm), 317.5 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.11" (129.79 mm)
- Depth
- 2.95" (74.93 mm)
- Height
- 0.78" (19.81 mm)
- Weight
- 317.5 g
What's in the Box
The package includes everything needed for immediate setup and operation.
Highlights

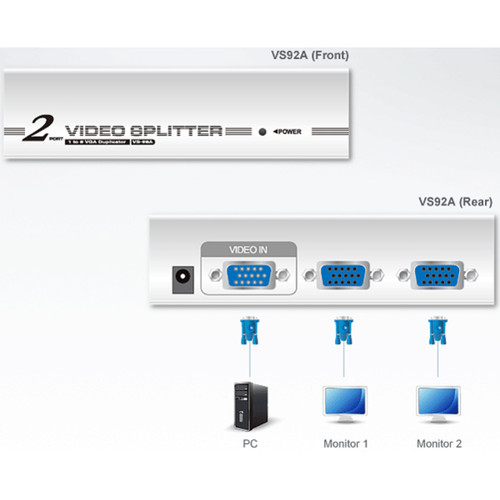

- Connects one computer to two monitors simultaneously
- Supports resolutions up to 1920x1440 at 60Hz refresh rate
- 350 MHz bandwidth ensures high-quality video transmission
- Cascadable to three levels for up to eight video signals
- Transmits video signals up to 30 meters distance

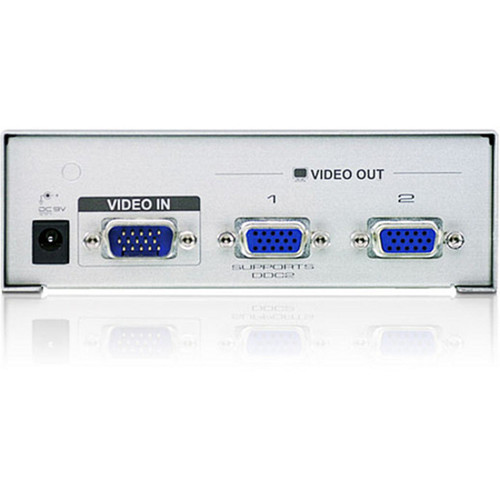

- DDC, DDC2, and DDC2B compatible on Port 1
- Works with VGA, SVGA, XGA, UXGA, and WUXGA monitors
- All-metal casing for durability and heat dissipation
Specifications
| Specifications | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VS92A |
| Brand Name | ATEN |
| Product Model | VS92A |
| Product Name | VS92A VGA Switchbox |
| Product Type | Video Switchbox |
| Technical Information | |
| Number of Input Devices Supported | 1 |
| Device Supported | Computer |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | VGA,SVGA |
| Maximum Video Resolution | 1920 x 1440 |
| Physical Characteristics | |
| Height | 0.78" (19.81 mm) |
| Width | 5.11" (129.79 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 317.5 g |
| Miscellaneous | |
| Package Contents | 1 x VS-92A 1 x DC 9V Power Adapter 1 x User Manual |
| Warranty | |
| Additional Warranty Information | IN NO EVENT SHALL THE DIRECT VENDOR LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID FOR THE PRODUCT. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose. The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or update. For further inquiries, please contact your direct vendor. |
User Manual
FAQ
What is the maximum resolution supported by the Aten VS92A?
The VS92A supports a maximum video resolution of 1920 x 1440 pixels at a 60Hz refresh rate. This resolution provides sharp detail for office applications, CAD work, and general computing tasks while maintaining compatibility with various monitor technologies including VGA and SVGA displays.
How many monitors can I connect to a single VS92A unit?
Each VS92A switchbox supports two monitors from a single computer input. The device duplicates the video signal to both displays simultaneously, making it ideal for presentations, training environments, or any situation where the same content needs to appear on multiple screens.
Can I connect multiple VS92A units together for more displays?
Yes, the VS92A is cascadable up to three levels, allowing you to connect multiple units together to support up to eight total video signals. This expansion capability enables more complex multi-monitor setups without requiring additional computer hardware or more expensive switching solutions.
What is the maximum cable distance for video transmission?
The VS92A supports video transmission up to 30 meters (approximately 98 feet) when using appropriate quality VGA cables. This extended distance capability makes it suitable for installations where computers and displays are separated, such as in conference rooms, classrooms, or retail environments.
Does the VS92A require external power?
Yes, the switchbox operates using the included DC 9V power adapter. This external power source ensures stable performance without drawing power from the host computer, maintaining consistent video quality even when driving two monitors at higher resolutions.
What types of monitors are compatible with this switchbox?
The VS92A is compatible with VGA, SVGA, XGA, UXGA, and WUXGA monitors, as well as multisync displays. Port 1 supports DDC, DDC2, and DDC2B protocols for automatic monitor configuration, ensuring optimal display settings across different monitor models and manufacturers.
