ViewZ VZ-AM02-A VESA Wall Mount - Black - 9" to 32" Screen Support - 44. 09 lb Capacity - Articulating with 360° Rotation
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount delivers precise mechanical performance with a robust steel frame that ensures long-term stability. The articulation system allows smooth adjustment across multiple axes, enabling users to position displays exactly where needed for ergonomic viewing or multi-screen arrangements.

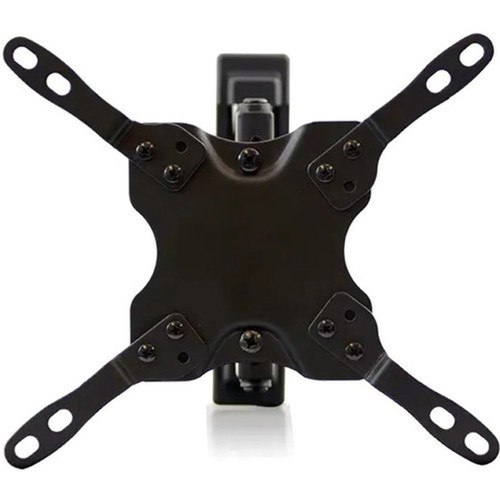

The mount supports VESA patterns including 75x75, 100x100, 200x100, and 200x200 mm, covering common mounting standards for monitors and small-format displays. Its compact footprint of 9 inches wide by 14 inches deep minimizes wall space usage while providing a secure anchor point.
This section brings together practical product details such as Device Supported, Maximum Load Capacity, Minimum Screen Size Supported, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The VZ-AM02-A combines high load capacity with extensive adjustability, making it suitable for dynamic display setups where screen positioning frequently changes. Its 360-degree rotation and wide tilt range allow displays to be oriented vertically or horizontally, ideal for video walls or control room applications.
Full Motion Flexibility
Achieve perfect viewing angles with 360° rotation, -12° to +5° tilt, and +/- 90° swivel, enabling portrait or landscape orientation and reducing glare.
- 360° continuous rotation
- Tilt for glare reduction
- Swivel for multi-user viewing
Broad Compatibility
Supports displays from 9" to 32" with VESA patterns up to 200x200 mm, compatible with ViewZ monitors like the VZ-27RTHL and VZ-32RTHL series.
- Wide screen size range
- Multiple VESA patterns
- ViewZ monitor tested
Deployment / Use Cases
This mount is designed for environments where display positioning impacts operational efficiency and viewer comfort. Its robust construction and adjustment capabilities make it a reliable choice for mounting displays in spaces that require frequent reconfiguration or precise alignment.
In retail or hospitality settings, the mount enables displays to be angled toward customers or adjusted for seasonal promotions. For security and surveillance operations, it allows monitors to be tilted and swiveled for optimal viewing by multiple operators, enhancing situational awareness.
Video Wall Installation
Use multiple VZ-AM02-A mounts to create seamless video wall arrays, with each display independently adjustable to correct alignment and maintain a uniform appearance.
Surveillance Monitoring
Mount surveillance monitors in control rooms with tilt and swivel adjustments to reduce operator neck strain and improve visibility across multiple camera feeds.
Physical Profile

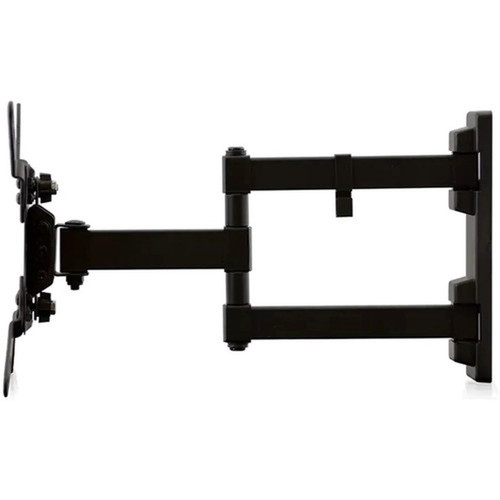

The mount features a low-profile design that keeps displays close to the wall when not articulated, saving space in tight installations. Its black steel finish blends discreetly with most office or commercial interiors, while the 4.50-pound weight ensures it remains manageable during installation without compromising strength.
- Width
- 9" (228.60 mm)
- Depth
- 14" (355.60 mm)
- Height
- 8.40" (213.36 mm)
- Weight
- 4.50 lb (2040 g)
Highlights
- Supports displays from 9 inches to 32 inches in size
- Holds up to 44.09 pounds for secure mounting of heavier screens
- 360-degree rotation allows full display orientation flexibility
- Adjustable tilt from -12° to +5° for glare reduction
- +/- 90-degree swivel for multi-angle viewing
- Cable management system keeps wires organized and hidden
- Compatible with VESA patterns 75x75, 100x100, 200x100, and 200x200 mm
- Durable steel construction with a sleek black finish
- Compact dimensions: 8.40" H x 9" W x 14" D
- Backed by a 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | ViewZ |
| Manufacturer Part Number | VZ-AM02-A |
| Brand Name | ViewZ |
| Product Model | VZ-AM02-A |
| Product Name | VESA Wall Mount |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Video Wall,Surveillance Equipment,Flat Panel Display |
| Maximum Load Capacity | 44.09 lb (20000 g) |
| Minimum Screen Size Supported | 9" (228.60 mm) |
| Maximum Screen Size Supported | 32" (812.80 mm) |
| Features | 360° Rotation,Adjustable Tilt,Cable Management,-12° to 5° Tilt,+/- 90° Swivel,Articulating |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Steel |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75,100 x 100,200 x 100,200 x 200 |
| Height | 8.40" (213.36 mm) |
| Width | 9" (228.60 mm) |
| Depth | 14" (355.60 mm) |
| Weight (Approximate) | 4.50 lb (2040 g) |
| Miscellaneous | |
| Application/Usage | Wall |
| Compatibility | ViewZ Monitors : VZ-27RTHL VZ-PVM-13W3/B3 VZ-PVM-Z3W3/B3 VZ-32RTHL VZ-PVM-14W3/B3 VZ-PVM-Z4W3/B3 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What screen sizes does the ViewZ VZ-AM02-A wall mount support?
The VZ-AM02-A supports flat-panel displays ranging from 9 inches (228.60 mm) to 32 inches (812.80 mm) diagonally. This covers a broad spectrum of monitors commonly used in video walls, surveillance setups, and general office displays, ensuring compatibility with small to medium-sized screens.
How much weight can this wall mount hold?
This mount has a maximum load capacity of 44.09 pounds (20,000 grams). It is engineered with steel construction to securely support displays within this weight range, including those with additional enclosures or accessories, making it suitable for robust commercial applications.
Is the VZ-AM02-A compatible with VESA mounting standards?
Yes, the mount is VESA compatible and supports multiple patterns: 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, and 200 x 200 mm. This wide range ensures it works with most displays that adhere to these common VESA standards, simplifying installation and integration.
What adjustment features does this wall mount offer?
The mount provides full 360-degree rotation, tilt adjustment from -12 degrees to +5 degrees, and +/- 90-degree swivel. These articulating features allow precise positioning to reduce glare, accommodate multiple viewers, and enable portrait or landscape orientation for flexible display setups.
Which ViewZ monitors are compatible with this mount?
The mount is compatible with specific ViewZ monitor models including VZ-27RTHL, VZ-32RTHL, VZ-PVM-13W3/B3, VZ-PVM-14W3/B3, VZ-PVM-Z3W3/B3, and VZ-PVM-Z4W3/B3. It is designed to meet the mounting requirements of these displays, though it also works with other brands supporting the same VESA patterns.
What is the warranty coverage for the ViewZ VZ-AM02-A wall mount?
The VZ-AM02-A comes with a 3-year limited warranty from ViewZ. This warranty covers defects in materials and workmanship under normal use, providing assurance of durability and reliability for professional installations over an extended period.
