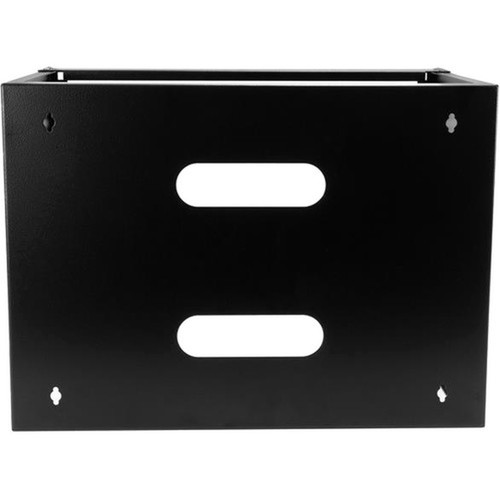

StarTech.com 8U Wall Mount Rack, 14in Deep, 19 inch Wall Mount Network Rack, Wall Mounting Patch Panel Bracket for Switch/IT Equipment (WALLMOUNT8)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x Wall-Mount Bracket
- 24 x M5 Cage Nuts
- 24 x M5 Screws
- 1 x M6 K-Nut
- 6 x Wood Screws
- 1 x User Manual
Application/Usage: Patch Panel,LAN Switch
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Steel
Maximum Weight Capacity: 80.20 lb (36378.11 g)
Height: 14.30" (363.22 mm)
Width: 16" (406.40 mm)
Length: 13.70" (347.98 mm)
Rack Height: 8U
Rack Width: 17.70" (449.58 mm)
Rack Depth: 12" (304.80 mm)
Weight (Approximate): 17.86 lb (8100 g)
Package Contents:
Assembly Required: No
Country of Origin: Canada
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: Lifetime
- Improve efficiency in your office or server room by mounting shallow equipment to the wall
- Sturdy installation of mission-critical equipment, with a solid steel design
- Hassle-free setup with wall mounting holes spaced 16 in. apart, matching standard dry-wall framework
- Cage nuts and screws included
- Rear access panel for cable management
- 8U wall-mount design
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | WALLMOUNT8 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 8U |
| Packaged Quantity | 1 Each |
| Product Type | Rack Mount Bracket |
| Technical Information | |
| Application/Usage | Patch Panel,LAN Switch |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 80.20 lb (36378.11 g) |
| Height | 14.30" (363.22 mm) |
| Width | 16" (406.40 mm) |
| Length | 13.70" (347.98 mm) |
| Rack Height | 8U |
| Rack Width | 17.70" (449.58 mm) |
| Rack Depth | 12" (304.80 mm) |
| Weight (Approximate) | 17.86 lb (8100 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | Canada |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
