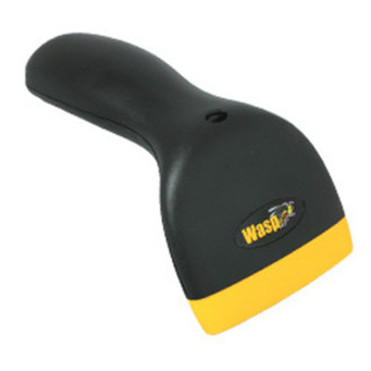

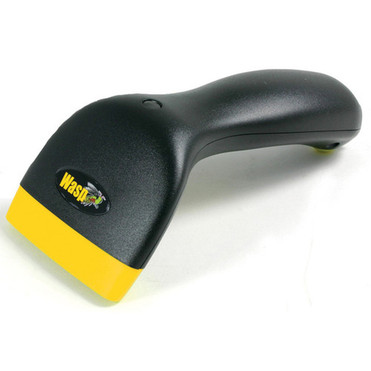

WCS3900 CCD Barcode Scanner (PS2) - Wired - CCD (633808091002)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Codabar, Code 3 of 9 (Code 39), Code 3 of 9 Full ASCII, Code 11, Code 32, Code 93, Code 128 (including UCC/EAN 128), EAN/JAN-8 (plus supplements), EAN/JAN-13 (plus supplements), Industrial 2 of 5 (25), Interleaved 2 of 5, ISBN, Matrix 25, MSI Plessey, UPC-A (plus supplements), UPC-E (plus supplements), China Post Code, RSS14, Telepen
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D:
Light Source: LED
Image Sensor Type: CCD,Imager
Scan Rate: 45 scan/s
Scan Pattern: Linear
Scanning Distance: 1" (25.40 mm)
Features: Ergonomic Design
Host Interface: PS2
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 20% to 80%
Form Factor: Hands-free
Color Family: Dual Color
Product Color: Black,Yellow
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Height: 1.06" (26.92 mm)
Width: 3.62" (91.95 mm)
Length: 7.40" (187.96 mm)
Weight (Approximate): 4.41 oz (125 g)
Application/Usage: Retail
Platform Supported: PC
Country of Origin: Taiwan
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 45 scan/s
- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633808091002 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WCS3900 |
| Product Name | WCS3900 CCD Barcode Scanner (PS2) |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
|
| Light Source | LED |
| Image Sensor Type | CCD,Imager |
| Scan Rate | 45 scan/s |
| Scan Pattern | Linear |
| Scanning Distance | 1" (25.40 mm) |
| Features | Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | PS2 |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 80% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Height | 1.06" (26.92 mm) |
| Width | 3.62" (91.95 mm) |
| Length | 7.40" (187.96 mm) |
| Weight (Approximate) | 4.41 oz (125 g) |
| Miscellaneous | |
| Application/Usage | Retail |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | PS2 Cable for WCS3900, WLR8950 Barcode Scanners - mini-DIN (PS/2) Male - 2.44m |
| SKU | 633808121228 |
| Sale Price | $37.95 |
| Product | WPL305 Barcode Printer - Monochrome - 5 in/s Mono - 203 dpi - USB, Serial, Parallel |
| SKU | 633808402006 |
| Sale Price | $727.95 |
| Product | WaspProtect Extended Service Plan for WCS3900 - Service Depot - Maintenance - Parts & Labor - Physical |
| SKU | 633808600013 |
| Sale Price | $23.95 |
| Product | WCS3900 Barcode Scanner Stand - For Barcode Scanner |
| SKU | 633808091057 |
| Sale Price | $24.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
