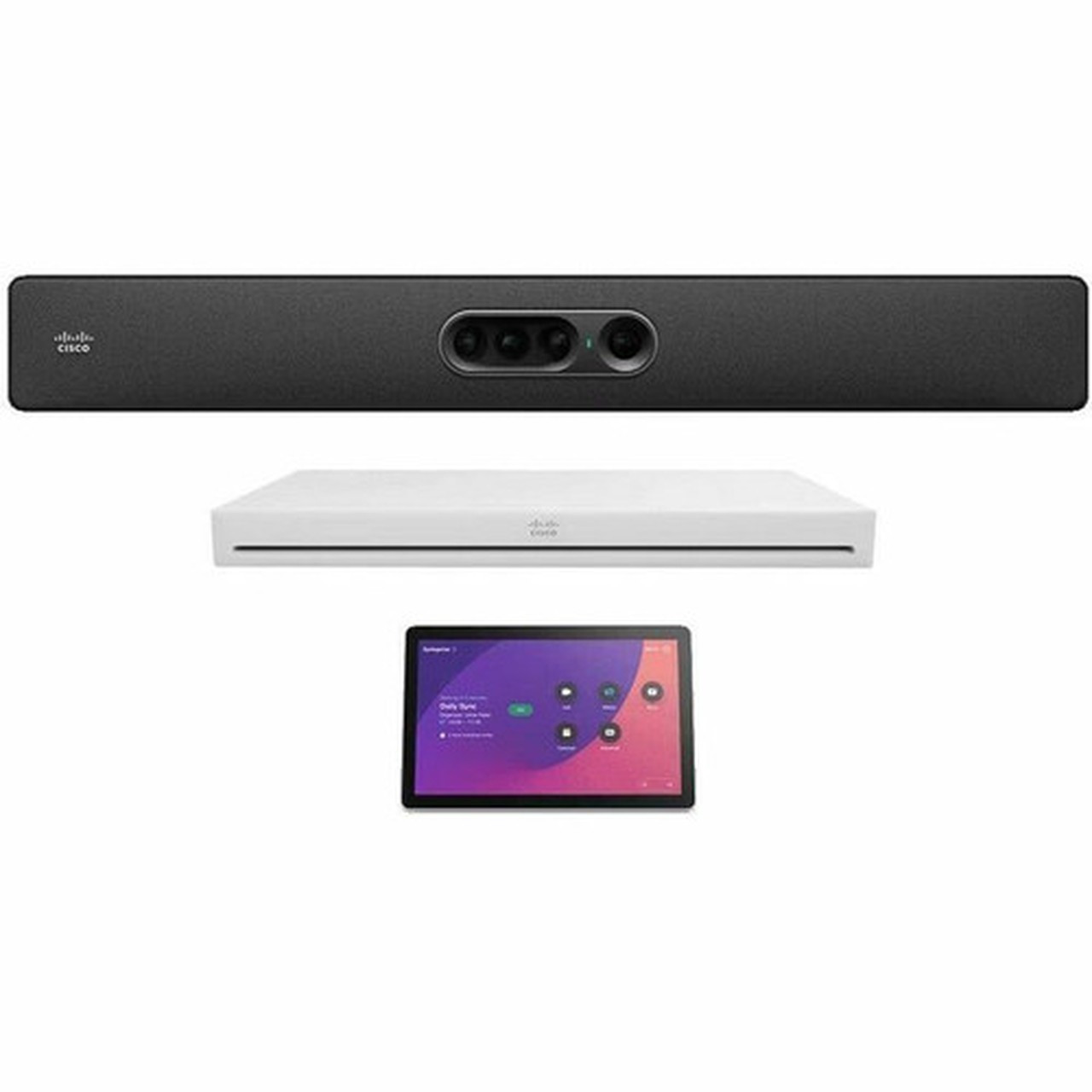

Webex CS-KIT-EQ-C-K9 Room Kit EQ Video Conferencing System - 4 x 20MP Cameras - 4K Content - Gigabit Ethernet - Wall/Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Room Kit EQ features a quad-camera array with 20-megapixel CMOS sensors, capturing detailed video at Full HD resolution for live conferencing. For content sharing, the system supports 4K UHD resolution at 3840 x 2160, ensuring presentations and documents appear crisp and clear.
Audio performance is enhanced through internal speakers and microphones with support for multiple encoding standards including G.711, G.722, and Opus. Echo cancellation technology eliminates feedback, while ultrasound capabilities assist with room calibration.
Relevant factors for this section include ITU-T Recommendation, Features, Total Number of Cameras, Camera Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This conferencing system stands out with its integrated quad-camera design, eliminating the need for separate camera purchases and calibration. The 20-megapixel sensors provide exceptional image clarity, while the 4K content sharing capability ensures professional-grade presentation quality.
Enterprise-Grade Connectivity
Five Gigabit Ethernet ports provide ample network connections for the system and additional room devices, while three HDMI inputs and outputs handle multiple display and source configurations.
- 5 x RJ-45 ports
- 3 x HDMI In
- 3 x HDMI Out
- USB connectivity
Advanced Audio Processing
Built-in echo cancellation and support for six audio codecs ensure clear voice transmission regardless of room acoustics or network conditions.
- Echo cancellation
- Multiple codec support
- Internal microphone array
Deployment / Use Cases
The Room Kit EQ is optimized for medium to large meeting spaces where reliable video conferencing is essential. Its wall-mountable and rack-mountable design provides installation flexibility for conference rooms, boardrooms, and training facilities.
The system excels in environments requiring both participant video and high-quality content sharing. Educational institutions can use it for remote learning sessions, while corporate offices benefit from its boardroom-ready capabilities for executive meetings and client presentations.
Relevant factors for this section include ITU-T Recommendation, Features, Total Number of Cameras, Camera Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Boardroom Implementation
Ideal for executive meeting rooms where multiple camera angles and 4K content sharing enhance presentation quality and remote participant engagement.
Training Room Setup
Suited for corporate training facilities where instructors need to share detailed content while maintaining clear video of participants for interactive sessions.
Physical Profile
The system maintains a compact footprint measuring 18.6" wide by 8" deep, with a low 1.7" height profile that integrates discreetly into room environments. The 5.1-pound weight facilitates straightforward wall or rack mounting without requiring specialized structural support.
Dual mounting options provide installation flexibility—wall mounting keeps the system out of the way in conference rooms, while rack mounting integrates neatly with existing AV equipment in dedicated media closets or equipment rooms.
- Width
- 18.60" (472.44 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 5.10 lb (2313.32 g)
What's in the Box
The package includes all essential components for immediate deployment:
Package contents include Cisco CodecEQ CiscoQuadCamera(CarbonBlack), Cisco CodecEQ. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Quad-camera array with 20-megapixel resolution for detailed participant video
- 4K UHD content sharing at 3840 x 2160 resolution for crisp presentations
- Full HD live video at 1920 x 1080 with 60 fps smooth motion
- Five Gigabit Ethernet ports for robust network connectivity
- Triple HDMI inputs and outputs for flexible display configurations
- RoomOS 11.1.2 operating system with Webex integration
- Wall-mountable and rack-mountable installation options
- Advanced audio processing with echo cancellation and multiple codec support
- H.323 and SIP protocol compatibility for broad platform support
- Environmental compliance with RoHS and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CS-KIT-EQ-C-K9 |
| Brand Name | Webex |
| Product Line | Webex Room |
| Product Name | Room Kit EQ |
| Product Type | Video Conference Equipment |
| Technical Information | |
| ITU-T Recommendation | H.323,SIP,H.460.18/19,H.235v3,H.239 |
| Features | Echo Cancellation,Kensington Lock,Ultrasound Technology,Dual Stream |
| Camera | |
| Total Number of Cameras | 4 |
| Camera Resolution | 20 Megapixel |
| Image Sensor Size | 1/1.7 |
| Image Sensor Type | CMOS |
| Video | |
| Graphics Modes (Live) | Full HD |
| Graphics Modes (Content) | 4K UHD |
| Maximum Video Resolution (Live) | 1920 x 1080 |
| Maximum Video Resolution (Content) | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Video Encoding | H.263,H.264,H.265 |
| Audio | |
| Speaker Form Factor | Internal |
| Microphone Form Factor | Internal |
| Audio Encoding | G.711,G.722,G.729,G.722.1,AAC-LD,Opus |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 3 |
| Number of Audio Line In | 1 |
| Number of Audio Line Out | 1 |
| Operating System | |
| Operating System Supported | RoomOS 11.1.2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 18.60" (472.44 mm) |
| Depth | 8" (203.20 mm) |
| Weight (Approximate) | 5.10 lb (2313.32 g) |
| Miscellaneous | |
| Package Contents | Cisco CodecEQ CiscoQuadCamera(CarbonBlack) |
| Application/Usage | Video Conferencing,Boardroom,Meeting Room,Presentation |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 90 Day |
User Manual
FAQ
How many cameras does the Webex Room Kit EQ include?
The system includes a quad-camera array with four separate 20-megapixel cameras. This multi-camera setup provides comprehensive room coverage and allows for different viewing angles during conferences, eliminating the need for additional camera purchases.
What video resolutions does this conferencing system support?
For live participant video, the system captures Full HD at 1920 x 1080 resolution. For content sharing such as presentations or documents, it supports 4K UHD at 3840 x 2160 resolution. Both operate at up to 60 frames per second for smooth motion.
Can the Room Kit EQ be mounted in different configurations?
Yes, the system offers both wall-mountable and rack-mountable installation options. The compact dimensions of 18.6" wide by 8" deep by 1.7" high allow for discreet placement in conference rooms or integration with standard rack equipment in media closets.
What audio features are included in this video conferencing system?
The system features internal speakers and microphones with advanced audio processing. It includes echo cancellation technology to prevent feedback and supports multiple audio encoding standards including G.711, G.722, G.729, G.722.1, AAC-LD, and Opus for compatibility across different platforms.
What connectivity options does the Room Kit EQ provide?
The system offers comprehensive connectivity with five Gigabit Ethernet ports, three HDMI inputs and three HDMI outputs, audio line in/out connections, and USB ports. This allows connection to displays, audio systems, network infrastructure, and peripheral devices simultaneously.
What operating system does this conferencing system use?
The Room Kit EQ runs RoomOS 11.1.2, Cisco's dedicated operating system for collaboration devices. This provides native integration with Webex meetings and supports standard conferencing protocols including H.323 and SIP for compatibility with other video systems.
