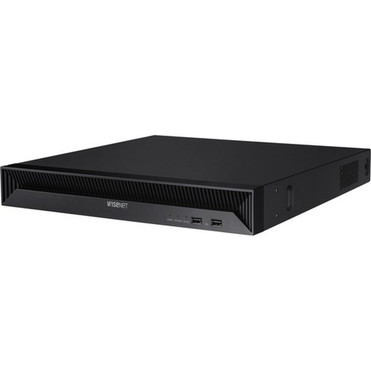

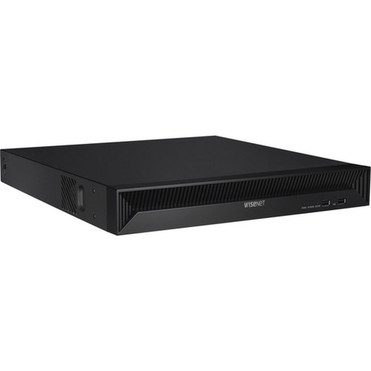

Wisenet QRN-1630S-12TB 16-Channel PoE NVR with 12 TB HDD - 8MP Recording - HDMI - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR supports 16 channels of simultaneous video input, making it suitable for multi-camera installations in retail, office, or light industrial environments. The 960 fps maximum frame rate ensures smooth playback even when reviewing footage from multiple cameras at once.
Connectivity includes Ethernet for network integration, HDMI for local monitoring, and USB ports for peripheral connections. The system supports remote management, allowing administrators to configure settings and view live feeds from any network-connected device.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, HD Recording, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The QRN-1630S-12TB combines substantial channel capacity with generous installed storage, reducing the need for immediate expansion in growing surveillance systems. Its support for modern video formats like H.265 maximizes storage efficiency without compromising image clarity.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Capacity Recording, Flexible Monitoring.
High-Capacity Recording
With 12 TB of pre-installed storage, this NVR can archive weeks of continuous 8MP footage from multiple cameras, minimizing maintenance interventions.
- 12 TB HDD included
- Supports H.265 compression
- HD recording capability
Flexible Monitoring
HDMI output enables local display connectivity, while remote management features provide access to live feeds and configuration from off-site locations.
- HDMI video output
- Remote management enabled
- Ethernet network ready
Deployment / Use Cases
This 16-channel NVR is ideal for small business security systems, educational facilities, or multi-unit residential properties requiring centralized video management. The PoE capability simplifies installation by delivering both power and data over standard Ethernet cables to compatible cameras.
Deployments benefit from the 8MP resolution support, which works with high-definition cameras to capture license plates, facial details, or other critical identifiers. The system's 960 fps aggregate frame rate ensures smooth video when monitoring high-activity areas like entrances, parking lots, or cash handling stations.
Retail Security
Monitor sales floors, stock rooms, and entry points with multiple cameras while maintaining detailed 8MP footage for loss prevention investigations.
Office Surveillance
Secure lobbies, corridors, and sensitive areas with centralized recording that supports remote access for management teams.
Physical Profile
The NVR features a compact 2U form factor with dimensions of 14.57 inches wide, 12.60 inches deep, and 2 inches high. This design allows for standard rack mounting in server cabinets or can be placed on a shelf in equipment rooms. The 2.87 kg weight makes it manageable for installation in various environments without requiring reinforced shelving.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2" (50.70 mm), 14.57" (370 mm), 12.60" (320 mm), 2.87 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.57" (370 mm)
- Depth
- 12.60" (320 mm)
- Height
- 2" (50.70 mm)
- Weight
- 2.87 kg
Highlights
- 16-channel PoE NVR with 12 TB pre-installed hard drive
- Supports cameras up to 8MP resolution for detailed surveillance footage
- Records in H.265, H.264, and Motion JPEG video formats
- 960 fps maximum frame rate for smooth multi-camera playback
- HDMI output for local monitoring display connectivity
- Remote management capability for off-site configuration and viewing
- USB ports for peripheral connections and data transfer
- 200 W power consumption with wired Ethernet connectivity
- Compact 2U form factor suitable for rack mounting
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QRN-1630S-12TB |
| Brand Name | Wisenet |
| Product Model | QRN-1630S |
| Product Name | 16 CH PoE NVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 12 TB |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 960 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 200 W |
| Physical Characteristics | |
| Height | 2" (50.70 mm) |
| Width | 14.57" (370 mm) |
| Depth | 12.60" (320 mm) |
| NVR Weight | 2.87 kg |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many cameras can I connect to this NVR?
The Wisenet QRN-1630S-12TB supports up to 16 cameras simultaneously. This channel count makes it suitable for small-to-medium surveillance installations covering multiple areas like entrances, corridors, parking lots, or retail floors with comprehensive camera coverage.
What is the maximum resolution supported by this recorder?
This NVR supports cameras with up to 8MP resolution. This high-definition capability captures detailed footage essential for identifying faces, license plates, or other critical details in security monitoring scenarios, providing clearer evidence than lower-resolution systems.
How much storage capacity does this NVR include?
The unit comes with a 12 TB hard drive pre-installed. This substantial storage allows for extended recording periods without immediate expansion needs, especially when using efficient compression formats like H.265 that optimize storage usage while maintaining video quality.
Does this NVR support remote viewing and management?
Yes, the NVR includes remote management capabilities. You can access live feeds, review recorded footage, and configure system settings from any network-connected device, providing flexibility for security personnel to monitor locations without being physically present at the recorder.
What video formats does this recorder support?
The NVR records in H.265, H.264, and Motion JPEG formats. H.265 offers advanced compression for efficient storage usage, H.264 provides broad compatibility with various viewing applications, and Motion JPEG supports specific forensic analysis requirements where individual frame quality is paramount.
What are the physical dimensions and mounting options?
The NVR measures 14.57 inches wide, 12.60 inches deep, and 2 inches high with a weight of 2.87 kg. This 2U form factor is designed for standard rack mounting in server cabinets, though it can also be placed on a shelf in equipment rooms for flexible installation in different surveillance environments.
