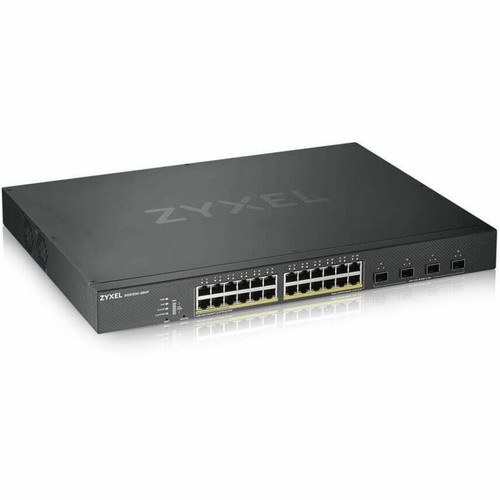

ZyXEL XGS1930-28HP 24-Port Gigabit Smart Managed PoE+ Switch with 4 SFP+ Uplinks - 375W PoE Budget - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2, supporting essential switching functions like VLANs, QoS, and link aggregation for optimized network traffic management. It features 24 Gigabit Ethernet ports (10/100/1000Base-T) for copper connections and 4 dedicated SFP+ slots (10GBase-X) for high-speed fiber uplinks, with no shared SFP slots to ensure full port availability.
The 375W PoE+ budget delivers up to 30W per port, compatible with IEEE 802.3af/at standards. Power consumption is rated at 471W, and the switch includes a standard power supply. Management options include standalone operation or free cloud management via NebulaFlex, upgradable to the full Professional Nebula cloud for centralized control.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XGS1930-28HP offers a cost-effective path to 10G networking without compromising on power delivery or management flexibility. Its hybrid cloud capability allows businesses to start with standalone management and seamlessly upgrade to cloud-based oversight as needs evolve.
High-Speed Uplink Readiness
Four dedicated SFP+ 10G ports provide ample bandwidth for aggregating traffic to core switches or servers, future-proofing your network for increased data demands.
- 10G fiber connectivity
- No shared SFP slots
- Supports 10GBase-X optics
Robust Power Delivery
With a 375W PoE+ budget, this switch can power multiple high-demand devices simultaneously, reducing the need for additional power injectors and simplifying cable management.
- IEEE 802.3af/at compliant
- Up to 30W per port
- Efficient power allocation
Deployment / Use Cases
Ideal for office networks, retail environments, and small campus deployments, this switch serves as an access layer device that connects end-user devices while providing high-speed uplinks to the network core. Its PoE+ capability makes it particularly suitable for powering VoIP phones, wireless access points, and IP surveillance systems.
The rack-mountable 1U form factor allows for easy integration into standard 19" server racks, while the smart fan design ensures reliable cooling in enclosed spaces. This switch is also a practical choice for businesses planning a gradual migration to 10G infrastructure, offering affordable uplink capacity without a full network overhaul.
Unified Office Network
Deploy in office settings to connect desktops, printers, and phones, with PoE+ eliminating separate power cables for compatible devices.
Wireless Network Backbone
Use as a distribution switch for multiple wireless access points, leveraging PoE+ for power and SFP+ uplinks for high-bandwidth backhaul connections.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 17" width, 13" depth, and 2" height (431.80 mm x 330.20 mm x 50.80 mm), fitting standard 19" racks. Its weight is approximately 10.14 lb (4600 g), making it easy to install and manage. The build includes a smart fan system for quiet operation, and the unit is RoHS compliant for environmental safety.
- Width
- 17" (431.80 mm)
- Depth
- 13" (330.20 mm)
- Height
- 2" (50.80 mm)
- Weight
- 10.14 lb (4600 g)
- Length
- 17" (431.80 mm)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 24 Gigabit Ethernet ports with non-blocking full bandwidth of 2,000 Mbps per port
- 4 dedicated SFP+ 10G uplink ports for high-speed fiber connectivity
- 375W PoE+ budget supporting IEEE 802.3af/at devices
- Layer 2 smart managed switching with VLAN, QoS, and link aggregation
- Hybrid cloud management via NebulaFlex, upgradable to Professional Nebula
- 1U rack-mountable design with smart fan for quiet operation
- Lifetime hardware warranty with free firmware upgrade support
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | XGS1930-28HP |
| Brand Name | ZYXEL |
| Product Series | XGS1930 |
| Product Model | XGS1930-28HP |
| Product Name | 24-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 471 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 2" (50.80 mm) |
| Width | 17" (431.80 mm) |
| Depth | 13" (330.20 mm) |
| Length | 17" (431.80 mm) |
| Weight (Approximate) | 10.14 lb (4600 g) |
| Miscellaneous | |
| Package Contents | 24-port GbE Smart Managed PoE Switch with 4 SFP+ Uplink Power Cord Rack Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE+ ports does this switch have and what is the total power budget?
All 24 Gigabit Ethernet ports support PoE+ with a total power budget of 375W. This allows the switch to deliver up to 30W per port, compatible with IEEE 802.3af and 802.3at standards, making it suitable for powering devices like IP phones, wireless access points, and security cameras without additional power sources.
What types of uplink connections are supported by the SFP+ slots?
The four dedicated SFP+ slots support 10G fiber connections using 10GBase-X optics. These slots are not shared with other ports, ensuring full availability for high-speed uplinks to core switches, servers, or network storage, facilitating 10G migration and reducing bottlenecks in your network infrastructure.
Is this switch manageable and what management options are available?
Yes, this is a smart managed Layer 2 switch. It offers flexible management through NebulaFlex, allowing you to choose between standalone operation or free cloud management. You can upgrade to the full Professional Nebula cloud for advanced features like centralized monitoring, configuration backups, and firmware updates across multiple sites.
What are the physical dimensions and rack mounting requirements?
The switch measures 17" wide, 13" deep, and 2" high (431.80 mm x 330.20 mm x 50.80 mm), fitting a standard 19" rack as a 1U device. It weighs approximately 10.14 lb (4600 g) and includes a rack mounting kit for easy installation. The smart fan design ensures efficient cooling while maintaining quiet operation in office environments.
Does this switch support Layer 3 routing or advanced routing protocols?
No, this switch operates at Layer 2, supporting essential switching functions such as VLANs, QoS, link aggregation, and STP. It is designed for access layer deployment where routing is typically handled by a dedicated router or Layer 3 switch upstream, making it ideal for segmenting network traffic and managing device connectivity efficiently.
What warranty and support are included with this switch?
ZyXEL provides a lifetime hardware warranty for this switch, covering defects in materials and workmanship. It also includes free firmware upgrade support and 90 days of free technical support to assist with setup and troubleshooting. This long-term assurance helps protect your investment and ensures reliable network performance over time.
