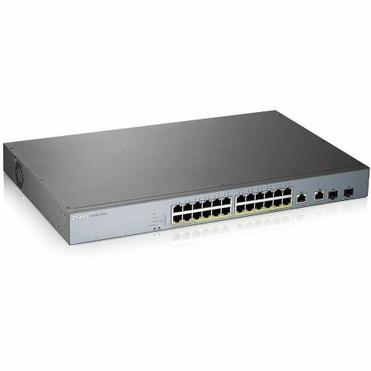

ZyXEL GS1350-26HP 24-Port Gigabit Smart Managed PoE+ Switch - 375W PoE Budget - 2 SFP Slots - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GS1350-26HP operates as a full Gigabit Ethernet switch, supporting 10/100/1000Base-T copper connections and 1000Base-X fiber via its two SFP combo slots. All 24 RJ-45 ports provide PoE+ (802.3at) power, capable of delivering up to 30W per port to connected devices. The switch's 375W total PoE budget is managed intelligently, prioritizing power allocation to ensure critical devices remain operational.
As a Layer 2 managed switch, it supports essential networking protocols including IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocols for network redundancy and loop prevention. The switch's management capabilities extend to VLAN configuration, QoS prioritization, and link aggregation, giving administrators granular control over network performance and security.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GS1350-26HP delivers significant advantages for network deployments requiring both high port density and Power over Ethernet capabilities. Its 375W PoE budget stands out as particularly valuable for powering multiple high-demand devices simultaneously, reducing infrastructure complexity and installation costs.
High-Density PoE+ Connectivity
With 24 PoE+ ports, this switch can power and connect numerous devices like VoIP phones, wireless access points, and IP cameras from a single unit, streamlining cable management and power distribution.
- 30W per port maximum
- Intelligent power allocation
- IEEE 802.3at compliant
Flexible Uplink Options
The dual Gigabit TP/SFP combo ports provide versatile uplink connectivity, allowing network administrators to choose between copper for short runs or fiber for longer distances and electrical isolation.
- Supports 1000Base-X fiber
- Copper/fiber flexibility
- Network expansion ready
Professional Rack Integration
Designed for standard 19-inch rack mounting, the switch includes a rack mounting kit for secure installation in network cabinets, with optimized airflow and cable management features.
- 2U height profile
- Front-to-back airflow
- Included mounting hardware
Deployment / Use Cases
The ZyXEL GS1350-26HP excels in environments where reliable Power over Ethernet and managed switching capabilities are essential. Its combination of port density, PoE budget, and management features makes it suitable for various professional networking scenarios.
In office environments, this switch can serve as the central connectivity point for workstations, IP phones, and wireless access points, with the PoE capability eliminating the need for power outlets at every desk. For retail or hospitality deployments, it can power security cameras, digital signage, and point-of-sale systems while providing the network segmentation and traffic prioritization needed for business-critical applications.
Small Business Core Switching
As the primary switch for small to medium businesses, providing connectivity for all network devices with PoE for phones and access points, plus fiber uplinks for connecting to internet routers or additional switches.
IP Surveillance Deployment
Ideal for security installations where multiple IP cameras require both network connectivity and power, with the management features enabling dedicated VLANs for video traffic isolation.
Physical Profile

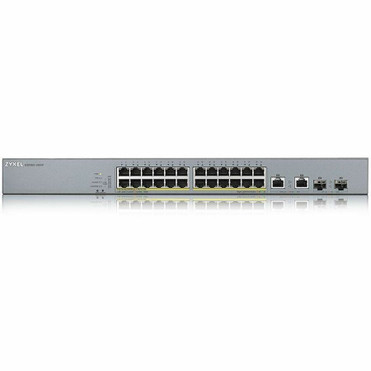

The GS1350-26HP features a compact 2U rack-mountable design measuring 2 inches in height, 11 inches in width, and 10.63 inches in depth. This form factor optimizes rack space utilization while providing adequate ventilation for sustained operation. The switch weighs approximately 7.89 pounds, making it manageable for installation in standard network cabinets. Front-panel LED indicators provide at-a-glance status monitoring for power, link activity, and PoE status across all ports.
- Width
- 11" (279.40 mm)
- Depth
- 10.63" (270 mm)
- Height
- 2" (50.80 mm)
- Weight
- 7.89 lb (3578.84 g)
- Length
- 17" (431.80 mm)
What's in the Box
The switch arrives ready for deployment with all necessary components for immediate installation and operation.
Highlights
- 24 Gigabit Ethernet ports with PoE+ support for connected devices
- 375W total PoE budget to power multiple high-demand devices simultaneously
- Two SFP combo slots for fiber or copper uplink connectivity
- Layer 2 managed switch with IGMP snooping and spanning tree protocols
- Rack-mountable 2U form factor for professional installation
- Built-in power supply with 448.90W power consumption rating
- Lifetime limited warranty for long-term deployment confidence
- RoHS compliant for environmentally responsible manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | ZYXEL Communications Corp. |
| Manufacturer Part Number | GS1350-26HP |
| Brand Name | ZYXEL |
| Product Series | GS1350 |
| Product Model | GS1350-26HP |
| Product Name | 24-port GbE Smart Managed PoE Switch with GbE Uplink |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet TP/SFP Combo |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 375 W |
| Power Source | Power Supply |
| Power Consumption | 448.90 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 2" (50.80 mm) |
| Width | 11" (279.40 mm) |
| Depth | 10.63" (270 mm) |
| Length | 17" (431.80 mm) |
| Weight (Approximate) | 7.89 lb (3578.84 g) |
| Miscellaneous | |
| Package Contents | 24-port GbE Smart Managed PoE Switch with GbE Uplink Power Cord Rack Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the total PoE budget of this switch and how many devices can it power?
The ZyXEL GS1350-26HP provides a 375W total PoE budget, which can power approximately 12-15 typical PoE+ devices simultaneously at full 30W per port. The switch intelligently manages power allocation across all 24 PoE+ ports, ensuring connected devices receive adequate power based on their requirements. This makes it suitable for deployments with multiple IP phones, wireless access points, or security cameras that require both data connectivity and power from the switch.
Can this switch connect to fiber optic networks?
Yes, the GS1350-26HP includes two Gigabit TP/SFP combo ports that support fiber optic connections. These slots accept standard SFP (mini-GBIC) transceivers for 1000Base-X fiber connectivity, allowing you to extend network segments over longer distances or connect to fiber backbone networks. The combo ports provide flexibility—you can use either the RJ-45 copper connection or install an SFP module for fiber, but not both simultaneously on the same port.
What management features does this Layer 2 switch offer?
As a smart managed Layer 2 switch, the GS1350-26HP provides comprehensive management capabilities including VLAN configuration for network segmentation, QoS for traffic prioritization, port mirroring for monitoring, and spanning tree protocols for network redundancy. It also supports IGMP snooping for efficient multicast traffic handling, link aggregation for increased bandwidth, and offers web-based management interface for easy configuration. These features give network administrators granular control over network performance, security, and troubleshooting.
Is this switch suitable for rack mounting in a server room?
Absolutely. The GS1350-26HP is designed specifically for rack mounting with a standard 2U height profile that fits 19-inch server racks. The package includes a complete rack mounting kit with necessary hardware for secure installation. Its dimensions of 2" H x 11" W x 10.63" D optimize rack space utilization while providing adequate ventilation for reliable operation in server rooms, wiring closets, or network cabinets.
What is the difference between this smart managed switch and an unmanaged switch?
Unlike unmanaged switches that simply forward traffic without configuration options, the GS1350-26HP smart managed switch provides advanced control over network operations. Key differences include VLAN support for network segmentation, QoS for prioritizing critical traffic, port security features, monitoring capabilities through port mirroring, and redundancy protocols like spanning tree. These management features allow network optimization, improved security, and better troubleshooting—essential for business environments where network performance and reliability are critical.
What warranty coverage comes with this ZyXEL switch?
The ZyXEL GS1350-26HP comes with a lifetime limited warranty, providing long-term protection for your network investment. This warranty covers defects in materials and workmanship for the operational life of the product when used under normal conditions and following proper installation guidelines. The switch is also RoHS compliant, meeting environmental standards for hazardous substance restriction, and includes a built-in power supply designed for reliable operation in professional networking environments.
