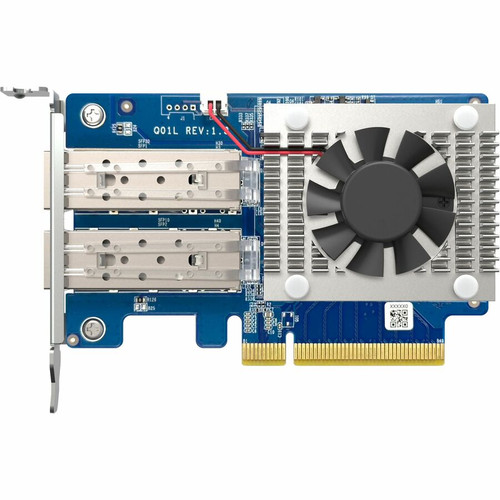

QNAP Dual-Port, 10GbE SFP+ Network Expansion Card - PCI Express 3.0 x8 - 10 Gbit/s Data Transfer Rate - Optical Fiber - Low-profile, - (QXG-10G2SF-NXE)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Ethernet Controller Manufacturer: Broadcom
Ethernet Controller Model: BCM57412
Features: Single Root I/O Virtualization (SR-IOV),iSCSI Extensions over RDMA (iSER)
Host Interface: PCI Express 3.0 x8
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Media Type Supported: Optical Fiber
Maximum Data Transfer Rate: 10 Gbit/s
Network Technology: 10GBase-X,1000Base-X
Form Factor: Plug-in Card
Bracket Height: Low-profile, Full-height
Height: 2.71" (68.90 mm)
Width: 0.72" (18.30 mm)
Device Supported: NAS Storage Device,PC
- To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
- Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
[custom-specifications]
| Specifications | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QXG-10G2SF-NXE |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Model | QXG-10G2SF-NXE |
| Product Name | Dual-Port, 10GbE SFP+ Network Expansion Card |
| Packaged Quantity | 1 |
| Product Type | 10Gigabit Ethernet Card |
| Technical Information | |
| Ethernet Controller Manufacturer | Broadcom |
| Ethernet Controller Model | BCM57412 |
| Features | Single Root I/O Virtualization (SR-IOV),iSCSI Extensions over RDMA (iSER) |
| Interfaces/Ports | |
| Host Interface | PCI Express 3.0 x8 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Network & Communication | |
| Network Technology | 10GBase-X,1000Base-X |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Bracket Height | Low-profile, Full-height |
| Height | 2.71" (68.90 mm) |
| Width | 0.72" (18.30 mm) |
| Miscellaneous | |
| Device Supported | NAS Storage Device,PC |
