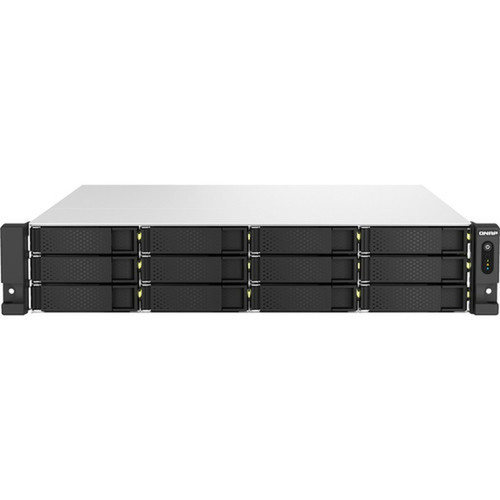

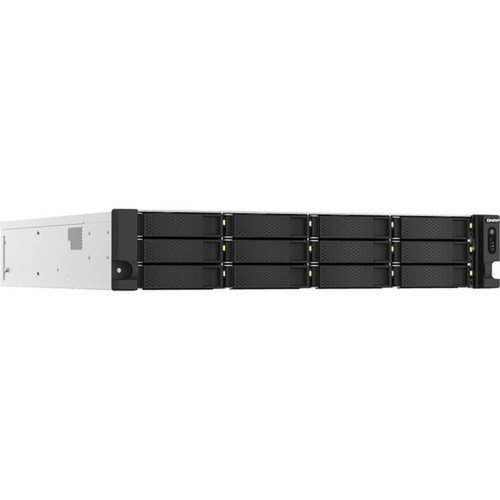

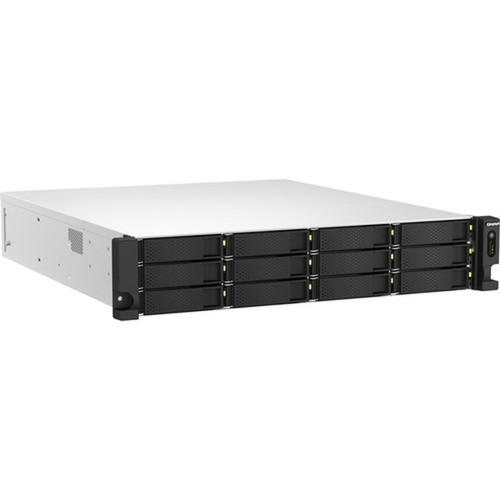

QNAP TS-H1887XU-RP-E2336-32G-US SAN/NAS Storage System - 18-Bay Rackmount - Intel Xeon E-2336 2.90 GHz - 32 GB DDR4 - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This storage system features a sophisticated technical architecture centered on the Intel Xeon E-2336 hexa-core processor running at 2.90 GHz. The processor's six cores provide substantial computational resources for storage processing, data deduplication, encryption, and virtualization tasks. The 32 GB of DDR4 SDRAM serves as high-speed cache and working memory, enhancing overall system responsiveness and throughput.
Storage management is handled through a Serial ATA/600 controller that supports comprehensive RAID functionality. The system accommodates RAID levels 0, 1, 5, 6, 10, 50, 60, and JBOD configurations, allowing administrators to balance performance, capacity, and data protection according to specific application requirements. The 5 GB of flash memory provides additional caching capabilities for frequently accessed data.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Number of Processors Installed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TS-h1887XU-RP-E2336-32G-US delivers several distinct advantages for enterprise storage deployments. Its 18-bay design provides exceptional storage density within a compact 2U rack footprint, maximizing data center space utilization while offering substantial capacity expansion potential. The combination of 12 x 3.5" and 6 x 2.5" bays supports mixed drive configurations, enabling administrators to optimize for capacity, performance, or cost-effectiveness.
High-Performance Networking
Four 10GbE/2.5GbE network ports deliver substantial bandwidth for demanding storage workloads, supporting high-speed data transfers across business networks.
- 10 Gigabit Ethernet connectivity
- 2.5 Gigabit Ethernet compatibility
- Four independent network ports
Enterprise Reliability Features
Redundant power supplies and comprehensive RAID support ensure continuous operation and data protection for critical business applications.
- Dual 550W power supplies
- Multiple RAID level options
- Hot-swappable drive bays
Deployment / Use Cases
This QNAP storage system is engineered for deployment in environments requiring substantial storage capacity with enterprise-grade reliability. Its 2U rackmount form factor makes it ideal for data center installations where space efficiency and high-density storage are priorities. The system's robust networking capabilities and processing power support demanding applications that require both substantial storage and high-speed data access.
Primary use cases include centralized file storage for medium to large organizations, backup and disaster recovery repositories, virtualization storage for server environments, and media asset management systems. The extensive protocol support enables seamless integration with diverse network environments, while the flexible drive bay configuration allows customization for specific performance or capacity requirements.
Virtualization Storage
Provides shared storage for virtual machine environments, supporting high I/O workloads with its 10GbE networking and substantial memory configuration.
Media Production Storage
Delivers the capacity and throughput needed for video editing workflows, with RAID configurations that balance performance and data protection.
Localization and Operating System
The system ships with QNAP's QuTS hero h5.0.0 and QTS 5.0.1 operating systems, providing a comprehensive storage management platform with advanced data services. These operating systems offer intuitive web-based administration, extensive application support, and robust security features tailored for enterprise environments.
Protocol support includes IPv4, IPv6, DHCP, CIFS/SMB, AFP, NFSv3, FTP, FTPS, SFTP, TFTP, HTTP, HTTPS, Telnet, SSH, iSCSI, SNMP, SSL/TLS, FXP, WebDAV, LDAP, DDNS, DNS, SNMPv2, SNMPv3, PPTP, L2TP, NFSv4, and TLS. This extensive protocol compatibility ensures seamless integration with diverse network environments and client systems.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Number of Processors Installed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Designed for standard 19-inch rack cabinets, this storage system occupies 2U of vertical space with dimensions of 3.46 inches in height, 19.02 inches in width, and 24.80 inches in depth. The rack-mountable form factor includes appropriate mounting hardware and ventilation for proper airflow in data center environments.
The system weighs approximately 28.66 pounds and features a professional-grade chassis with accessible drive bays and serviceable components. The front-accessible design facilitates drive installation and maintenance without removing the unit from the rack, while the rear panel provides comprehensive connectivity options and redundant power supply access.
- Width
- 19.02" (483.11 mm)
- Depth
- 24.80" (629.92 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 28.66 lb (12999.96 g)
What's in the Box
The package includes all necessary components for initial setup and operation of the storage system.
Highlights
- 18-bay storage system with support for both HDD and SSD configurations
- Intel Xeon E-2336 hexa-core processor running at 2.90 GHz
- 32 GB DDR4 SDRAM for enhanced performance and caching
- Four 10GbE/2.5GbE network ports for high-speed connectivity
- Comprehensive RAID support including 0, 1, 5, 6, 10, 50, 60, and JBOD
- Dual 550W redundant power supplies for continuous operation
- QuTS hero h5.0.0 and QTS 5.0.1 operating systems
- 2U rackmount form factor for space-efficient deployment
- Three PCIe 4.0 expansion slots for additional connectivity
- Four USB 3.2 Gen 2 ports for peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-H1887XU-RP-E2336-32G-US |
| Brand Name | QNAP |
| Product Series | TS-hx87XU |
| Product Model | TS-h1887XU-RP-E2336-32G |
| Product Name | TS-h1887XU-RP-E2336-32G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 18 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 18 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 5 GB |
| Processor & Chipset | |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | E-2336 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.90 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 18 |
| Number of 3.5" Bays | 12 |
| Number of 2.5" Bays | 6 |
| Total Number of Expansion Slots | 3.0 |
| Expansion Slot Type | PCI Express 4.0 x4,PCI Express 4.0 x8 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Software | |
| Operating System | QuTS hero h5.0.0/QTS 5.0.1 |
| Management & Protocols | |
| Protocols | IPv4,IPv6,DHCP,CIFS/SMB,AFP,NFSv3,FTP,FTPS,SFTP,TFTP,HTTP,HTTPS,Telnet,SSH,iSCSI,SNMP,SSL/TLS,FXP,WEBDAV,LDAP,DDNS,DNS,SNMPv2,SNMPv3,PPTP,L2TP,NFSv4,TLS |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 550 W |
| Physical Characteristics | |
| Height | 3.46" (87.88 mm) |
| Width | 19.02" (483.11 mm) |
| Depth | 24.80" (629.92 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 28.66 lb (12999.96 g) |
| Miscellaneous | |
| Package Contents | TS-h1887XU-RP-E2336-32G SAN/NAS Storage System 1 x Ethernet Cable 2 x Power Cord 48 x Flat Head Screw (for 3.5" HDD) 64 x Flat Head Screw (for 2.5" HDD) Quick Installation Guide (QIG) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | The TS-h1887XU-RP is backed by a 3-year warranty at no additional cost. |
User Manual
FAQ
What storage capacity does this system support?
The QNAP TS-h1887XU-RP-E2336-32G-US supports up to 18 drives across both 3.5-inch and 2.5-inch form factors, with 12 bays dedicated to 3.5-inch drives and 6 bays for 2.5-inch drives. This configuration allows for substantial storage capacity using high-capacity hard drives or high-performance solid-state drives, with the actual capacity depending on the specific drives installed. The system's RAID capabilities enable administrators to configure the storage for optimal balance of capacity, performance, and data protection.
What processor does this storage system use?
This system is powered by an Intel Xeon E-2336 hexa-core processor with six cores running at a base frequency of 2.90 GHz. The Xeon processor provides enterprise-grade performance for storage processing tasks, including data deduplication, encryption, compression, and virtualization support. This processing power ensures the system can handle demanding storage workloads while maintaining responsive performance for connected clients and applications.
What networking capabilities does this system offer?
The storage system features four RJ-45 network ports that support both 10 Gigabit Ethernet and 2.5 Gigabit Ethernet connectivity. This high-speed networking capability enables rapid data transfers across business networks, supporting demanding storage applications and multiple concurrent users. The system's extensive protocol support ensures compatibility with diverse network environments and client systems, while the multiple ports allow for network aggregation or separate network segmentation.
What RAID configurations are supported?
The system supports RAID levels 0, 1, 5, 6, 10, 50, 60, and JBOD configurations. This comprehensive RAID support allows administrators to choose the appropriate balance of performance, capacity utilization, and data protection for specific applications. RAID 0 provides maximum performance, RAID 1 offers mirroring for data protection, RAID 5 and 6 deliver parity-based protection with good capacity efficiency, while RAID 10, 50, and 60 combine performance and protection features for demanding environments.
What is the physical size and rack compatibility?
The storage system occupies 2U of vertical space in standard 19-inch rack cabinets, with dimensions of 3.46 inches in height, 19.02 inches in width, and 24.80 inches in depth. This compact form factor maximizes storage density within data center racks while providing sufficient space for proper airflow and cooling. The system includes appropriate mounting hardware for secure installation in rack environments and features front-accessible drive bays for convenient maintenance without removing the unit from the rack.
What operating system does this QNAP system use?
The system ships with QNAP's QuTS hero h5.0.0 and QTS 5.0.1 operating systems, which provide comprehensive storage management capabilities through an intuitive web-based interface. These operating systems include advanced data services such as snapshots, data deduplication, compression, and encryption, along with extensive application support for additional functionality. The dual-OS approach allows administrators to choose the platform best suited to their specific requirements and workflow preferences.
