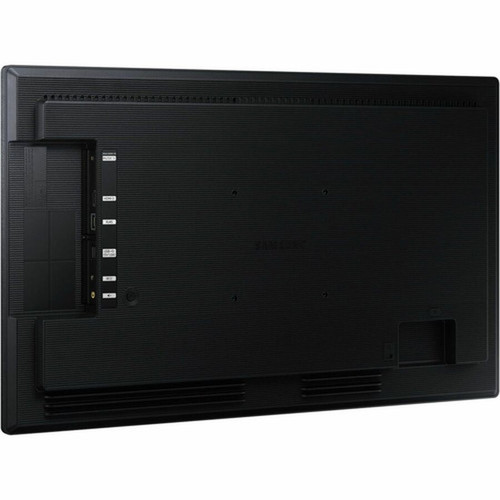

Samsung LH24QBCEBGCXZA QB24C 23.8" Digital Signage Display - ADS Panel - 1080p - 250 cd/m² - Tizen 7.0 - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Samsung QB24C is a 23.8-inch digital signage display engineered for commercial environments where reliable, continuous operation and clear visual communication are essential. Built with an Advanced Super Dimension Switch (ADS) panel, it delivers consistent 1080p Full HD content with wide viewing angles and accurate color reproduction across 72% of the NTSC color gamut.
Designed for 16/7 operation—16 hours per day, 7 days a week—this display meets the demands of retail, corporate lobbies, meeting rooms, and hospitality settings. Its Tizen 7.0 operating system provides a stable, intuitive platform for content management, while integrated Ethernet, Wi-Fi, and Bluetooth enable flexible connectivity and remote control. The compact, wall-mountable form factor and IP5X dust protection make it suitable for spaces where cleanliness and installation flexibility are priorities.
Technical Overview
At the core of the QB24C is a 23.8-inch LCD with an ADS panel that balances response time, color accuracy, and durability for signage use. The 1920 x 1080 native resolution ensures sharp text and graphics, supported by a 250 cd/m² brightness level that maintains visibility in typical indoor lighting. A 1,000:1 contrast ratio and 14 ms response time contribute to clear motion and legible content in dynamic applications.

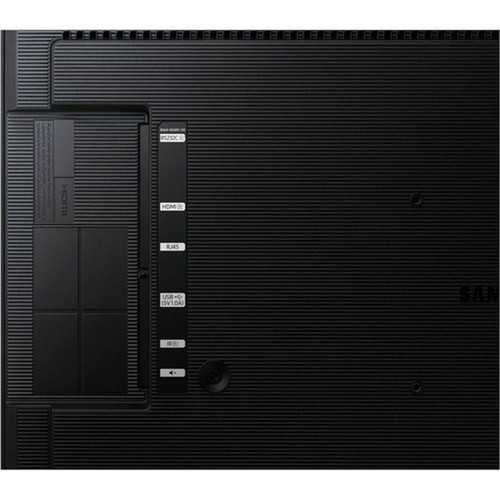

Connectivity includes one HDMI input for video sources, along with USB and RS-232C ports for peripheral integration and serial control. Digital audio optical output supports external sound systems, while the absence of DisplayPort is offset by the display’s focus on commercial AV standards. Network capabilities are comprehensive, with wired Ethernet, dual-band Wi-Fi, and Bluetooth 5.0 for wireless peripherals or content updates.
Relevant factors for this section include Ingress Protection (IP) Rating, Panel Technology, Operation Hours, Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The QB24C combines commercial-grade durability with user-friendly features that simplify deployment and maintenance. Its 16/7 operation rating ensures it can run continuously during business hours without thermal or performance degradation, backed by an operating temperature range of 32°F to 104°F (0°C to 40°C) and humidity tolerance from 10% to 80%.
Reliable Commercial Operation
Engineered for 16-hour daily use, 7 days a week, with robust environmental specs for consistent performance in varied indoor conditions.
- IP5X dust protection
- Wide temperature/humidity range
- Stable Tizen 7.0 platform
Flexible Installation & Control
VESA 100x100 mounting and wall-mountable design allow for secure placement in retail, corporate, or hospitality settings, with RS-232C and network control for integrated systems.
- Standard VESA compatibility
- RS-232C for serial commands
- Ethernet and Wi-Fi management
Clear Visual Performance
ADS panel technology delivers consistent 1080p clarity with wide viewing angles, 250 cd/m² brightness, and 72% NTSC color coverage for engaging content.
- Wide viewing angles
- Accurate color reproduction
- Sharp 1080p detail
Deployment / Use Cases
This display is tailored for commercial and business environments where digital signage enhances communication, branding, or information delivery. Its compact size and wall-mount capability make it ideal for spaces with limited footprint, while the 16/7 operation ensures it can handle extended hours without compromise.
In retail settings, the QB24C can showcase promotions, menus, or product information with clear 1080p visuals. Corporate lobbies and meeting rooms benefit from its ability to display schedules, announcements, or video conferencing content via HDMI. Hospitality venues such as hotels or restaurants can use it for wayfinding, event details, or entertainment, leveraging the Tizen 7.0 OS for easy content updates over Wi-Fi or Ethernet.
Retail & Point-of-Sale
Display dynamic pricing, promotions, or menu boards with sharp 1080p graphics and reliable 16/7 operation for high-traffic areas.
Corporate & Meeting Rooms
Show presentations, schedules, or video feeds in lobbies or conference spaces, with wall mounting and network control for seamless integration.
Localization and Operating System
The Samsung QB24C digital signage display runs on the Tizen 7.0 operating system, a robust platform optimized for commercial environments. Tizen 7.0 provides a stable foundation for content management, supporting apps for scheduling, remote updates, and media playback, which simplifies deployment and maintenance in settings like retail stores, corporate offices, or hospitality venues. Its intuitive interface allows users to manage displays via network connections, including Ethernet and Wi-Fi, ensuring seamless integration into existing digital signage networks.
While the display does not include specific localization features such as regional language packs or keyboard adaptations, its operating system and connectivity options support global use with standard input methods and content formats. The Tizen ecosystem offers compatibility with various content management systems (CMS), enabling businesses to tailor displays for multilingual or region-specific content as needed. This flexibility makes the QB24C suitable for diverse commercial applications where reliable performance and easy content control are priorities, without requiring specialized localization hardware.
Tizen 7.0 Platform
A dedicated operating system for Samsung displays, offering stable performance, app support for content management, and remote update capabilities over network connections.
- Stable platform for continuous operation
- Supports content scheduling and apps
- Remote management via Ethernet or Wi-Fi
Physical Profile
The QB24C features a slim, space-efficient design with dimensions of 21.57" wide, 13.17" high, and 1.25" deep (547.90 x 334.40 x 31.80 mm), weighing approximately 6.61 lb (3000 g). Its lightweight build and VESA 100x100 mount pattern support easy wall installation or mounting on compatible stands, making it adaptable to various commercial layouts. The IP5X rating provides protection against dust ingress, ensuring longevity in environments where cleanliness is a concern.
- Width
- 21.57" (547.90 mm)
- Depth
- 1.25" (31.80 mm)
- Height
- 13.17" (334.40 mm)
- Weight
- 6.61 lb (3000 g)
Highlights
- 23.8-inch digital signage display with 1080p Full HD resolution
- Advanced Super Dimension Switch (ADS) panel for wide viewing angles
- 250 cd/m² brightness suitable for indoor commercial environments
- Tizen 7.0 operating system for stable content management
- 16/7 operation rating for continuous use during business hours
- VESA 100x100 wall-mountable design with IP5X dust protection
- Connectivity includes HDMI, USB, RS-232C, Ethernet, Wi-Fi, and Bluetooth
- Operating temperature range of 32°F to 104°F (0°C to 40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Samsung |
| Manufacturer Part Number | LH24QBCEBGCXZA |
| Brand Name | Samsung |
| Product Model | QB24C |
| Product Name | QB24C Small Digital Signage |
| Product Type | Digital Signage Display |
| Technical Information | |
| Ingress Protection (IP) Rating | IP5X |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Operation Hours | 16 Hours/ 7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 23.80" (604.52 mm) |
| Display Screen Type | LCD |
| Response Time | 14 ms |
| Display Resolution | 1920 x 1080 |
| Graphics Modes | Full HD |
| Video | |
| Scan Format | 1080p |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 cd/m² |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | No |
| Serial | Yes |
| Number of HDMI Inputs | 1 |
| RS-232C Input | Yes |
| Digital Audio Optical Output | Yes |
| Software | |
| Operating System | Tizen 7.0 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| VESA Mount Standard | 100 x 100 |
| Mount Type | Wall Mountable |
| Height | 13.17" (334.40 mm) |
| Width | 21.57" (547.90 mm) |
| Depth | 1.25" (31.80 mm) |
| Weight (Approximate) | 6.61 lb (3000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Application/Usage | Commercial,Business,Meeting Room |
User Manual
FAQ
What screen size is listed?
It features a display specification of 23.80" (604.52 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 1920 x 1080, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 250 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of 100 x 100, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
Advanced Super Dimension Switch ( ADS ).
