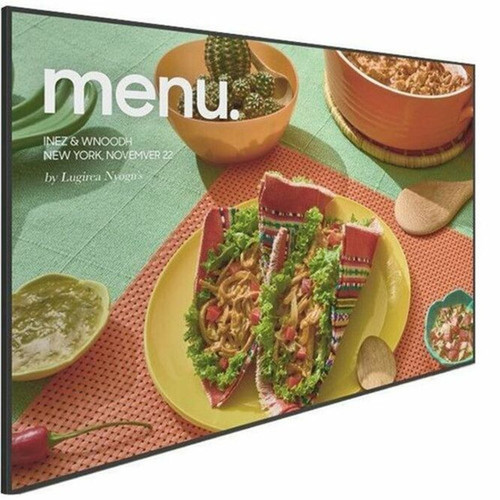

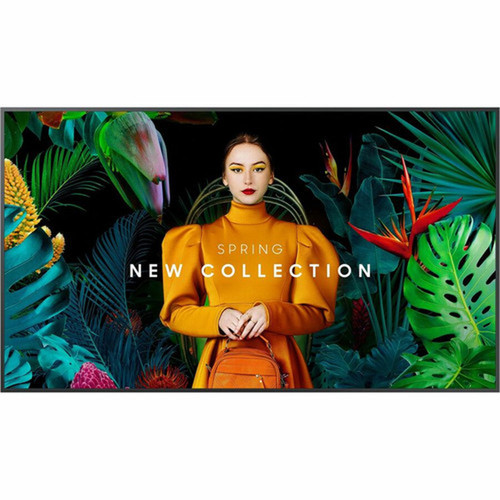

Samsung LH43QHCEBGCXGO Crystal UHD Signage QHC - 43" 4K UHD LCD - 700 cd/m² - 24/7 Operation - VA Panel - Landscape/Portrait
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Samsung LH43QHCEBGCXGO Crystal UHD Signage QHC is a 43-inch commercial-grade digital signage display engineered for demanding 24/7 operation in business, medical, and transportation environments. Built around a high-brightness 4K UHD LCD panel with Vertical Alignment (VA) technology, it delivers sharp 3840 × 2160 resolution and consistent 700 cd/m² luminance for clear visibility even in well-lit spaces.
This display runs Samsung's Tizen 7.0 smart signage platform, providing a stable, app-ready foundation for content management and remote control. Its connectivity suite includes three HDMI 2.0 ports, one DisplayPort 1.2 input, Ethernet, Wi-Fi, Bluetooth, and RS-232C serial interfaces for flexible integration into existing AV systems or digital signage networks. The ultra-slim 1.12-inch profile and uniform 0.45-inch bezel make it an ideal candidate for video wall configurations or standalone installations where a clean, modern appearance is required.
Technical Overview
At the core of the QHC signage display is a 43-inch VA LCD panel that achieves a native contrast ratio of 4,000:1 and covers 72% of the NTSC color gamut. The 8 ms response time ensures smooth motion handling for video content, while the 2160p scan format supports true 4K UHD graphics. Brightness is rated at 700 candelas per square meter (cd/m²), providing ample output for retail, lobby, or healthcare settings where ambient light is a factor.
The display is designed for continuous commercial duty, with an operating temperature range of 32°F to 104°F (0°C to 40°C) and humidity tolerance from 10% to 80%. It accepts universal input voltage (120–230 V AC) and carries IP5X ingress protection against dust intrusion. Energy Star certification and EPEAT Bronze environmental recognition reflect its efficiency and reduced ecological footprint.
Key Product Advantages
This Samsung signage display combines high-impact visual performance with the robustness needed for always-on commercial deployments. Its 700 cd/m² brightness and 4K clarity ensure content remains legible and engaging, while the 24/7 operational rating guarantees reliability in mission-critical applications.
Commercial-Grade Durability
Rated for continuous 24-hour operation across seven days, with wide environmental tolerances and IP5X dust protection for sustained performance in airports, hospitals, and retail spaces.
- 24/7 operation rating
- IP5X dust protection
- 0°C to 40°C operating range
Installation Flexibility
Features a centered VESA 200×200 mounting pattern, landscape/portrait orientation support, and an ultra-slim 1.12-inch depth for flush wall mounting or seamless video wall arrays.
- VESA 200×200 compatible
- Landscape/portrait orientation
- 0.45" even bezel
Deployment / Use Cases
The LH43QHCEBGCXGO is tailored for environments where digital signage must perform reliably under constant use. Its high brightness and 4K resolution make it effective for advertising, wayfinding, and information displays in high-traffic areas.
In healthcare settings, the display can show patient information, staff schedules, or educational content with the clarity and uptime required for clinical workflows. At airports or transportation hubs, it serves as a durable platform for flight information, security messaging, or directional signage, benefiting from the wide operating temperature range and network connectivity for centralized management.
Relevant factors for this section include Bezel Width, Ingress Protection (IP) Rating, Panel Technology, Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Localization and Operating System
This Samsung digital signage display runs the Tizen 7.0 operating system, a dedicated smart platform optimized for commercial display applications. Tizen 7.0 provides a stable, secure environment for content management, app installation, and remote control, enabling seamless integration with digital signage networks and scheduling software without the need for external media players in many setups.
While the display does not include specific language or regional localization settings in product details, its Tizen OS supports standard international content formats and network protocols, making it suitable for deployment in diverse environments such as airports, hospitals, and retail spaces across North America and other regions. The universal input voltage of 120–230 V AC allows for flexible power compatibility in different electrical systems, supporting installations in business, medical, and transportation hubs worldwide.
Tizen 7.0 Smart Signage Platform
Offers a robust foundation for app-based content delivery, remote management, and scheduled playback, reducing reliance on external hardware and simplifying updates for multi-screen deployments.
- App-ready OS for signage applications
- Remote management capabilities
- Secure and stable performance
Physical Profile
With dimensions of 38.17 inches wide, 21.96 inches high, and just 1.12 inches deep, this display presents a sleek, low-profile footprint suitable for space-constrained installations. The 0.45-inch bezel width is consistent on all sides, minimizing visual interruptions in multi-screen setups. Weighing approximately 20.5 pounds, it remains manageable for mounting while the centered VESA 200×200 pattern ensures secure attachment to wall mounts, stands, or video wall frames.
- Width
- 38.17" (969.50 mm)
- Depth
- 1.12" (28.50 mm)
- Height
- 21.96" (557.80 mm)
- Weight
- 20.50 lb (9300 g)
Highlights
- 43-inch 4K UHD (3840 × 2160) LCD display with 700 cd/m² brightness
- Vertical Alignment (VA) panel for 4,000:1 contrast and 72% NTSC color
- Rated for 24-hour, 7-day continuous operation in commercial environments
- Tizen 7.0 smart signage OS with app support and remote management
- Three HDMI 2.0 ports, one DisplayPort 1.2, and RS-232C serial control
- Ethernet, Wi-Fi, and Bluetooth for networked content delivery
- Ultra-slim 1.12-inch depth with uniform 0.45-inch bezel
- VESA 200×200 wall mount compatible with landscape/portrait orientation
- IP5X dust protection and wide temperature/humidity operating range
- Energy Star certified and EPEAT Bronze environmental recognition
Specifications
| Specifications | |
|---|---|
| Manufacturer | Samsung |
| Manufacturer Part Number | LH43QHCEBGCXGO |
| Brand Name | Samsung |
| Product Series | QHC |
| Product Model | QH43C |
| Product Name | Crystal UHD Signage QHC |
| Product Type | Digital Signage Display |
| Technical Information | |
| Bezel Width | 0.45" (11.50 mm) |
| Ingress Protection (IP) Rating | IP5X |
| Panel Technology | Vertical Alignment (VA) |
| Operation Hours | 24 Hours/7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 43" (1092.20 mm) |
| Display Screen Type | LCD |
| Response Time | 8 ms |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Graphics Modes | 4K UHD |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 4,000:1 |
| Brightness | 700 cd/m² |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 3 |
| Number of DisplayPorts | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of HDMI 2.0 Ports | 3 |
| Number of DisplayPort 1.2 Ports | 1 |
| Software | |
| Operating System | Tizen 7.0 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| VESA Mount Standard | 200 x 200 |
| Mount Type | Wall Mountable |
| Height | 21.96" (557.80 mm) |
| Width | 38.17" (969.50 mm) |
| Depth | 1.12" (28.50 mm) |
| Weight (Approximate) | 20.50 lb (9300 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Application/Usage | Business,Medical,Airport |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Warranty | |
| Limited Warranty | 36 Month |
