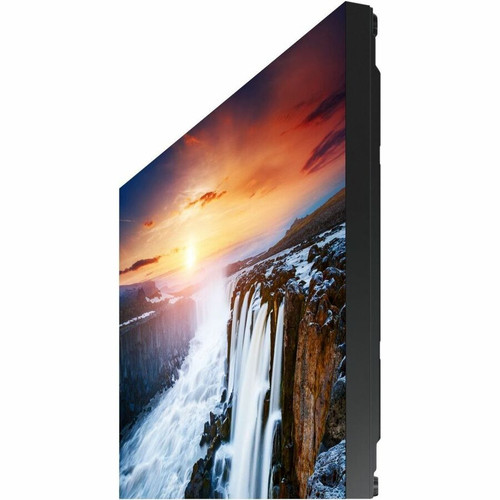

Samsung LH55VHCRBGBXZA VHC-R Razor Narrow Bezel Video Wall - 55" LCD - IPS - 700 cd/m² - 24/7 Operation
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Samsung VHC-R Razor Narrow Bezel Video Wall is a 55-inch commercial-grade LCD display engineered for seamless multi-screen installations in demanding environments. Built around an In-plane Switching (IPS) panel with Direct LED backlighting, it delivers consistent color and brightness across wide viewing angles, essential for digital signage and video wall applications.
With a 17.32 mil (0.44 mm) ultra-narrow bezel, this display minimizes visual interruptions between adjacent screens, creating a near-continuous canvas for immersive content. Its 700 cd/m² high brightness ensures excellent visibility even in well-lit retail spaces, lobbies, or public areas, while 24/7 continuous operation reliability supports around-the-clock deployment.
Relevant factors for this section include Video Wall Compatible, Bezel Width, Ingress Protection (IP) Rating, Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This display features a Full HD 1920 x 1080 resolution with a 1080p scan format, providing sharp, detailed imagery for promotional content, information displays, or dynamic video walls. The IPS technology offers a 72% color gamut and wide viewing angles, maintaining color accuracy and contrast uniformity essential for multi-display setups.
A 1,100:1 native contrast ratio and 140,000:1 dynamic contrast ratio enhance depth and detail in both bright and dark scenes. The 8 ms response time ensures smooth motion handling for video playback, while Ethernet connectivity enables network-based control and content management.
Relevant factors for this section include Video Wall Compatible, Bezel Width, Ingress Protection (IP) Rating, Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Designed specifically for commercial video wall installations, this display combines narrow bezel design, high brightness, and robust connectivity to simplify deployment and ensure reliable performance in continuous-use scenarios.
Seamless Multi-Screen Integration
The razor-thin 0.44 mm bezel dramatically reduces the gap between displays, creating a cohesive visual experience across video wall configurations without distracting black lines interrupting content flow.
- Minimized bezel intrusion
- Clean tiled appearance
- Enhanced immersion for viewers
Commercial-Grade Durability
Rated for 24/7 continuous operation with an IP5X ingress protection rating against dust ingress, this display withstands the demands of high-traffic environments like retail stores, transportation hubs, and corporate lobbies.
- Dust-resistant construction
- Extended operational lifespan
- Stable performance under constant use
Comprehensive Input Flexibility
Multiple high-definition inputs including two HDMI 2.0 ports, one DisplayPort 1.2, and one DVI port provide compatibility with various media players, PCs, and signage controllers, while RS-232C serial ports enable advanced control integration.
- HDMI 2.0 for 4K@60Hz pass-through
- DisplayPort for high-bandwidth content
- Serial control for system automation
Deployment / Use Cases
This display is optimized for commercial digital signage and video wall applications where visual impact, reliability, and seamless multi-screen presentation are critical. Its high brightness and narrow bezel make it particularly effective in environments where content needs to capture attention across large viewing areas.
Typical installations include retail video walls for brand storytelling and product promotion, corporate lobby displays for announcements and wayfinding, transportation hub information screens for schedules and alerts, and hospitality venue digital signage for menus and event promotion. The VESA 600x400 mounting compatibility supports secure attachment to standard video wall frames or custom mounting solutions.
Retail & Brand Experience
Create immersive brand environments with dynamic video walls that showcase products, promotions, and brand stories with vibrant colors and seamless visuals that engage customers.
- High brightness for well-lit stores
- Narrow bezel for uninterrupted content
- IPS for consistent viewing angles
Public Information & Wayfinding
Deploy in airports, train stations, or corporate campuses to display schedules, maps, emergency alerts, and directional information with clear readability and reliable 24/7 operation.
- 24/7 operational reliability
- Ethernet for network management
- Dust-resistant IP5X rating
Physical Profile
The display features a slim 2.75" (69.90 mm) depth profile with a black bezel that blends discreetly into multi-screen installations. Measuring 47.68" (1211 mm) wide by 26.84" (681.70 mm) high, it provides a substantial 55-inch viewing area while maintaining a weight of approximately 37.04 lb (16.8 kg) for manageable installation. The VESA 600x400 mounting pattern ensures compatibility with a wide range of commercial mounts and video wall frameworks.
- Width
- 17.32 mil (0.44 mm)
- Depth
- 2.75" (69.90 mm)
- Height
- 26.84" (681.70 mm)
- Weight
- 37.04 lb (16800 g)
Highlights
- 55-inch LCD display with IPS panel technology for consistent colors and wide viewing angles
- Razor narrow 0.44 mm bezel minimizes visual gaps in video wall configurations
- 700 cd/m² high brightness ensures excellent visibility in well-lit commercial environments
- 24/7 continuous operation rating for reliable around-the-clock digital signage deployment
- Full HD 1920×1080 resolution with Direct LED backlighting for sharp, vibrant imagery
- Multiple connectivity options including 2× HDMI 2.0, DisplayPort 1.2, DVI, and RS-232C
- VESA 600×400 mounting compatible with standard video wall frames and mounts
- IP5X dust ingress protection rating enhances durability in various environments
- 36-month limited warranty provides commercial deployment confidence
- Optimized for business, retail, and public space applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Samsung |
| Manufacturer Part Number | LH55VHCRBGBXZA |
| Brand Name | Samsung |
| Product Series | VHC-R |
| Product Model | VH55C-R |
| Product Name | VHC-R Razor Narrow Bezel Video Wall |
| Product Type | Digital Signage Display |
| Technical Information | |
| Video Wall Compatible | Yes |
| Bezel Width | 17.32 mil (0.44 mm) |
| Ingress Protection (IP) Rating | IP5X |
| Panel Technology | In-plane Switching (IPS) Technology |
| Operation Hours | 24 Hours/7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 55" (1397 mm) |
| Display Screen Type | LCD |
| Response Time | 8 ms |
| Display Resolution | 1920 x 1080 |
| Backlight Technology | Direct LED |
| Video | |
| Scan Format | 1080p |
| Native Contrast Ratio | 1,100:1 |
| Dynamic Contrast Ratio | 140,000:1 |
| Brightness | 700 cd/m² |
| Color Gamut | 72% |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | No |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| Number of DisplayPort 1.2 Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 600 x 400 |
| Height | 26.84" (681.70 mm) |
| Width | 47.68" (1211 mm) |
| Depth | 2.75" (69.90 mm) |
| Weight (Approximate) | 37.04 lb (16800 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Application/Usage | Business,Retail,Public Space |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What makes this display suitable for video wall installations?
This display features an ultra-narrow 0.44 mm bezel that minimizes visual interruptions between adjacent screens, creating a near-seamless appearance in multi-display configurations. Combined with VESA 600×400 mounting compatibility and consistent IPS panel performance across viewing angles, it delivers the cohesive visual experience required for professional video walls in commercial settings.
How bright is this display and why does that matter for digital signage?
This display delivers 700 cd/m² brightness, which ensures excellent visibility even in well-lit environments like retail stores, lobbies, or outdoor-adjacent spaces. High brightness prevents washout from ambient light, maintaining vibrant colors and clear readability of content—a critical requirement for effective digital signage that needs to capture attention and convey information reliably throughout the day.
Can this display operate continuously without interruption?
Yes, this display is rated for 24 hours per day, 7 days per week continuous operation, making it suitable for around-the-clock digital signage applications. This commercial-grade reliability ensures consistent performance in environments where displays must remain active continuously, such as transportation hubs, retail stores, or corporate lobbies that operate extended hours or never close.
What connectivity options are available on this display?
The display provides comprehensive connectivity with two HDMI 2.0 ports, one DisplayPort 1.2 port, one DVI port, USB, Ethernet, and RS-232C serial input/output. This range of interfaces supports connection to various media players, PCs, signage controllers, and control systems, offering flexibility for different content sources and enabling advanced management through serial commands.
What mounting options are supported for installation?
This display features a VESA 600×400 mounting pattern, which is compatible with a wide range of commercial mounts, video wall frames, and adjustable brackets. This standardized mounting interface simplifies installation in both single-display and multi-screen configurations, allowing secure attachment to walls, stands, or custom structures while maintaining proper alignment in video wall arrays.
What environmental conditions can this display withstand?
The display operates within a temperature range of 32°F to 104°F (0°C to 40°C) and humidity from 10% to 90%, with an IP5X rating that provides protection against dust ingress. This environmental tolerance ensures reliable performance in various indoor commercial settings, from climate-controlled offices to more variable environments like retail entrances or transportation terminals where dust exposure may occur.
