Sharp PN-P656 64.5 Inch 1638.3 Mm IPS Wide Color Gamut Ultra HD Professional Display High-Definition Switching In-plane LCD PNP656
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Bezel Width (Top): 0.43" (11 mm)
Bezel Width (Bottom): 0.55" (13.90 mm)
Bezel Width (Left): 0.43" (11 mm)
Bezel Width (Right): 0.43" (11 mm)
Ingress Protection (IP) Rating: IP5X,IP2X
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Number of Screens: 1
Viewable Screen Size: 64.50" (1638.30 mm)
Screen Size Class: 65" (1651 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Face-up/Landscape/Portrait/Face-down
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Scan Format: 2160p
Dynamic Contrast Ratio: 8,000:1
Brightness: 700 cd/m²
Color Gamut: 72% NTSC
Ethernet: Yes
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of HDMI Inputs: 2
Number of HDMI Outputs: 1
Number of DisplayPorts: 2
DisplayPort Output: Yes
Number of Network (RJ-45) Ports: 2
Number of DisplayPort Outputs: 1
Input Voltage: 120 V AC,230 V AC
Color Family: Black
Product Color: Black
Bezel Color: Black
VESA Mount Standard: 400 x 400
Height: 32.77" (832.40 mm)
Width: 57.26" (1454.50 mm)
Depth: 2.34" (59.50 mm)
Weight (Approximate): 57.32 lb (26000 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: -4°F (-20°C)
Maximum Storage Temperature: 140°F (60°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 80%
Application/Usage: Commercial,Control Room,Retail,Corporate,High Traffic Area,Hospitality,Command Center,Healthcare
Energy Star: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Energy Efficiency Certification: ENERGY STAR 8.0
UL Listed: Yes
Limited Warranty: 5 Year
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Wide Color Gamut panels allow for a broader range of viewable colors compared to traditional commercial panels

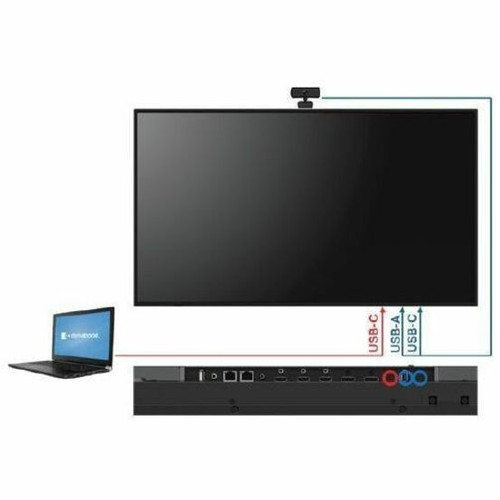

- Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for more streamlined operations when using as a presentation type of device
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
- 700 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation
- Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display
- Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Full 5-year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
[custom-specifications]
| Specifications | |
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | PNP656 |
| Manufacturer Website Address | http://www.sharpusa.com |
| Brand Name | Sharp |
| Product Line | MultiSync |
| Product Series | PN-P |
| Product Model | PN-P656 |
| Product Name | PN-P656 65" Wide Color Gamut Ultra High-Definition Professional Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Bezel Width (Top) | 0.43" (11 mm) |
| Bezel Width (Bottom) | 0.55" (13.90 mm) |
| Bezel Width (Left) | 0.43" (11 mm) |
| Bezel Width (Right) | 0.43" (11 mm) |
| Ingress Protection (IP) Rating | IP5X,IP2X |
| Panel Technology | In-plane Switching (IPS) Technology |
| Operation Hours | 24 Hours/7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 64.50" (1638.30 mm) |
| Screen Size Class | 65" (1651 mm) |
| Display Screen Type | LCD |
| Response Time | 8 ms |
| Display Resolution | 3840 x 2160 |
| Orientation | Face-up/Landscape/Portrait/Face-down |
| Backlight Technology | Direct LED |
| Aspect Ratio | 16:9 |
| Video | |
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 8,000:1 |
| Brightness | 700 cd/m² |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of DisplayPorts | 2 |
| DisplayPort Output | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DisplayPort Outputs | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Bezel Color | Black |
| VESA Mount Standard | 400 x 400 |
| Height | 32.77" (832.40 mm) |
| Width | 57.26" (1454.50 mm) |
| Depth | 2.34" (59.50 mm) |
| Weight (Approximate) | 57.32 lb (26000 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 80% |
| Miscellaneous | |
| Application/Usage | Commercial,Control Room,Retail,Corporate,High Traffic Area,Hospitality,Command Center,Healthcare |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
