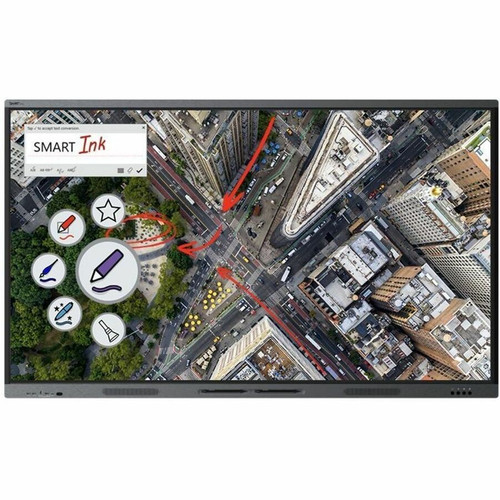

SMART Board T086-P T Pro Series 86" QLED 4K UHD Interactive Display with HyPr Touch - 50-Point Multi-Touch - 40W Audio & VESA Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The T086-P features a 3840 x 2160 4K UHD QLED panel with 850 cd/m² brightness and 178° viewing angles, ensuring vivid, consistent visibility from any position in the room. An ambient light sensor automatically adjusts brightness to ambient conditions, while tempered glass provides durability and scratch resistance for high-traffic use.
HyPr Touch technology enables precise, low-latency interaction with support for 50 touch points, allowing multiple users to write, draw, and manipulate content simultaneously. The 8 ms response time minimizes lag for dynamic presentations and real-time annotation.
Relevant factors for this section include Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This interactive display combines large-format visual clarity with intuitive touch capabilities, reducing the need for separate whiteboards and projectors. The integrated audio and microphone system eliminates external audio hardware, simplifying setup and enhancing meeting efficiency.
Collaboration-Ready Audio
The built-in 40W audio system with eight microphones captures clear voice input and delivers robust output, making it ideal for hybrid meetings and presentations without additional peripherals.
- 2 speakers
- 8-microphone array
- 40W RMS output
Flexible Installation
VESA 800 x 600 mount compatibility allows for wall or stand mounting, adapting to various room layouts. The slim 3.54" depth and manageable weight support secure installation in conference rooms, classrooms, or lobbies.
- VESA 800 x 600
- Wall-mount ready
- Slim profile
Deployment / Use Cases
The T086-P is tailored for environments where visual collaboration and interactive engagement are priorities. Its large screen and multi-touch capabilities make it effective for brainstorming sessions, training workshops, and strategic planning meetings where teams need to annotate, share ideas, and interact with digital content in real time.
In corporate settings, it serves as a central display for video conferences, integrating with platforms like SMART Meeting Pro to facilitate remote participation. Educational institutions benefit from its interactive features for dynamic lessons, while retail or hospitality venues can use it for interactive kiosks or digital signage with touch-enabled customer engagement.
Corporate Conference Rooms
Enhance hybrid meetings with 4K clarity, touch annotation, and integrated audio, reducing clutter and improving collaboration across in-person and remote teams.
Educational & Training Facilities
Support interactive learning with multi-touch functionality for group activities, presentations, and digital whiteboarding, fostering engagement in classrooms or training centers.
Physical Profile
The display measures 76.93" wide by 46.10" high by 3.54" deep, offering a substantial yet sleek footprint for large rooms. Weighing 138.89 lb, it requires proper mounting hardware and installation planning. The VESA 800 x 600 compatibility ensures secure attachment to compatible wall mounts or stands, with the tempered glass front providing resilience against daily use and accidental impacts.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 46.10" (1171 mm), 76.93" (1954 mm), 3.54" (90 mm), 138.89 lb (63000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 76.93" (1954 mm)
- Depth
- 3.54" (90 mm)
- Height
- 46.10" (1171 mm)
- Weight
- 138.89 lb (63000 g)
What's in the Box
The package includes all essential components for setup and operation, along with accessories for immediate use.
Highlights
- 86" QLED 4K UHD display with 850 cd/m² brightness for vibrant visuals
- HyPr Touch technology with 50-point multi-touch for collaborative interaction
- Integrated 40W audio system with 2 speakers and 8-microphone array
- VESA 800 x 600 mount compatible for flexible installation options
- Includes SMART Meeting Pro, SMART Product Drivers, and SMART Ink software
- Connectivity with HDMI, 2x USB, Ethernet, Serial, and S/PDIF Out ports
- Tempered glass and ambient light sensor for durability and adaptive brightness
- Energy Star certified and compliant with RoHS, REACH, and WEEE standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | SMART Technologies, Inc |
| Manufacturer Part Number | T086-P |
| Brand Name | SMART Board |
| Product Series | T Pro |
| Product Model | T086 Pro |
| Product Name | T Pro series interactive displays - 86" |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 86" (2184.40 mm) |
| Screen Size Class | 86" (2184.40 mm) |
| Display Screen Type | QLED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Brightness | 850 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Tempered Glass | Yes |
| Ambient Light Sensor | Yes |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 50 |
| Touchscreen Technology | HyPr Touch Technology |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| Number of Microphone Array Elements | 8 |
| RMS Output Power | 40 W |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 2 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Software | |
| Software Included | SMART Meeting Pro SMART Product Drivers SMART Ink |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Height | 46.10" (1171 mm) |
| Width | 76.93" (1954 mm) |
| Depth | 3.54" (90 mm) |
| Weight (Approximate) | 138.89 lb (63000 g) |
| Miscellaneous | |
| Package Contents | T Pro series interactive displays - 86" 1 x power cable 1 x 16' 5" (5 m) USB 2.0 A to B cable 1 x 6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A 2 x Pens 1 x Remote control 2 x AAA batteries 1 x Illustrated installation instructions 1 x Important information document |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Ecodesign |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the screen size and resolution of the SMART Board T086-P?
The SMART Board T086-P features an 86" (2184.40 mm) QLED display with a 4K UHD resolution of 3840 x 2160 pixels. This large format and high resolution provide sharp, detailed visuals suitable for presentations, video conferencing, and interactive content in meeting rooms or classrooms.
How many touch points does this interactive display support?
This display supports up to 50 simultaneous touch points using HyPr Touch technology. This allows multiple users to interact with the screen at once, enabling collaborative activities like group annotation, drawing, and content manipulation without lag or interference.
Does the T086-P include built-in audio and microphone capabilities?
Yes, the T086-P includes an integrated audio system with two speakers and an eight-element microphone array, delivering 40W RMS output power. This built-in setup provides clear audio for presentations and captures voice input effectively, reducing the need for external audio equipment in meeting spaces.
Is this display compatible with VESA mounts?
Yes, the SMART Board T086-P is VESA mount compatible with an 800 x 600 standard. This allows for flexible installation on walls or compatible stands, making it easy to integrate into various room layouts and optimize viewing angles for collaborative environments.
What software is included with the T086-P interactive display?
The display includes SMART Meeting Pro, SMART Product Drivers, and SMART Ink software. These tools enhance collaboration by enabling interactive meeting features, seamless device integration, and digital ink capabilities for annotation and presentation tasks directly on the screen.
What connectivity options are available on the T086-P?
The T086-P offers comprehensive connectivity, including HDMI, two USB ports, Ethernet (RJ-45), Serial, and S/PDIF Out. These ports support connections to computers, media devices, networks, and audio systems, facilitating versatile use in professional and educational settings.
