SRGA40/W Sony 8. 5MP 4K Network Camera - White - Varifocal Lens 4. 4-88mm - H. 264/H. 265 - 3840 x 2160 - Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the SRGA40/W is a 1/2.5" Exmor R CMOS sensor that captures 8.5 megapixels of image data, translating to true 4K UHD resolution. The camera's varifocal lens provides a 20x optical zoom range from 4.4mm wide-angle to 88mm telephoto, allowing precise framing adjustments during installation. Aperture settings from f/2.0 to f/3.8 enable effective light control across varying illumination conditions.
Video processing leverages multiple H.264 and H.265 codec profiles to balance quality and compression, supporting real-time streaming at 60 fps. The camera includes a 3G-SDI output for direct analog video connectivity alongside its primary network interface. Fast Ethernet ensures reliable data transmission, while built-in remote management capabilities facilitate centralized monitoring and configuration.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SRGA40/W stands out with its combination of high-resolution imaging, flexible optics, and robust connectivity. Sony's Exmor R sensor technology ensures superior low-light performance and reduced noise, while the varifocal lens eliminates the need for multiple fixed-lens cameras in adjustable monitoring scenarios.
Advanced Imaging
The 8.5MP sensor captures fine details essential for identification and forensic review, supported by features like automatic white balance and auto gain control.
- 8.5 Megapixel resolution
- Exmor R CMOS sensor
- Day/Night functionality
Operational Flexibility
Dual power options and comprehensive mounting hardware allow installation in diverse environments, from retail spaces to industrial facilities.
- PoE and DC power
- Ceiling mount included
- Remote management capable
Deployment / Use Cases
This camera is ideal for environments requiring high-detail surveillance with adjustable coverage areas. Its 4K resolution and optical zoom make it suitable for monitoring large spaces like warehouses, parking lots, or auditoriums where both wide-area overview and specific spot detail are necessary.
The SRGA40/W excels in commercial security systems, educational campuses, and government facilities where evidence-grade video quality is mandated. Its PoE capability simplifies integration into existing network infrastructure, while the ceiling-mount design ensures discreet placement in lobbies, corridors, or retail ceilings.
Large-Area Monitoring
Use the wide 70-degree field of view and 4K resolution to cover expansive indoor or outdoor areas with fewer cameras, reducing overall system cost.
High-Security Applications
Deploy in locations requiring detailed facial recognition or license plate capture, leveraging the 8.5MP sensor and varifocal zoom for precise imaging.
Physical Profile
The SRGA40/W measures 7.24" H x 6.17" W x 7.87" D (184 x 156.7 x 200 mm) and weighs 4.41 lb (2000 g), presenting a compact yet substantial form factor designed for ceiling mounting. Its white finish offers a neutral appearance that integrates smoothly into most architectural environments. The camera operates reliably in temperatures up to 104°F (40°C), ensuring consistent performance in conditioned indoor spaces.
- Width
- 6.17" (156.70 mm)
- Depth
- 7.87" (200 mm)
- Height
- 7.24" (184 mm)
- Weight
- 4.41 lb (2000 g)
- Length
- 4.4 mm (0.17")
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- 8.5-megapixel Exmor R CMOS sensor for 4K UHD video
- Varifocal lens with 4.4mm to 88mm focal length and 20x optical zoom
- Records at 3840 x 2160 resolution with 60 fps frame rate
- Supports H.264 and H.265 video encoding for efficient storage
- Power over Ethernet (PoE) and 19.5V DC power options
- Ceiling mount design with included brackets and hardware
- 70-degree wide field of view for expansive coverage

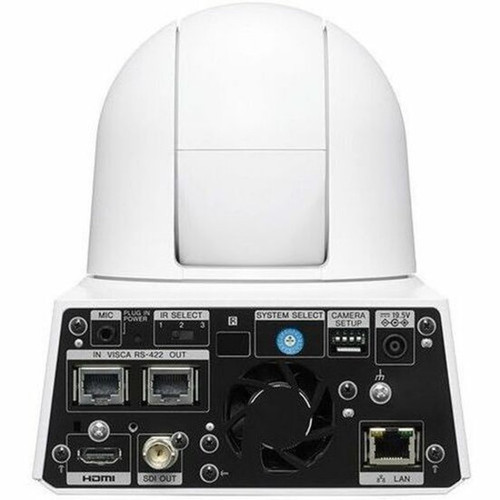

- 3G-SDI output for analog video connectivity
- Remote management capability for centralized control
- Operates in temperatures up to 104°F (40°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sony Corporation |
| Manufacturer Part Number | SRGA40W |
| Brand Name | Sony |
| Product Model | SRGA40 |
| Product Name | SRGA40 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Display & Graphics | |
| Image Sensor Type | Exmor R CMOS |
| Image Sensor Size | 1/2.5" |
| Color Supported | Color |
| Field of View | 70.0 degree (Wide) |
| Effective Camera Resolution | 8.5 Megapixel |
| Video | |
| Video Formats | H.264,H.264 (MP),H.264 BP,H.264 HP,H.265,H.265 (MP) |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 88 mm (3.46") |
| Lens Included | Yes |
| Minimum Aperture | f/3.8 |
| Maximum Aperture | f/2.0 |
| Optical Zoom | 20x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 19.5 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Ceiling Mount |
| Height | 7.24" (184 mm) |
| Width | 6.17" (156.70 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | PTZ,Automatic White Balance,Auto Gain Control,Built-in OSD Function,Day/Night |
| Package Contents | SRGA40 Network Camera 1 x AC power adaptor 1 x IR Remote Commander Unit 2 x Ceiling bracket 1 x Wire rope 9 x Screw M3 x8 1 x Screw M2.6 x6 BLACK 1 x HDMI cable fixing plate 1 x Safety regulation 1 x Download site information 1 x Warranty |
| Country of Origin | Thailand |
User Manual
FAQ
What resolution does the Sony SRGA40/W camera support?
The SRGA40/W captures 8.5-megapixel video at true 4K UHD resolution of 3840 x 2160 pixels. This high resolution provides exceptional detail for surveillance applications, allowing clear identification of subjects and objects even when zooming into recorded footage.
Does this camera include a lens, and what are its specifications?
Yes, the camera comes with a varifocal lens included. It offers a 20x optical zoom range from 4.4mm wide-angle to 88mm telephoto, with aperture settings from f/2.0 to f/3.8. This flexibility allows precise framing during installation without needing to change lenses.
What video encoding formats does the SRGA40/W support?
The camera supports multiple H.264 and H.265 codec profiles including H.264, H.264 (MP), H.264 BP, H.264 HP, H.265, and H.265 (MP). This range of formats provides flexibility for balancing video quality and bandwidth usage in different network environments.
How is the Sony SRGA40/W powered?
The camera offers dual power options: it can be powered via 19.5V DC input using the included AC adaptor, or through Power over Ethernet (PoE). PoE support simplifies installation by allowing power and data transmission over a single Ethernet cable.
What mounting options are available for this network camera?
The SRGA40/W is designed for ceiling mounting. The package includes two ceiling brackets, a wire rope, and all necessary screws for secure installation. The camera's white finish and compact dimensions help it blend discreetly into ceiling environments.
What is the field of view and frame rate of this camera?
The camera provides a 70-degree wide field of view, covering substantial area with its wide-angle setting. It records video at up to 60 frames per second at 4K resolution, ensuring smooth, real-time monitoring without motion blur in fast-moving scenes.
What processor does this product use?
Sony SRGA40 8.5 Megapixel 4K Network Camera - Color - White - H.264, H.264 (MP), H.264 BP, H.264 HP, H.265, H.265 (MP) - 3840 x 2160 - (SRGA40/W) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
