Sony VPLPHZ61 3LCD Projector - WUXGA 1920 x 1200 - 6400 lm Laser - Front Projection - HDMI/USB/Wireless LAN
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

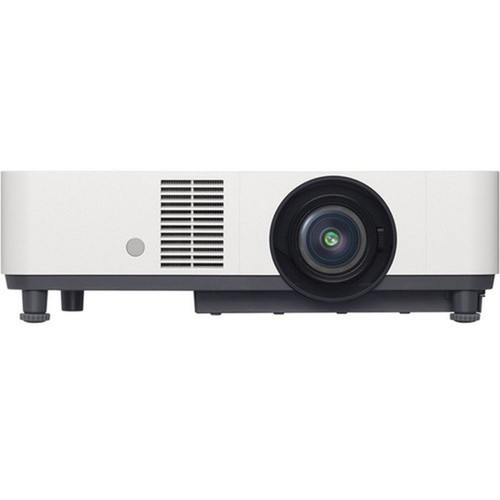

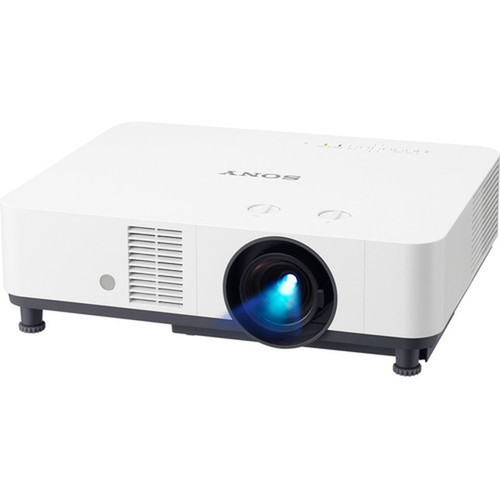

The Sony VPL-PHZ61 is a professional-grade 3LCD projector engineered for demanding environments where consistent, high-brightness projection is essential. With a laser diode light source delivering 6400 lumens, this front-projection unit maintains vivid image quality even in well-lit rooms or large venues.
Built around Sony's 3LCD imaging technology, the VPL-PHZ61 produces smooth, color-accurate visuals without color breakup artifacts. The WUXGA 1920x1200 native resolution provides ample pixel density for detailed presentations, schematics, and multimedia content, while the 16:10 aspect ratio accommodates both widescreen and traditional document formats.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
At the core of the VPL-PHZ61 is a laser diode light source that eliminates traditional lamp replacement cycles and delivers instant on/off operation. The 1.6x optical zoom lens provides installation flexibility, allowing precise image sizing from a fixed mounting position without digital interpolation.

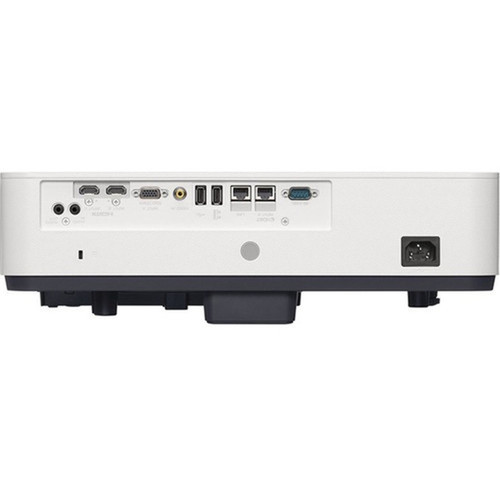

Connectivity is comprehensive with HDMI for high-definition video sources, USB for direct media playback or firmware updates, and built-in Wireless LAN for cable-free screen sharing from compatible devices. The wired Ethernet (RJ-45) port enables network monitoring and control via Crestron, AMX, or other management systems.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VPL-PHZ61 combines laser reliability with professional-grade brightness and connectivity, making it suitable for installations where maintenance access is limited or image consistency is critical.
Laser Longevity
The laser diode light source provides up to 20,000 hours of operation without lamp replacements, reducing total cost of ownership and minimizing downtime in permanent installations.
- 20,000-hour light source life
- Consistent brightness over time
- Instant on/off capability
Installation Flexibility
With 1.6x optical zoom, lens shift capabilities, and multiple mounting options, the projector adapts to various room geometries and screen sizes without compromising image quality.
- 1.6x optical zoom range
- Lens shift adjustment
- Ceiling mount compatible
Deployment / Use Cases
The VPL-PHZ61 is designed for fixed installations in environments where reliable, high-brightness projection supports daily operations. Its 6400-lumen output cuts through ambient light in large spaces, while the laser light source ensures consistent performance year after year.
In corporate meeting rooms and training facilities, the WUXGA resolution displays detailed spreadsheets, CAD drawings, and video conferences with clarity. Educational institutions benefit from the projector's durability and low maintenance in lecture halls and classrooms. Museums and galleries utilize the color-accurate 3LCD technology for artifact displays and interpretive media.
Corporate & Education
Ideal for boardrooms, training centers, and lecture halls where daily use demands reliability and bright, readable presentations even with lights on.
Cultural & Public Venues
Suitable for museums, visitor centers, and houses of worship where long operating hours and consistent color reproduction are essential for interpretive displays.
Physical Profile
The projector measures 16.61 inches wide by 13.31 inches deep by 5.08 inches high, with a weight of 15.43 pounds. This compact form factor facilitates installation in ceiling mounts, rear-projection cabinets, or portable carts. The chassis includes multiple mounting points compatible with standard projector brackets and includes ventilation designed for continuous operation in enclosed spaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.08" (129 mm), 16.61" (422 mm), 13.31" (338 mm), 15.43 lb (7000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.61" (422 mm)
- Depth
- 13.31" (338 mm)
- Height
- 5.08" (129 mm)
- Weight
- 15.43 lb (7000 g)
Highlights
- 6400 lumen brightness for well-lit rooms and large venues
- Laser diode light source with 20,000-hour lifespan
- WUXGA 1920x1200 native resolution with 16:10 aspect ratio
- 3LCD imaging technology for smooth, color-accurate projection
- 1.6x optical zoom lens for installation flexibility
- HDMI, USB, Wireless LAN, and Ethernet connectivity
- Network management via RJ-45 for remote monitoring
- Designed for meeting rooms, classrooms, and museum installations
- Compact chassis with multiple mounting options
- 463W operating power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sony Corporation |
| Manufacturer Part Number | VPLPHZ61 |
| Brand Name | Sony |
| Product Model | VPL-PHZ61 |
| Product Name | VPL-PHZ61 3LCD Projector |
| Product Type | 3LCD Projector |
| Technical Information | |
| Projection Method | Front |
| Display & Graphics | |
| Native Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Maximum Resolution | 1920 x 1200 |
| Native Aspect Ratio | 16:10 |
| Projection Lens | |
| Maximum Diagonal Image Size | 25 ft (7620 mm) |
| Optical Zoom | 1.6x |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser Diode |
| Image | |
| Standard Mode Brightness | 6400 lm |
| Network & Communication | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 463 W |
| Physical Characteristics | |
| Height | 5.08" (129 mm) |
| Width | 16.61" (422 mm) |
| Depth | 13.31" (338 mm) |
| Weight (Approximate) | 15.43 lb (7000 g) |
| Miscellaneous | |
| Application/Usage | Meeting,Class Room,Museum |
User Manual
FAQ
What is the brightness output of the Sony VPL-PHZ61 projector?
The Sony VPL-PHZ61 delivers 6400 lumens in standard mode. This high brightness level ensures vivid, readable projections even in environments with significant ambient light, such as conference rooms with windows or large auditoriums with partial lighting.
What type of light source does this projector use?
This projector uses a laser diode light source instead of traditional lamps. Laser technology provides consistent brightness over time, instant on/off capability, and an extended operational life of approximately 20,000 hours, eliminating frequent lamp replacements.
What is the native resolution and aspect ratio?
The native resolution is 1920 × 1200 pixels, which is WUXGA format. The aspect ratio is 16:10, making it well-suited for both widescreen content and traditional documents or presentations that benefit from additional vertical screen real estate.
What connectivity options are available?
The VPL-PHZ61 includes HDMI for high-definition video sources, USB for direct media playback or firmware updates, built-in Wireless LAN for cable-free screen sharing, and a wired Ethernet (RJ-45) port for network management and control via protocols like Crestron or AMX.
Is this projector suitable for permanent ceiling installation?
Yes, the VPL-PHZ61 is designed for permanent installation with multiple mounting points compatible with standard projector brackets. Its compact dimensions (16.61" W × 13.31" D × 5.08" H) and 15.43 lb weight make it suitable for ceiling mounts, rear-projection cabinets, or integrated AV furniture.
What is the maximum image size this projector can display?
The projector can display a maximum diagonal image size of 25 feet (7620 mm). Combined with the 1.6x optical zoom lens, this allows for flexible placement relative to the screen while maintaining sharp focus and image quality across various room sizes.
