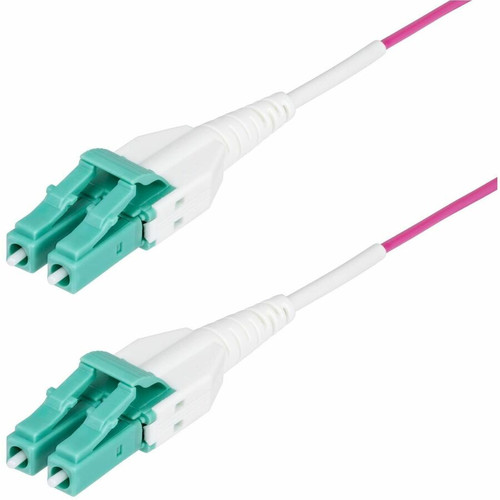

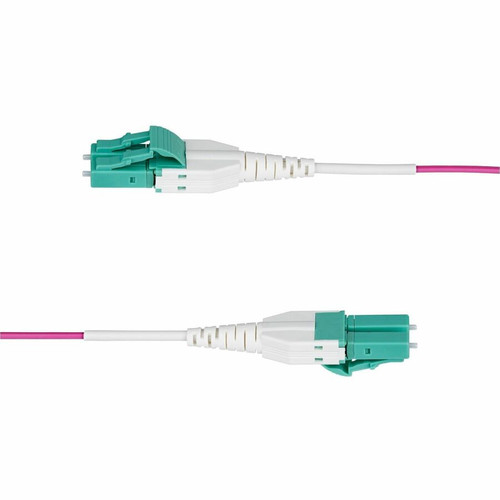

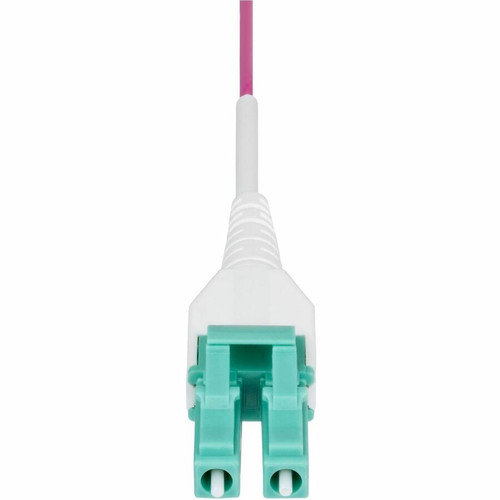

StarTech.com 1m (3.3ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable, Erika Violet, 50/125, 100G, Uniboot Fiber Jumper Cord, OFNR - (OM4RLCLC1M)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Type: Duplex
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Fiber Category: OM4
Cable Length: 3.3 ft (1 m)
Connector Type on First End: LC/UPC Network - Male
Connector Gender on First End: Male
Connector on First End Details: 2 x LC/UPC Network - Male
Connector Type on Second End: LC/UPC Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 2 x LC/UPC Network - Male
Jacket Type: OFNR,Riser
Device Supported: Network Device,Switch,Server,Transceiver
Data Transfer Rate: 100 Gbit/s
Features: Uniboot Connector,UPC Polished Connector,Strain Relief,Wear Resistant,Laser-optimized,Flame Retardant,EMI Protection
Color Family: Purple
Product Color: Erika Violet
Jacket Color: Erika Violet
Jacket Material: Polyvinyl Chloride (PVC)
Application/Usage: Commercial
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: Lifetime
- ERIKA VIOLET OM4: OM4 multimode fiber cable is immune to EMI and supports up to 100Gbps; Erika Violet jacket is TIA-standardized for OM4, avoiding OM3/OM4 confusion with Aqua cables; Compact uniboot design enhances airflow & access in dense installations
- QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded strain reliefs minimize wear from bending; Protective Aramid yarn for increased tensile strength
- SAFETY AND RELIABILITY: Each cable is individually tested for guaranteed OM4 performance and includes a test report; OFNR riser-rated cable jacket minimizes flame spread between floors in riser spaces; Attenuation value of 3dB/km meets TIA standards
- WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps full duplex transmission; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers
- SPECS: 1-meter (3.3-foot); Color: Erika Violet (OM4); LC/LC UPC; 50/125µm; 850nm/1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; OFNR (Riser) Jacket; Cable OD: 1.6mm; Min Bend Radius: 7.5mm (0.29in)
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | OM4RLCLC1M |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Category | OM4 |
| Cable Length | 3.3 ft (1 m) |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector Type on Second End | LC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x LC/UPC Network - Male |
| Jacket Type | OFNR,Riser |
| Device Supported | Network Device,Switch,Server,Transceiver |
| Data Transfer Rate | 100 Gbit/s |
| Features | Uniboot Connector,UPC Polished Connector,Strain Relief,Wear Resistant,Laser-optimized,Flame Retardant,EMI Protection |
| Physical Characteristics | |
| Color Family | Purple |
| Product Color | Erika Violet |
| Jacket Color | Erika Violet |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Application/Usage | Commercial |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
