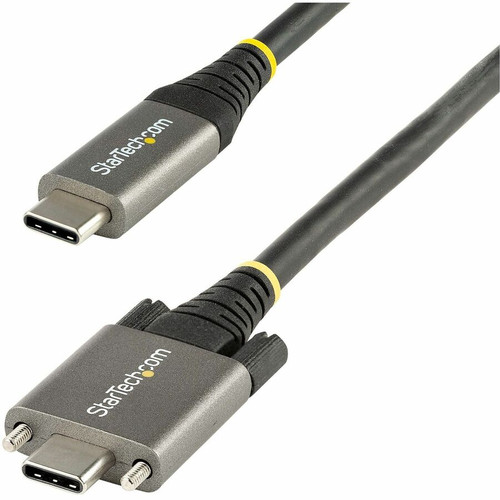

StarTech.com 20" 50cm Side Screw Locking USB C Cable 10Gbps, USB 3.1 Type-C Cable, 5A/100W PD, DP Alt Mode, Dual Screw Lock USB-C Cord (USB31CCSLKV50CM)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- DK31C3HDPD
- DK31C3HPD
Cable Type: USB-C
Cable Length: 1.6 ft (0.50 m)
Connector Type on First End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 24-pin USB 3.2 (Gen 2) Type C - Male
Connector Type on Second End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 24-pin USB 3.2 (Gen 2) Type C - Male
Connector Plating: Gold
Shielding: Yes
Device Supported: Notebook,MacBook,Docking Station,Peripheral Device,Hard Drive,Wall Charger,Monitor,Mobile Device,Hard Disk Drive Enclosure,Storage Device
American Wire Gauge: 30/32 AWG
Data Transfer Rate: 10 Gbit/s
Features: Screw Lock,Power Delivery 3.0,Charging,Flexible,Strain Relief,Bendable,EMI Protection,Lockable,Halogen Free
Product Color: Gray,Black
Jacket Material: Thermoplastic Elastomer (TPE)
Compatibility: Startech Docking Stations:
Microsoft Surface Book
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 2 Year
- HIGH PERFORMANCE CABLE: The 20" (50cm) Side Screw Locking USB C to C cable complies with USB 3.2 Gen 2 SuperSpeed (10Gbps); USB-C cable supports DisplayPort 1.4 Alt mode up to 8K 30Hz & up to 100W (5A) Power Delivery 3.0; Thunderbolt 3 compatible
- DURABLE BUILD: Locking USB C Cable is tested to withstand 10000+ insertions & 4000+ bend cycles at 120° angle; Long lasting flexible TPE jacket & strain relief; TPE is non-toxic, halogen free & RoHS certified for environmental sustainability;
- QUALITY CONSTRUCTION: 32 AWG conductors; Al-Mylar foil with 85% Braid coverage EMI Shield for improved signal integrity; M2 screws (1.2"/30.5mm long) with knurled grip for easy installation/removal; Charging USB C Cord works with USB 3.0 & earlier versions
- APPLICATIONS: USB Type-C cable for docking stations w/ dual side locking USB C port like StarTech.com's DK31C3HDPD; Removable screw for hard drive enclosures & external storage devices; Charge a TB3/USBC workstation laptop MacBook/Surface Book/ThinkPad
- SPECS: 20 inch (50 centimeter)
USB 3.2/3.1 Gen 2 10Gbps data transfer
PD 3.0, 20V (max), 5A (max)
USB C Screw Locking Male to USB C Male
0.19" (4.8 mm) Outer Diameter, 32 AWG
Jacket: TPE
EMI Shield: Al-Mylar Foil, Braid
2-Year waranty
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB31CCSLKV50CM |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 50 cm Side Screw Locking USB-C Gen 2 10Gbps Cable |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | USB-C |
| Cable Length | 1.6 ft (0.50 m) |
| Connector Type on First End | USB 3.2 (Gen 2) Type C - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 24-pin USB 3.2 (Gen 2) Type C - Male |
| Connector Type on Second End | USB 3.2 (Gen 2) Type C - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 24-pin USB 3.2 (Gen 2) Type C - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Notebook,MacBook,Docking Station,Peripheral Device,Hard Drive,Wall Charger,Monitor,Mobile Device,Hard Disk Drive Enclosure,Storage Device |
| American Wire Gauge | 30/32 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Screw Lock,Power Delivery 3.0,Charging,Flexible,Strain Relief,Bendable,EMI Protection,Lockable,Halogen Free |
| Physical Characteristics | |
| Product Color | Gray,Black |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Miscellaneous | |
| Compatibility | Startech Docking Stations:
Microsoft Surface Book |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
