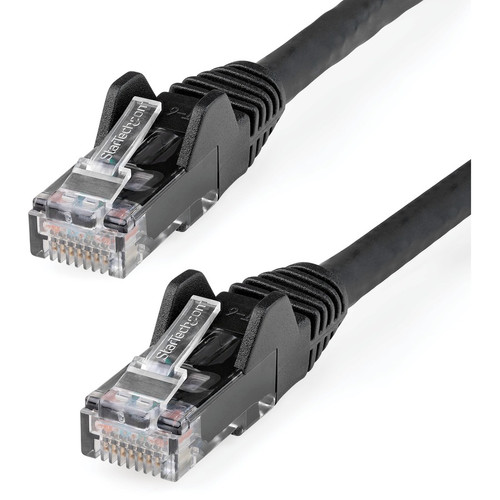

StarTech. com N6LPATCH3BK 3ft CAT6 Ethernet Cable - LSZH Snagless 10GbE 100W PoE++ UTP RJ45 Black Patch Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6 cable complies with ANSI/TIA-568-2.D Category 6 requirements and is ETL verified to ensure consistent performance. It features 24 AWG stranded copper wiring, which provides flexibility and durability for frequent movement in patch panel applications. The gold-plated contacts enhance signal integrity and corrosion resistance, supporting stable connections over time.

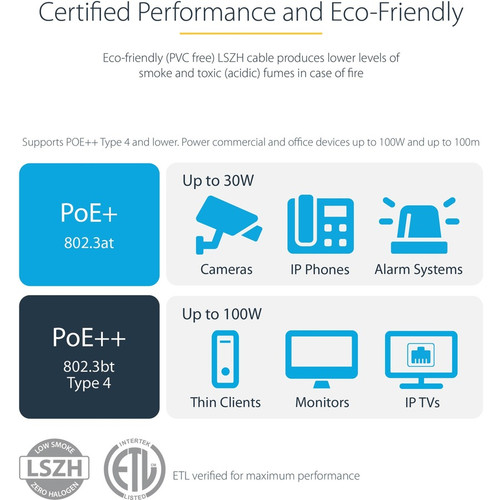

The cable supports Power over Ethernet (PoE) applications up to 100W, compliant with IEEE 802.3bt Type 4 (PoE++). This capability allows it to deliver both data and power to PoE-enabled devices such as VoIP phones, security cameras, and wireless access points, simplifying cable management and reducing installation costs.
Key Product Advantages
This Ethernet cable combines robust construction with advanced features to meet the needs of professional IT deployments. The LSZH jacket not only enhances safety but also resists bending, fraying, and damage, ensuring longevity in high-traffic network environments.
High-Performance Data Transfer
Supports multi-gigabit speeds including 1, 2.5, 5, and 10 Gbps, with low near-end crosstalk (NEXT) and return loss for error-free data transmission.
- 10 Gbps up to 55m
- Backward compatible with Cat5e
- 250 MHz rated
Enhanced Durability & Safety
The EVA copolymer jacket with aluminum hydroxide filler provides fire resistance and flexibility, while the snagless boot prevents connector damage.
- Fire-resistant LSZH material
- Strain relief design
- Bend and fray resistant
Deployment / Use Cases
This patch cable is ideal for connecting network equipment in data centers, office environments, and industrial settings. Its 3-foot length makes it perfect for short runs between switches, routers, and end devices, reducing cable clutter and improving airflow in rack installations.
Common applications include linking servers to network switches, connecting PoE devices like IP cameras and VoIP phones, and patching workstations or notebooks to wall outlets. The cable's compatibility with a wide range of devices—from NAS units and IPTV systems to network cards and security cameras—ensures versatility across different network segments.
Data Center & Server Room
Use for high-density patching in racks where reliable 10GbE connections and PoE support are required for network devices and servers.
Office & Commercial Networks
Deploy for connecting workstations, printers, and VoIP equipment, with the LSZH jacket meeting safety standards for enclosed spaces.
Physical Profile
The cable features a sleek black design that blends with most network environments. It weighs approximately 1.80 ounces (51.03 grams), making it lightweight and easy to manage. The U/UTP (unshielded twisted pair) construction with four pairs of copper wires ensures reliable performance without the need for additional shielding in typical office settings.
- Weight
- 1.80 oz (51.03 g)
- Length
- 3 ft (0.91 m)
Highlights

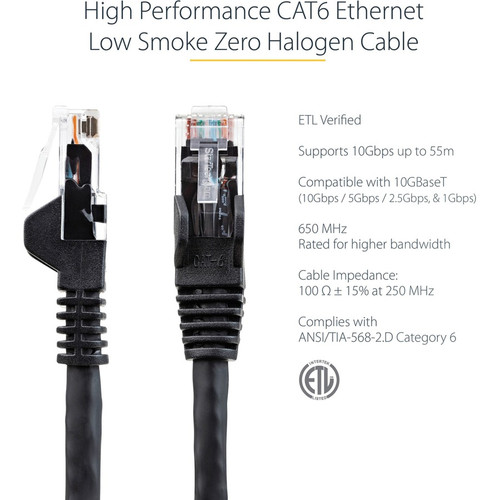

- 3-foot CAT6 Ethernet patch cable with LSZH (Low Smoke Zero Halogen) jacket for enhanced safety.
- Supports 10 Gbps data transfer speeds up to 55 meters, backward compatible with Cat5e and earlier standards.
- 100W PoE++ (IEEE 802.3bt Type 4) support for powering devices like cameras, phones, and access points.
- ETL verified to ANSI/TIA-568.2-D standards with 100% copper conductors for reliable performance.

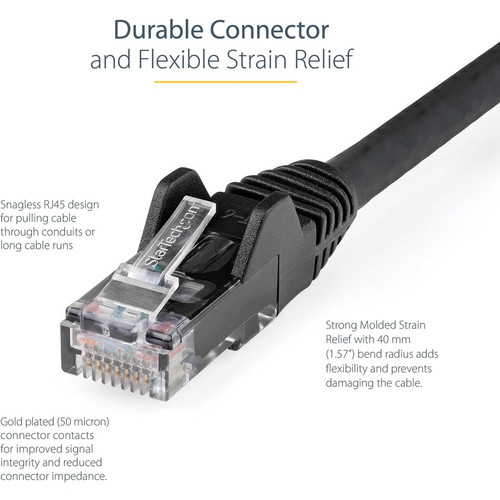

- Snagless boot design prevents accidental disconnection and protects RJ45 connectors.
- Gold-plated contacts improve signal integrity and resist corrosion.
- 24 AWG stranded copper wiring provides flexibility and durability for frequent handling.
- Eco-friendly construction complies with EU RoHS, REACH, and WEEE directives.
- Black color with U/UTP structure suitable for professional network installations.
- Lifetime warranty ensures long-term reliability and peace of mind.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6LPATCH3BK |
| Brand Name | StarTech.com |
| Product Name | 3ft LSZH CAT6 Ethernet Cable - Black Snagless Patch Cord |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 3 ft (0.91 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | No |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Router,VoIP Device,PoE-enabled Device,Notebook,Security Camera,NAS,Workstation,Network Card,IPTV |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Features | PoE,Stranded,PoE++,Near End Cross Talk (NEXT),Molded,Strain Relief,Flexible,Damage Resistant,Crosstalk Protection,Bend Resistant,Fray Resistant,Fire Resistant |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Copper |
| Insulation Material | High-density Polyethylene (HDPE) |
| Weight (Approximate) | 1.80 oz (51.03 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed supported by this CAT6 cable?
This cable supports data transfer rates up to 10 Gbps (10 Gigabit per second) over distances up to 55 meters. It is also backward compatible with lower speeds including 1, 2.5, and 5 Gbps, making it suitable for multi-gigabit network environments and future upgrades.
Does this Ethernet cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet up to 100W, compliant with IEEE 802.3bt Type 4 (PoE++). It can deliver both data and power to PoE-enabled devices such as VoIP phones, security cameras, wireless access points, and other network equipment, simplifying installations by reducing the need for separate power cables.
What does LSZH mean, and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that produces minimal smoke and no toxic halogen gases when exposed to fire. This enhances safety in enclosed spaces like data centers or office buildings by reducing hazardous fumes, and it complies with environmental and safety regulations such as EU RoHS and WEEE directives.
What types of devices are compatible with this patch cable?
This cable is compatible with a wide range of network devices including servers, routers, switches, VoIP devices, PoE-enabled equipment, notebooks, security cameras, NAS units, workstations, network cards, and IPTV systems. Its standard RJ45 connectors ensure broad interoperability with most Ethernet-based hardware.
What is the warranty for this StarTech.com Ethernet cable?
StarTech.com provides a lifetime warranty for this CAT6 Ethernet cable, covering defects in materials and workmanship for the product's lifespan. This warranty reflects the cable's durable construction and reliability, offering long-term assurance for professional and commercial deployments.
Is this cable shielded, and what are the connector details?
This cable is unshielded (U/UTP), which is sufficient for most office and data center environments. It features two male RJ45 connectors with gold-plated contacts for improved signal integrity. The snagless boot design protects the connectors from damage and prevents accidental disconnection during use.
