StarTech. com DP2DVIMM6BS Active DisplayPort 1. 2 to DVI-D Adapter Cable - 6ft - 1. 8m - 1080p/1920 x 1200 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

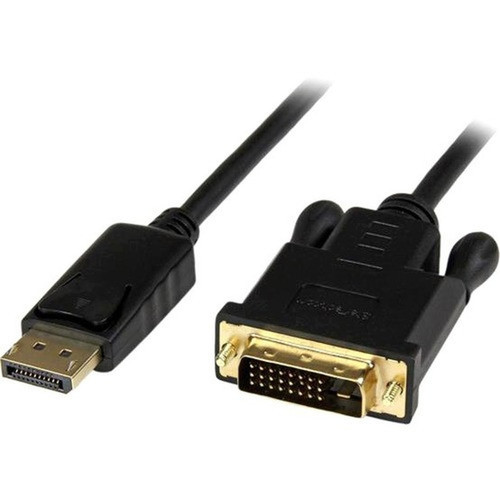

This adapter cable features a DisplayPort 1.2 male connector with a 20-pin configuration on one end and a DVI-D single-link male connector with a 25-pin configuration on the other. The active conversion technology handles the signal conversion between DisplayPort and DVI-D formats, supporting high-bandwidth digital video without compression loss.
The cable incorporates several technical features to ensure reliable performance. The latching DisplayPort connector provides a secure connection to the source device, while the screw-lock DVI connector prevents accidental disconnection from the display. The flexible cable design and integrated chip minimize signal degradation over the 6-foot length.
This section brings together practical product details such as Cable Type, Cable Length, Connector Type on First End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This DisplayPort to DVI adapter cable offers distinct advantages over passive adapters and separate cable-adapter combinations. The integrated active converter chip built directly into the DVI connector eliminates the need for additional dongles, creating a cleaner installation with fewer connection points that could fail.
Universal Compatibility
Works with DisplayPort and DisplayPort++ sources including AMD and NVIDIA graphics cards, workstations, desktop computers, laptops, and docking stations. No software or drivers are required for operation.
- Supports Windows, macOS, and Ubuntu
- Compatible with multi-mode DisplayPort++ sources
- EDID pass-through ensures proper display recognition
Secure Connection Design
The latching DisplayPort connector maintains a solid connection to the host device, while the screw-lock DVI connector prevents the cable from coming loose during normal use or accidental tugs.
- Latching DP connector for secure attachment
- Screw-lock DVI for vibration resistance
- Reduced signal loss with integrated chip design
Deployment / Use Cases
This active DisplayPort to DVI cable is ideal for extending the lifespan of DVI-equipped displays in modern computing environments. Many professional workstations, business desktops, and corporate laptops now feature DisplayPort outputs, while conference rooms, training facilities, and older workstations may still utilize DVI inputs on monitors and projectors.
Common deployment scenarios include connecting newer laptops with DisplayPort outputs to older DVI monitors in office settings, integrating modern graphics cards into multi-monitor setups that include legacy displays, and extending workstation capabilities to DVI projectors in presentation environments. The 6-foot length provides flexibility for cable routing behind desks or through cable management systems while maintaining signal integrity.
Physical Profile
The cable features a slim, flexible black jacket that blends discreetly with office furniture and computer equipment. Weighing just 3.70 ounces (104.89 grams), the lightweight design minimizes strain on display and computer ports while allowing for neat cable management. The black color coordinates with most professional computing equipment and display bezels.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.70 oz (104.89 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 3.70 oz (104.89 g)
- Length
- 6 ft (1.83 m)
Highlights
- Active DisplayPort 1.2 to DVI-D conversion in a single integrated cable
- 6-foot (1.8m) length provides flexible placement options
- Supports resolutions up to 1920x1200 (1080p) at 60Hz
- Latching DisplayPort connector ensures secure source connection
- Screw-lock DVI connector prevents accidental disconnection
- No drivers or software required - works with Windows, macOS, Ubuntu
- EDID pass-through maintains proper display communication
- Compatible with DisplayPort and DisplayPort++ sources
- Integrated converter chip reduces desktop clutter
- 3-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2DVIMM6BS |
| Brand Name | StarTech.com |
| Product Name | Active DisplayPort to DVI Adapter |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable Adapter |
| Technical Information | |
| Cable Type | DisplayPort/DVI-D |
| Cable Length | 6 ft (1.83 m) |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D (Single-Link) Digital Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 25-pin DVI-D (Single-Link) Digital Video - Male |
| Device Supported | Video Device,TV,Notebook,Monitor,Projector,Graphics Card,HDTV,Desktop Computer,Docking Station,Workstation |
| Supported Resolution | 1920 x 1200 |
| Features | Active,Extended Display Identification Data (EDID),Latching Connector,Screw Lock,Multi-mode DisplayPort,Flexible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 3.70 oz (104.89 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the difference between this active cable and a passive DisplayPort to DVI adapter?
This is an active DisplayPort to DVI cable with the conversion chip built directly into the DVI connector, while passive adapters rely on the source device to handle signal conversion. The active design ensures compatibility with both standard DisplayPort and DisplayPort++ sources, supports higher resolutions, and includes EDID pass-through for proper display communication. Passive adapters may only work with DisplayPort++ sources and often have more limited resolution support.
What resolution does this DisplayPort to DVI cable support?
The StarTech.com DP2DVIMM6BS supports resolutions up to 1920 x 1200 at 60Hz, which includes standard 1080p (1920x1080) resolution. This makes it suitable for connecting modern computers to HD monitors, projectors, and displays with DVI inputs. The active conversion technology maintains signal integrity at these resolutions over the full 6-foot cable length.
Does this cable require any software or drivers to work?
No software or drivers are required for this DisplayPort to DVI adapter cable. It functions as a plug-and-play solution that works immediately when connected between a DisplayPort source and DVI display. The cable is compatible with Windows, macOS, and Ubuntu operating systems without any additional configuration or installation.
What types of devices can I connect with this DisplayPort to DVI cable?
You can connect DisplayPort sources including workstations, desktop computers with AMD or NVIDIA graphics cards, laptops, small form factor computers, and docking stations to DVI displays such as monitors, projectors, HDTVs, and professional video devices. The cable supports both standard DisplayPort and multi-mode DisplayPort++ sources for broad compatibility across different hardware generations.
How does the EDID pass-through feature work with this cable?
The EDID (Extended Display Identification Data) pass-through feature allows the cable to communicate display capabilities from the monitor to the source device. This ensures the computer or graphics card properly identifies the connected display's supported resolutions, refresh rates, and timing information. Without EDID pass-through, displays might default to lower resolutions or incorrect refresh rates, potentially causing compatibility issues.
What is the warranty period for this DisplayPort to DVI adapter cable?
StarTech.com provides a 3-year limited warranty for the DP2DVIMM6BS DisplayPort to DVI adapter cable. This warranty covers defects in materials and workmanship under normal use. The product also complies with EU RoHS, REACH, and WEEE environmental regulations, reflecting StarTech.com's commitment to quality and environmental responsibility in their cable products.
What resolution or display format is specified?
It features a display specification of 1920 x 1200, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
