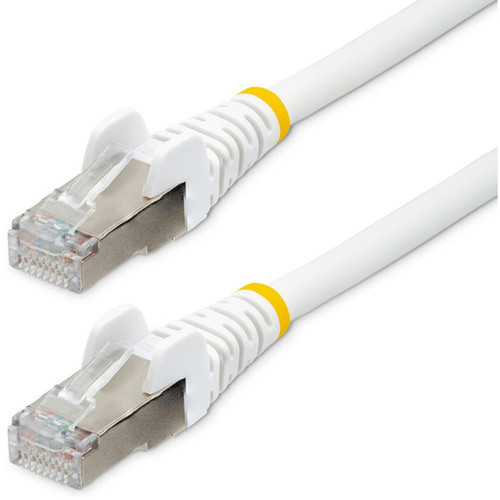

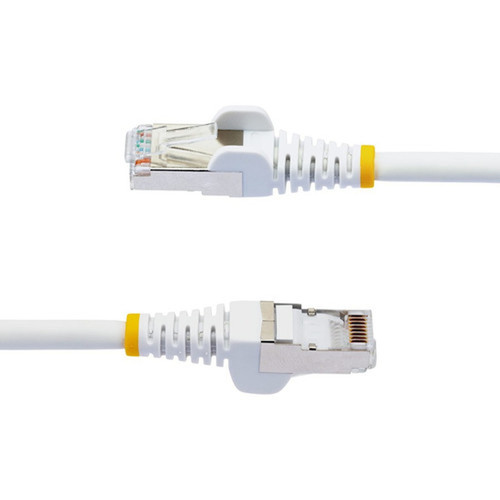

StarTech. com NLWH-8F-CAT6A-PATCH 8ft CAT6a Ethernet Patch Cable - White LSZH S/FTP Shielded 10GbE 100W PoE++ Snagless RJ-45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT6a patch cable meets ANSI/TIA-568.2-D standards and is ETL verified, ensuring compliance with industry specifications for performance and safety. The 100% stranded copper conductors (27 AWG) maintain signal integrity over the full 8-foot length, supporting multi-gigabit speeds from 1Gbps to 10Gbps. The four-pair design minimizes near-end crosstalk (NEXT) and return loss, which is critical for maintaining data accuracy in high-speed networks.
The gold-plated RJ-45 connectors provide reliable connectivity with corrosion resistance, while the snagless boot design prevents accidental disconnection in crowded patch panels. The cable's shielding architecture—combining foil around each pair and a braided overall shield—effectively blocks external noise, making it ideal for environments with high EMI/RFI interference. PoE++ compliance with IEEE 802.3bt (Type 4) ensures stable power delivery up to 100W for devices like IP cameras, wireless access points, and VoIP phones.
Key Product Advantages
This cable combines several advanced features that set it apart from standard patch cables. The S/FTP shielding provides exceptional noise immunity, which is essential for maintaining signal integrity in data centers, industrial settings, or offices with dense electronic equipment. The LSZH jacket not only meets environmental standards but also enhances safety by reducing toxic smoke emission in case of fire.
Enhanced Durability
The braided construction and strain reliefs resist damage from bending and pulling, extending the cable's lifespan in high-traffic installations.
- Snagless molded boots
- Bend-resistant design
- Damage-resistant jacket
Power over Ethernet Ready
Supports PoE++ (IEEE 802.3bt) for delivering up to 100W of power alongside data, eliminating the need for separate power cables to connected devices.
- Compatible with PoE, PoE+
- Stable power delivery
- Reduced cable clutter
Deployment / Use Cases
This CAT6a patch cable is designed for a wide range of networking scenarios where reliability, speed, and safety are paramount. Its 10GbE capability makes it suitable for connecting switches, routers, servers, and storage devices in data centers or enterprise networks that require high bandwidth for applications like virtualization, video streaming, or large file transfers.
The PoE++ support expands its utility to power-hungry devices such as PTZ cameras, high-performance wireless access points, and digital signage. The LSZH jacket and shielding make it an excellent choice for installations in plenum spaces, industrial environments, or areas with strict fire safety regulations. Common use cases include patch panels in server racks, direct device connections in office setups, and backbone links in small to medium-sized business networks.
Data Center Applications
Ideal for high-density server racks and network switches where EMI protection and 10GbE speeds are critical for uninterrupted operations.
PoE Deployments
Perfect for powering and connecting IP cameras, VoIP phones, and wireless access points in security systems or office networks.
Physical Profile
The cable features a clean white LSZH jacket that blends well with modern office or data center aesthetics. With a weight of approximately 3.20 oz (90.72 g), it is lightweight yet robust, ensuring easy handling during installation. The snagless boots and flexible design allow for neat cable management in tight spaces, reducing clutter and improving airflow in rack environments.
- Weight
- 3.20 oz (90.72 g)
- Length
- 8 ft (2.44 m)
Highlights
- 8-foot CAT6a Ethernet patch cable for 10GbE network speeds
- S/FTP shielded construction with foil and braid for EMI/RFI protection
- Supports PoE++ up to 100W (IEEE 802.3bt compliant)
- Low Smoke Zero Halogen (LSZH) jacket for enhanced fire safety

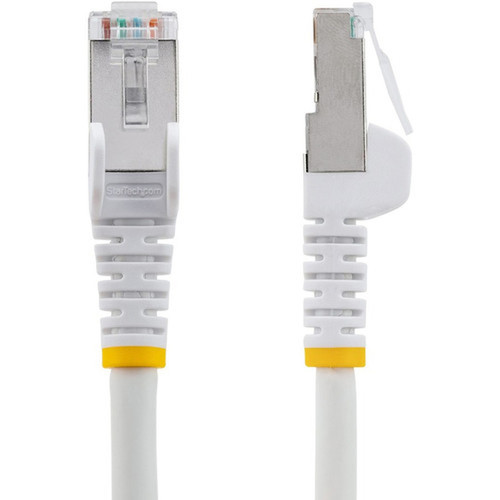

- Gold-plated RJ-45 connectors with snagless molded boots
- 100% stranded copper conductors (27 AWG) for reliable performance
- ETL verified and meets ANSI/TIA-568.2-D standards
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-8F-CAT6A-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.6a S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 8 ft (2.44 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 27 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless,Molded |
| Number of Pairs | 4 |
| Features | PoE,PoE++,Stranded,EMI/RF Protection,Snag Resistant,Strain Relief,Minimized Near-End Crosstalk (NEXT),PVC Free,Damage Resistant,Bend Resistant,Noise Protection,Latch Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Copper,Ethylene Vinyl Acetate (EVA),Aluminum Hydroxide |
| Shielding Material | Foil |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data transfer speed supported by this cable?
This CAT6a cable supports data transfer rates up to 10 Gbit/s (10GbE), making it suitable for multi-gigabit network applications. It is backward compatible with Cat6, Cat5e, and earlier standards, providing flexibility for various network speeds from 1Gbps to 10Gbps.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable fully supports Power over Ethernet, including PoE++ (IEEE 802.3bt Type 4), delivering up to 100W of power. This allows it to power devices like IP cameras, wireless access points, and VoIP phones while transmitting data, reducing the need for separate power cables.
What does S/FTP shielding mean for this cable?
S/FTP shielding refers to a construction where each twisted pair is individually wrapped in foil (FTP), and an overall braided shield (S) covers the entire cable. This dual-layer shielding provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity in noisy environments.
Why is the LSZH jacket important for network installations?
The Low Smoke Zero Halogen (LSZH) jacket produces less dense and less corrosive smoke compared to traditional PVC jackets in the event of a fire. This enhances safety in enclosed spaces like data centers or plenum areas, making it compliant with stricter fire safety regulations and reducing health risks.
What are the connector types on this patch cable?
Both ends of the cable feature RJ-45 male connectors with gold-plated contacts for reliable connectivity and corrosion resistance. The connectors include snagless molded boots that prevent accidental disconnection in crowded patch panels and provide strain relief for added durability.
Is this cable tested and certified for performance?
Yes, this cable is ETL verified and tested to meet ANSI/TIA-568.2-D standards, ensuring it performs reliably in accordance with industry specifications. It has been Fluke tested for parameters like near-end crosstalk (NEXT) and return loss, guaranteeing high-quality performance in professional network deployments.
