StarTech. com LOOPBACKMTPSM9125F StarTech MPO-8 Female Single Mode 9/125 Fiber Loopback Plug - MPO/MTP Female Loopback Tester
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This loopback plug delivers accurate test performance with insertion loss below 0.35dB and repeatability within 0.2dB, ensuring reliable results across repeated connections. The return loss exceeds 50dB, minimizing back-reflection for stable signaling in single mode 9/125 fiber applications.
Built to IEC standards and RoHS compliance, it supports testing of fixed alignment pin male MPO interfaces. The compact form factor measures 0.80" wide by 0.30" high, weighing just 0.10 oz for easy portability in toolkits.
Relevant factors for this section include Device Function, Color Family, Product Color, Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This loopback plug combines precision engineering with practical durability for demanding network testing scenarios. The high-precision ceramic ferrules ensure reliable contact and signal integrity, while the ABS housing withstands frequent use in field and lab environments.
Reliable Fiber Testing
Creates loopback connections for testing male MPO interfaces with fixed alignment pins, verifying continuity in 8-fiber MPO/MTP cables and interfaces.
- Tests male MPO/MTP cables
- Verifies patch panel performance
- Checks transceiver functionality
Accurate Performance
Maintains precise signaling with low insertion loss and high return loss, ensuring consistent and repeatable test results.
- Insertion loss below 0.35dB
- Return loss above 50dB
- Repeatability within 0.2dB
Durable Construction
Features ceramic ferrules and ABS housing optimized for multiple test cycles, compliant with IEC and RoHS standards for regulated environments.
- Ceramic ferrule precision
- ABS housing durability
- IEC and RoHS compliance
Deployment / Use Cases
This loopback plug is essential for network technicians and IT professionals performing fiber optic cable testing and troubleshooting. Its compact design makes it ideal for on-site diagnostics, allowing quick verification of cable continuity and interface performance in data centers, enterprise networks, and telecommunications installations.
Common use cases include testing MPO/MTP patch panels, verifying transceiver functionality, isolating faults in fiber links, and performing routine maintenance checks. The tool supports single mode 9/125 fiber applications, making it suitable for long-distance and high-bandwidth network environments where signal integrity is critical.
Relevant factors for this section include Device Function, Color Family, Product Color, Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

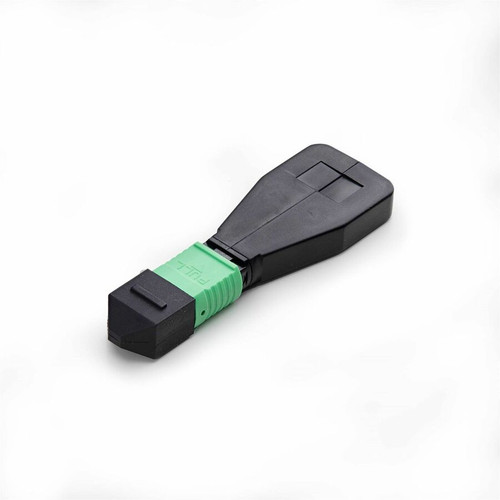

The loopback plug features a dual-color black and green ABS housing with dimensions of 0.80" wide by 0.30" high (20.32 × 7.62 mm). Weighing just 0.10 oz (2.83 g), its lightweight and compact design ensures easy handling and storage in tool bags or cases. The durable construction withstands regular use in field testing scenarios while maintaining precise alignment for reliable connections.
- Width
- 0.80" (20.32 mm)
- Height
- 0.30" (7.62 mm)
- Weight
- 0.10 oz (2.83 g)
Highlights
- MPO-8 female connector for testing male MPO interfaces with fixed alignment pins
- Single mode 9/125 fiber compatibility for long-distance applications
- Insertion loss below 0.35dB ensures accurate signal testing
- Return loss above 50dB minimizes back-reflection for stable signaling
- Repeatability within 0.2dB across multiple connections
- High-precision ceramic ferrules in durable ABS housing
- Compact dimensions: 0.80" W × 0.30" H (20.32 × 7.62 mm)
- Lightweight at 0.10 oz (2.83 g) for easy portability
- RoHS and TAA compliant for regulated environments
- Includes protective dust cap for field use
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | LOOPBACKMTPSM9125F |
| Brand Name | StarTech.com |
| Product Name | LOOPBACKMTPSM9125F |
| Packaged Quantity | 1 |
| Product Type | Fiber Optic Loopback |
| Technical Information | |
| Device Function | Fiber Optic Cable Testing,Network Testing,Network Troubleshoot |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Green |
| Height | 0.30" (7.62 mm) |
| Width | 0.80" (20.32 mm) |
| Weight (Approximate) | 0.10 oz (2.83 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What type of fiber does this loopback plug support?
This loopback plug supports single mode 9/125 fiber, which is commonly used for long-distance and high-bandwidth applications in data centers and telecommunications networks. Single mode fiber provides lower signal attenuation and higher bandwidth compared to multimode fiber, making this tool suitable for testing critical network infrastructure where signal integrity is paramount.
What MPO connector type does this loopback plug use?
It uses an MPO-8 female connector designed to test male MPO interfaces with fixed alignment pins. The MPO-8 configuration supports 8 fibers, allowing comprehensive testing of MPO/MTP cables, patch panels, and transceivers. This connector type is standard in high-density fiber optic installations where space efficiency and reliable connections are essential.
What are the key performance specifications for this loopback plug?
Key performance specifications include insertion loss below 0.35dB, return loss above 50dB, and repeatability within 0.2dB. These metrics ensure accurate and consistent test results by minimizing signal degradation and back-reflection. The low insertion loss preserves signal strength during testing, while the high return loss reduces interference for stable loopback signaling in network diagnostics.
Is this loopback plug compliant with industry standards?
Yes, it is built in compliance with IEC standards and meets RoHS (Restriction of Hazardous Substances) environmental requirements. It is also TAA (Trade Agreements Act) compliant, making it suitable for use in government and regulated procurement environments. These compliances ensure the tool meets quality and safety standards for reliable testing in professional network installations.
What are the physical dimensions and weight of this loopback plug?
The loopback plug measures 0.80" wide by 0.30" high (20.32 × 7.62 mm) and weighs 0.10 oz (2.83 g). Its compact and lightweight design makes it highly portable for field technicians, easily fitting into toolkits or pockets. The small footprint does not compromise durability, as it features a robust ABS housing that withstands frequent use in testing scenarios.
What is included with this loopback plug for field use?
The loopback plug includes a protective dust cap to prevent contamination of the MPO connector when not in use. This accessory helps maintain connector cleanliness and performance integrity during transport and storage. The dust cap is essential for field technicians who need to ensure reliable connections when performing on-site diagnostics in various environments.
