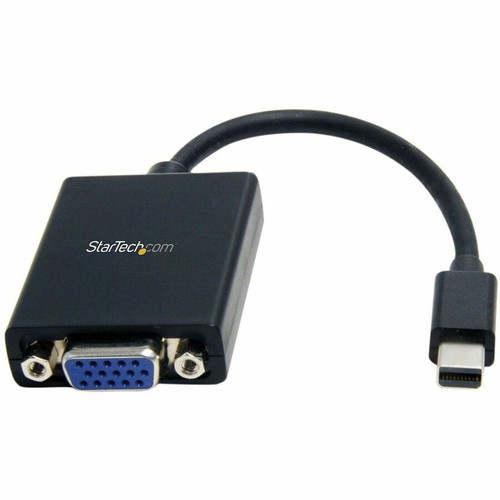

StarTech. com MDP2VGA Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - mDP & Thunderbolt 1/2 to VGA Monitor - 5. 1" Cable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MDP2VGA is an active Mini DisplayPort 1.2 (HBR2) to VGA adapter that converts digital DisplayPort signals to analog VGA output. It supports a maximum resolution of 1920 x 1200 (including 1080p) at 60Hz, ensuring smooth video playback and sharp text. The adapter incorporates Extended Display Identification Data (EDID) and Display Data Channel (DDC) pass-through, allowing the source to automatically detect the connected display's capabilities and configure optimal resolution and refresh rate.
Compatibility extends to Mini DisplayPort (mDP) and mDP++ sources, including Thunderbolt 1 and 2 ports found on MacBooks, MacBook Air, Mac Mini, and Windows laptops. It also works with Microsoft Surface Pro 1-6, desktops with AMD FirePro or NVidia Quadro graphics, Intel NUCs, and various docks. The adapter is VESA DisplayPort certified and requires no software or drivers, functioning natively with Windows, Ubuntu, macOS, and other operating systems.
Key Product Advantages
The active design of the MDP2VGA ensures reliable conversion from digital DisplayPort to analog VGA, eliminating compatibility issues common with passive adapters. The inclusion of EDID and DDC pass-through guarantees that the source and display communicate correctly, supporting automatic resolution and refresh rate selection. This makes the adapter ideal for connecting modern laptops or desktops with Mini DisplayPort or Thunderbolt outputs to legacy VGA monitors and projectors.
Screw-Lock VGA Connection
The female VGA port features screw-lock posts that secure standard VGA cables, preventing accidental disconnections during use. Tested with VGA cables up to 25 feet.
Broad Host Compatibility
Works with Thunderbolt 1/2 MacBooks, MacBook Air, Mac Mini, Microsoft Surface Pro 1-6, desktops with AMD FirePro/NVidia Quadro, laptops, mini ITX computers, Intel NUC, and docks.
Deployment / Use Cases
The StarTech.com MDP2VGA is a versatile solution for connecting modern Mini DisplayPort or Thunderbolt devices to VGA displays in corporate, education, and home office environments. It enables users to extend or mirror their desktop across a VGA monitor, or connect to a VGA projector for presentations without upgrading the display infrastructure.
Use cases include connecting a MacBook or Surface Pro to a conference room projector, adding a secondary VGA monitor to a workstation with limited video outputs, or utilizing legacy VGA displays with newer laptops. The compact form factor and plug-and-play operation make it a practical travel accessory for IT professionals and mobile workers.
Conference Room Presentations
Connect your Thunderbolt-equipped laptop to a VGA projector with screw-lock security. Supports up to 1080p resolution for clear slides and videos.
Dual-Monitor Productivity
Add a second VGA monitor to your Mini DisplayPort desktop or laptop to extend your workspace. Ideal for multitasking with spreadsheets, documents, and applications.
Physical Profile
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.99 oz (28 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
Physical fit matters beyond raw measurements because it affects placement, airflow, cable routing, handling, and day-to-day service access. Buyers often review this section to reduce installation surprises and confirm whether the product will sit cleanly in the intended desk, shelf, rack, cabinet, or shared workspace.
- Weight
- 0.99 oz (28 g)
- Length
- 5.1" (130 mm)
Highlights
- Active Mini DisplayPort 1.2 to VGA adapter supports resolutions up to 1920x1200 and 1080p at 60Hz
- Compatible with Thunderbolt 1 & 2, mDP/mDP++ sources including MacBooks, Surface Pro, Intel NUC, and more
- EDID and DDC pass-through ensures reliable detection and optimal display settings
- Screw-lock VGA connector secures cable and prevents accidental disconnection; tested with up to 25 ft cables
- Compact 5.1-inch (130 mm) cable ideal for travel and portable setups
- Plug-and-play, no drivers required; works with Windows, macOS, Ubuntu, and other OS
- VESA DisplayPort certified and backed by a 3-year StarTech.com warranty
- Black color, lightweight design at just 0.99 oz (28 g)
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2VGA |
| Brand Name | StarTech.com |
| Product Model | MDP2VGA |
| Product Name | Mini DisplayPort to VGA Video Adapter Converter |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable Adapter |
| Technical Information | |
| Cable Type | Mini DisplayPort/VGA |
| Cable Length | 5.1" (130 mm) |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x 15-pin HD-15 - Female |
| Device Supported | Monitor,Audio/Video Device,Desktop Computer,Notebook,Projector,Ultrabook,Tablet,MacBook,MacBook Air,Mac mini |
| Supported Resolution | 1920 x 1200 |
| Features | Active,Extended Display Identification Data (EDID),Display Data Channel (DDC) Compatible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 0.99 oz (28 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution supported by the MDP2VGA adapter?
The adapter supports resolutions up to 1920 x 1200 at 60Hz, including standard 1080p. This ensures clear and smooth video output for presentations, extended desktops, and video playback on VGA monitors or projectors.
Is the MDP2VGA compatible with Thunderbolt 3 or USB-C ports?
The MDP2VGA is designed for Mini DisplayPort and Thunderbolt 1/2 connectors. For Thunderbolt 3 or USB-C ports, a separate adapter (such as a USB-C to Mini DisplayPort adapter) would be required, and then the MDP2VGA can be connected to that adapter.
Does the adapter require any software or drivers?
No, the MDP2VGA is plug-and-play. It works natively with Windows, macOS, Ubuntu, and other operating systems without the need for additional software or drivers. Simply connect the adapter to the source and attach a VGA cable to the display.
What is the cable length and is it suitable for portable use?
The cable is 5.1 inches (130 mm) long, making it compact and convenient for travel. It can be used with laptops, tablets, or ultrabooks in office, home, or on-the-go settings without excess cable clutter.
Does the VGA connector have screw-lock capability?
Yes, the female VGA (HD-15) connector features screw-lock posts that secure standard VGA cables, preventing accidental disconnection. The adapter has been tested with VGA cables up to 25 feet.
What kind of warranty does the MDP2VGA come with?
The StarTech.com MDP2VGA is backed by a 3-year limited warranty. The company also provides free lifetime technical support for this product.
