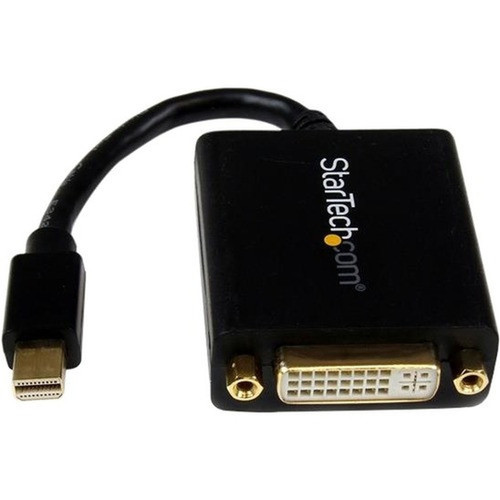

StarTech. com MDP2DVI Mini DisplayPort to DVI-D Adapter - 1080p 60Hz Video - VESA Certified - Passive mDP 1. 2 to DVI-D Converter with Screw Locking
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

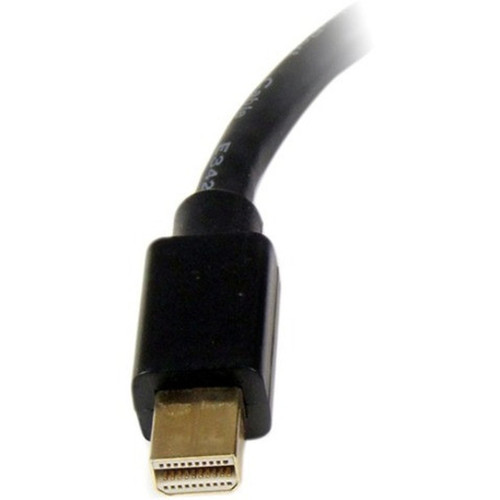

This adapter implements Mini DisplayPort 1.2 (HBR2) to DVI-D single-link conversion through passive circuitry that requires no external power or software drivers. The 20-pin Mini DisplayPort male connector interfaces with source devices, while the 29-pin DVI-D female connector accepts standard DVI cables.
Video performance reaches 1920x1200 resolution at 60Hz refresh rates, supporting full HD 1080p content. The screw locking mechanism on the DVI end provides secure cable retention, preventing accidental disconnections during extended use.
This section brings together practical product details such as Connector Type on First End, Connector on First End Details, Connector Type on Second End, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The MDP2DVI adapter delivers plug-and-play connectivity with several distinct advantages for users requiring Mini DisplayPort to DVI conversion.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Universal Compatibility, Reliable Connection Design.
Universal Compatibility
Works with Thunderbolt 1 and 2 MacBooks, Microsoft Surface Pro models 1 through 6, AMD FirePro and NVIDIA Quadro workstations, Intel NUC systems, and various docking stations without requiring driver installation.
- mDP++ source support
- Cross-platform OS compatibility
- Tested with cables up to 25ft
Reliable Connection Design

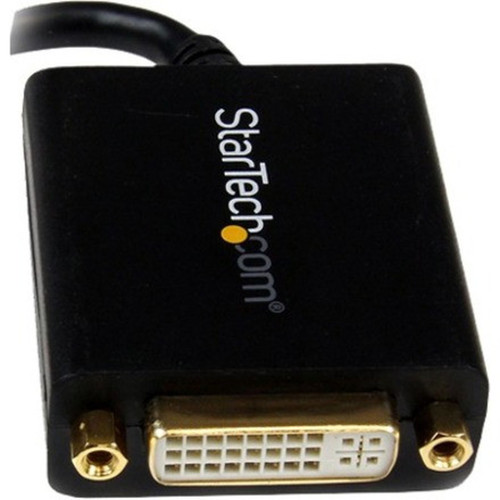

Features a screw locking DVI connector that prevents cable disconnection during active use, ensuring stable video transmission in professional environments where cable integrity matters.
- Secure mechanical retention
- Prevents accidental disconnection
- Durable connector construction
Deployment / Use Cases
This adapter serves multiple practical applications in both office and mobile computing scenarios. For workstation expansion, it enables adding secondary DVI monitors to systems with Mini DisplayPort outputs, creating extended or mirrored desktop configurations.
In presentation environments, the adapter connects laptops with Mini DisplayPort to DVI-equipped projectors or large format displays. The compact form factor and lightweight design make it ideal for travel kits, supporting professionals who need reliable video output across different locations and display systems.
Workstation Expansion
Add a second DVI monitor to Mini DisplayPort-equipped desktops or laptops, increasing screen real estate for multitasking and productivity applications.
Presentation Connectivity
Connect modern laptops to legacy DVI projectors and displays in conference rooms, classrooms, and event venues where DVI remains the standard input.
Physical Profile
The adapter features a sleek black housing that matches professional computing equipment aesthetics. With a weight of just 1.09 ounces (31 grams) and compact dimensions, it adds minimal bulk to portable setups while providing robust connectivity. The integrated 5-inch cable offers flexibility in tight spaces without the clutter of separate adapter and cable combinations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.09 oz (31 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.09 oz (31 g)
Highlights
- Converts Mini DisplayPort 1.2 to DVI-D single-link digital video
- Supports 1920x1200/1080p resolution at 60Hz refresh rates
- VESA DisplayPort certified for standards compliance
- Passive design requires no external power or drivers
- Screw locking DVI connector prevents cable disconnection
- Compatible with Thunderbolt 1/2 MacBooks and Surface Pro 1-6
- Works with Windows, Ubuntu, and macOS operating systems
- Compact 5-inch attached cable ideal for travel and tight spaces
- EDID/DDC pass-through ensures display compatibility
- Environmentally compliant with RoHS 2, REACH, and WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2DVI |
| Brand Name | StarTech.com |
| Product Model | MDP2DVI |
| Product Name | Mini DisplayPort to DVI Video Adapter Converter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DVI-D (Single-Link) Digital Video - Female |
| Connector on Second End Details | 1 x 29-pin DVI-D (Single-Link) Digital Video - Female |
| Features | Passive,Extended Display Identification Data (EDID) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 1.09 oz (31 g) |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
Which devices are compatible with this Mini DisplayPort to DVI adapter?
The adapter works with mDP++ source devices including Thunderbolt 1 and 2 MacBooks, MacBook Air, Mac Mini, Microsoft Surface Pro models 1 through 6, desktop workstations with AMD FirePro or NVIDIA Quadro graphics, various laptops, mini-ITX computers, Intel NUC systems, and compatible docking stations.
Does this adapter require software drivers or external power?
No, this is a passive adapter that requires neither software drivers nor external power. It works plug-and-play with supported operating systems including Windows, Ubuntu, and macOS. The conversion happens through hardware circuitry within the adapter itself.
What is the purpose of the screw locking mechanism on the DVI connector?
The screw locking DVI connector provides mechanical retention that prevents the cable from accidentally disconnecting during use. This is particularly valuable in professional environments, presentation settings, or installations where cable stability is important for maintaining consistent video signal transmission.
Can I use this adapter with DVI cables longer than the included 5-inch cable?
Yes, the adapter has been tested with standard DVI cables up to 25 feet in length. The DVI-D female connector accepts any standard DVI cable with male connectors, allowing you to extend the connection distance as needed for your specific setup requirements.
What certifications does this video adapter carry?
The adapter is VESA DisplayPort certified, ensuring compliance with industry standards for DisplayPort connectivity. It also meets environmental compliance standards including RoHS 2, REACH, and WEEE directives, confirming it's manufactured with restricted hazardous substances and designed for responsible end-of-life handling.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
1 x 20-pin Mini DisplayPort Digital Audio/Video - Male.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
