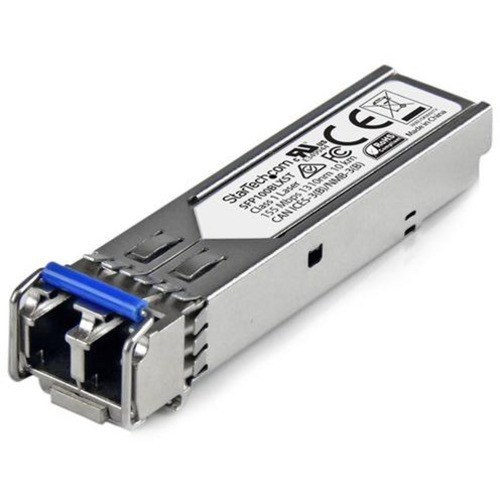

StarTech. com SFP100BLXST MSA Uncoded SFP Module - 100BASE-LX 100MbE Single Mode Fiber Optic Transceiver - 10km Reach - LC Connector - DDM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates on the 100BASE-LX standard, utilizing 1310nm wavelength over single-mode fiber to achieve distances up to 10 km. The LC duplex connector ensures secure optical connections, while the hot-swappable design allows for installation and replacement without powering down network equipment. The module's compact dimensions—0.60" wide, 0.50" high, and 2.30" deep—fit standard SFP slots in compatible switches and routers.
Digital Diagnostic Monitoring (DDM) provides real-time visibility into key parameters such as temperature, voltage, laser bias current, and optical power levels. This data is accessible via SNMP, allowing network administrators to monitor transceiver health and performance. The module is MSA-compliant, ensuring mechanical and electrical interoperability with a wide range of networking hardware.
Key Product Advantages
The SFP100BLXST combines extended reach, robust monitoring, and broad compatibility in a reliable transceiver solution. Its uncoded design ensures seamless integration with MSA-compliant switches, while the lifetime warranty provides long-term confidence in network infrastructure investments.
Extended Reach Capability
Supports distances up to 10 km over single-mode fiber, ideal for connecting remote network segments without signal degradation.
- 10 km maximum distance
- Single-mode fiber optimization
- 1310nm wavelength for long-haul performance
Comprehensive Monitoring
Digital Diagnostic Monitoring (DDM) enables real-time tracking of transceiver health, facilitating proactive maintenance and reducing network downtime.
- SNMP-compatible status reporting
- Monitors temperature, voltage, and optical power
- Supports network management tools
Broad Compatibility
Works with MSA-compliant switches and routers from multiple vendors, offering a flexible and cost-effective connectivity solution.
- Uncoded for universal MSA compatibility
- Tested with Ubiquiti, D-Link, Netgear, and more
- Does not void OEM warranties
Deployment / Use Cases
This SFP transceiver is engineered for optical network and data networking applications where reliable, long-distance Ethernet connectivity is required. Its 100BASE-LX performance and 10 km reach make it suitable for backbone links, inter-building connections, and extended campus networks.
Common deployment scenarios include connecting switches in separate buildings within a campus, linking data center racks over fiber backbones, and extending network segments in industrial or enterprise environments. The module's hot-swappable design allows for easy upgrades or replacements without disrupting network operations, while DDM support simplifies monitoring in managed network infrastructures.
Campus Network Backbones
Ideal for connecting network switches across buildings or campuses using single-mode fiber infrastructure, ensuring high-speed data transfer over extended distances.
Data Center Interconnects
Provides reliable 100 Mbps links between racks or data center segments, supporting efficient data flow and network scalability in enterprise environments.
Physical Profile
The transceiver features a compact, hot-swappable form factor with dimensions of 0.60" wide, 0.50" high, and 2.30" deep, weighing approximately 1.10 oz. Its standardized SFP size ensures compatibility with a wide range of network equipment slots. The module is designed for easy insertion and removal, facilitating quick maintenance and upgrades without tools or downtime.
- Width
- 0.60" (15.24 mm)
- Depth
- 2.30" (58.42 mm)
- Height
- 0.50" (12.70 mm)
- Weight
- 1.10 oz (31.18 g)
Highlights
- MSA-compliant uncoded SFP transceiver for 100BASE-LX Fast Ethernet
- Supports single-mode fiber with LC duplex connector and 1310nm wavelength
- Maximum reach of 10 km (6.2 miles) for extended network segments
- Digital Diagnostic Monitoring (DDM) for real-time status via SNMP
- Hot-swappable design for easy installation and replacement
- Compatible with MSA switches from Ubiquiti, D-Link, Netgear, and more
- Lifetime warranty on the module for long-term reliability
- Environmentally compliant with WEEE, RoHS, and REACH standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SFP100BLXST |
| Brand Name | StarTech.com |
| Product Name | SFP Module |
| Product Type | SFP |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-LX |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.30" (58.42 mm) |
| Weight (Approximate) | 1.10 oz (31.18 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum distance this SFP transceiver supports?
This transceiver supports distances up to 10 kilometers (6.2 miles) over single-mode fiber when used with 100BASE-LX networking equipment. The extended reach makes it suitable for connecting network segments across campuses, between buildings, or in data center environments where longer fiber runs are required.
Which connector type does this module use?
The module uses an LC duplex connector, which is standard for SFP transceivers. The LC connector provides a secure, low-loss connection for single-mode fiber optic cables, ensuring reliable data transmission and easy integration with existing fiber infrastructure.
What is Digital Diagnostic Monitoring (DDM) and how does it work?
Digital Diagnostic Monitoring (DDM) is a feature that provides real-time monitoring of the transceiver's operational parameters, including temperature, voltage, laser bias current, and optical power levels. This data is reported via SNMP to network management tools, allowing administrators to track transceiver health, detect potential issues, and perform proactive maintenance.
Is this SFP module hot-swappable?
Yes, this SFP module is hot-swappable, meaning it can be installed or removed from a compatible switch or router without powering down the equipment. This feature simplifies maintenance, upgrades, and replacements, minimizing network downtime and operational disruption.
What does MSA compliance mean for compatibility?
MSA (Multi-Source Agreement) compliance ensures that the transceiver meets industry-standard mechanical, electrical, and thermal specifications. This allows it to work with a wide range of MSA-compliant switches and routers from vendors like Ubiquiti, D-Link, Netgear, and TP-Link, providing a versatile and cost-effective alternative to OEM modules.
What warranty is provided with this transceiver?
The transceiver is backed by a lifetime warranty that covers the module itself for its operational life. This warranty does not affect your switch's OEM warranty and includes support from StarTech.com's technical advisors. The warranty reflects the product's durability and reliability in network deployments.
