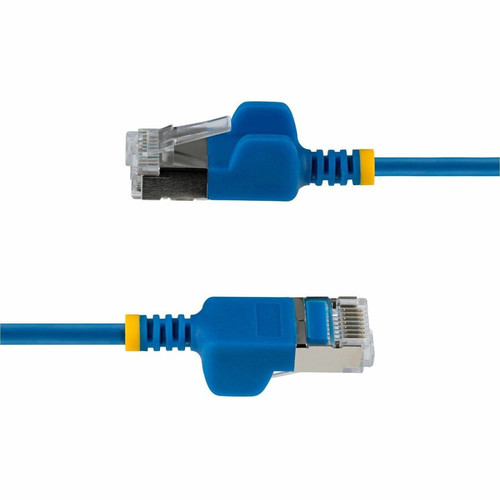

StarTech. com N6APATSTP34BLS-14FT Ultra Slim Cat6a STP Patch Cable - 14 ft Blue - Snagless - FTP Bare Copper - 34AWG - 10Gbps RJ45
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Cat6a patch cable is fully compliant with ANSI/TIA-568-C.2 standards, supporting frequencies up to 500 MHz and data rates up to 10 Gbps. The U/FTP shielding (unshielded twisted pairs with an overall foil shield) combined with an aluminum mylar foil drain wire provides effective protection against electromagnetic interference and near-end crosstalk (NEXT).
Each RJ45 connector features 50-micron gold-plated contacts for corrosion resistance and optimal conductivity. The cable is individually tested to ensure minimal insertion loss and return loss. With a 34 AWG stranded bare copper conductor, it offers flexibility without sacrificing performance. The TPE jacket is RoHS compliant and rated for indoor use, though not suitable for Power over Ethernet (PoE) applications.
Key Product Advantages
The ultra-slim design (0.15" outer diameter) reduces cable bulk by 40% compared to standard Cat6a cables, improving airflow and cable management in dense server racks and patch panels. The translucent boot transmits port LED light, enabling faster visual troubleshooting without disconnecting cables.
The combination of U/FTP shielding and gold-plated contacts ensures reliable 10 Gbps performance in high-interference environments. The snagless boot protects the locking tab during installation and removal, reducing the risk of damage. Lifetime warranty and free lifetime technical support provide added peace of mind.
Space-Saving Design
40% thinner than standard Cat6a cables, allowing easier routing and improved airflow in high-density setups.
- Flexible 3.7 mm O.D.
- Ideal for tight spaces
Reliable Shielding
U/FTP foil shielding with drain wire minimizes EMI and crosstalk for stable 10 Gbps transmission.
- ANSI/TIA-568-C.2 compliant
- Tested for NEXT and RL
Deployment / Use Cases
This patch cable is purpose-built for high-density networking environments such as data centers, server rooms, and enterprise wiring closets. Its slim profile enables neat cable runs in crowded racks, reducing clutter and improving passive cooling. The snagless RJ45 connector prevents tab breakage during frequent moves, adds, and changes.
Common use cases include connecting servers to top-of-rack switches, patching between patch panels and network equipment, and linking routers or firewalls in compact spaces. The cable's shielding makes it suitable for environments with moderate electromagnetic interference, such as near power cables or industrial equipment.
Note: This cable is not rated for PoE applications. For Power over Ethernet, consider a higher-gauge or PoE-rated cable.
Server Rack Cabling
Connect rack servers to switches with minimal obstruction to airflow.
- 14 ft reach
- Ultra slim for cable management
Patch Panel to Switch
Ideal for short, organized runs between patch panels and network switches.
- Snagless boots
- Translucent for LED visibility
Physical Profile
The cable measures 14 feet (4.27 meters) in length with an outer diameter of just 0.15 inches (3.70 mm), making it significantly slimmer than standard Cat6a cables. The blue TPE jacket is flexible and durable, resistant to kinks and snags. The translucent boot at each end allows port LED light to pass through, aiding visual identification of active links. The cable weighs approximately 1.90 oz (53.86 g), adding negligible weight to cable bundles.
- Weight
- 1.90 oz (53.86 g)
- Length
- 14 ft (4.27 m)
Highlights
- Ultra slim design 40% thinner than standard Cat6a cables for improved airflow and cable management in dense racks
- Supports 10 Gbps data rates up to 500 MHz for high-speed network performance
- U/FTP shielding with drain wire protects against EMI and crosstalk for reliable data transmission
- 50-micron gold-plated contacts on RJ45 connectors ensure corrosion resistance and optimal signal integrity
- Snagless translucent boot allows LED visibility and prevents tab damage during installation
- Stranded 34 AWG bare copper conductors provide flexibility for tight bends without breaking
- Compliant with ANSI/TIA-568-C.2 standards and individually tested for NEXT and Return Loss
- Lifetime warranty with free 24/5 multilingual technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6APATSTP34BLS-14FT |
| Brand Name | StarTech.com |
| Product Name | Ultra Slim Cat6A STP Patch Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Cable Length | 14 ft (4.27 m) |
| Outer Diameter | 0.15" (3.70 mm) |
| Cable Shielding Type | Shielded Twisted Pair (STP) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | Yes |
| Device Supported | Network Device,Rack,Patch Panel,Switch,Router,Rack Server |
| American Wire Gauge | 34 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Features | Flexible,Snag Resistant,Break Resistant,Unshielded with Foiled Twisted Pair (U/FTP),EMI Protection,Crosstalk Protection,Durable,Minimized Near-End Crosstalk (NEXT),Stranded,Foil Twisted Pair (FTP),Shielded Twisted Pair (STP) |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Boot Color | Translucent |
| Product Material | Bare Copper |
| Shielding Material | Foil,Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 1.90 oz (53.86 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the difference between U/FTP and STP shielding?
U/FTP (Unshielded Twisted Pair with overall Foil) means each twisted pair is unshielded but the entire cable core is wrapped in a foil shield. STP (Shielded Twisted Pair) typically includes individual pair shielding plus an overall braid or foil. This cable uses U/FTP construction with a foil shield and drain wire, providing effective EMI protection for 10 Gbps environments.
Can this cable be used for Power over Ethernet (PoE)?
No, this cable is not rated for PoE applications. The 34 AWG stranded conductors are not designed to carry power safely. For PoE deployments, use cables with thicker conductors (e.g., 24 AWG or 26 AWG) that are specifically rated for PoE.
What standards does this cable comply with?
This cable is compliant with ANSI/TIA-568-C.2 for Category 6a performance, supporting frequencies up to 500 MHz and data rates up to 10 Gbps. It is also RoHS and WEEE compliant.
Is the cable backward compatible with Cat5e or Cat6 equipment?
Yes, this Cat6a cable is fully backward compatible with Cat5e and Cat6 networks. It will operate at the lower speed of the connected equipment, such as 1 Gbps on a Cat5e switch, while providing additional headroom for future upgrades.
What does the translucent boot do?
The translucent RJ45 boot allows light from the port LED to pass through, making it easier to identify active link connections without disconnecting the cable. This is particularly useful in high-density patching scenarios where visibility is limited.
What is the warranty for this cable?
StarTech.com backs this cable with a lifetime warranty, along with free lifetime 24/5 multilingual technical assistance.
