StarTech.com RKPW081915 1U Rackmount PDU - 8 Outlets with Surge Protection - 1.80 kVA - 120V AC Input - Horizontal Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

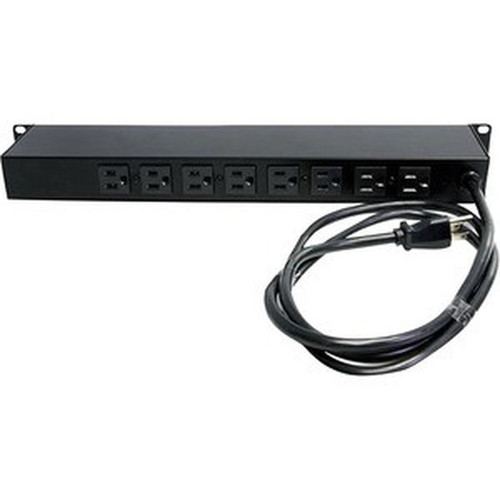

This rackmount PDU delivers 1.80 kVA of power capacity with 120V AC input and 125V AC output, supporting a 15A input current. The eight NEMA 5-15R outlets are spaced for optimal accessibility, allowing simultaneous connection of multiple devices without cable interference.

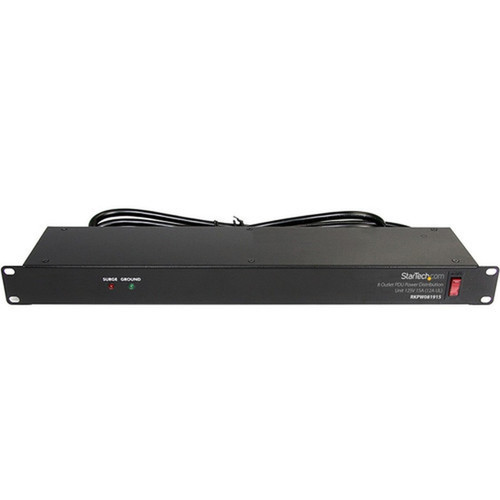

Surge protection circuitry safeguards connected equipment from voltage spikes, while a built-in circuit breaker prevents overload conditions. The illuminated reset and power switch offers convenient control and status indication in low-light rack environments.
Relevant factors for this section include Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This PDU combines essential power distribution features with robust protection mechanisms for critical rack infrastructure. The solid steel construction ensures long-term reliability in demanding data center and server room environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Equipment Protection, Optimized Rack Integration.
Enhanced Equipment Protection
Integrated surge protection and circuit breaker functionality prevent damage from power anomalies and overload conditions, extending the lifespan of connected devices.
- Surge protection circuitry
- Built-in circuit breaker

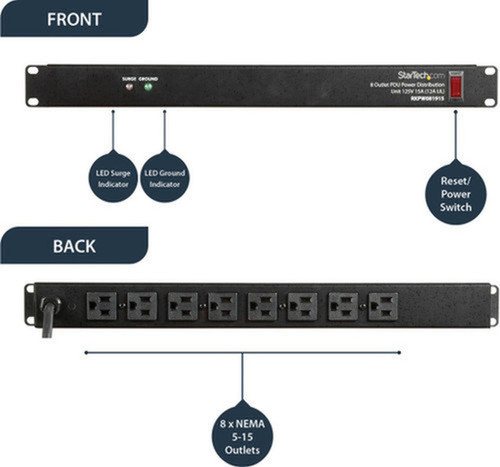

- LED ground and surge indicators
Optimized Rack Integration
The 1U horizontal design maximizes rack space efficiency while providing convenient front-panel access to all eight outlets and control features.
- 1U rack height
- Horizontal mounting orientation
- Standard 19-inch rack width
Deployment / Use Cases
The RKPW081915 rackmount PDU is engineered for server rack deployments where organized power distribution and equipment protection are priorities. Its compact form factor and horizontal orientation make it ideal for standard 19-inch server racks in data centers, network closets, and telecommunications installations.
Typical applications include powering rack-mounted servers, network switches, patch panels, KVM switches, and other rack-compatible equipment. The surge protection capabilities make it particularly suitable for environments with unstable power quality or where connected devices require additional voltage spike protection.
Data Center Power Distribution
Consolidate power connections for multiple rack-mounted devices while providing surge protection for sensitive server and networking equipment.
Network Closet Installation
Organize power cables for switches, routers, and other networking hardware in confined rack spaces with the horizontal 1U design.
Physical Profile
The PDU measures 19 inches in length for standard rack compatibility, with a compact 1.70-inch height that occupies just 1U of vertical rack space. The 3.80-inch width allows for clean integration alongside other rack components. Weighing approximately 4.20 pounds, the unit maintains a manageable profile for installation and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 3.80" (96.52 mm), 4.20 lb (1905.09 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.80" (96.52 mm)
- Height
- 1U
- Weight
- 4.20 lb (1905.09 g)
- Length
- 19" (482.60 mm)
What's in the Box
The package includes the complete rackmount PDU unit with all integrated components ready for installation.
Highlights
- 1.80 kVA power capacity for reliable equipment operation
- Eight NEMA 5-15R outlets with surge protection
- 1U horizontal rackmount design for space-efficient installation
- Solid steel chassis meeting ANSI/EIA RS-310-D standards
- Integrated 6-foot power cord with NEMA 5-15P plug
- LED indicators for ground and surge protection status
- Illuminated reset and power switch for easy control
- Built-in circuit breaker for overload protection
- Two-year limited warranty for long-term reliability
- RoHS, REACH, and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RKPW081915 |
| Brand Name | StarTech.com |
| Product Name | Rackmount PDU with 8 Outlets and SurgeProtection - 1U |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Power Rating (VA) | 1.80 kVA |
| Input Current | 15 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 3.80" (96.52 mm) |
| Length | 19" (482.60 mm) |
| Weight (Approximate) | 4.20 lb (1905.09 g) |
| Miscellaneous | |
| Package Contents | Rackmount PDU with 8 Outlets and SurgeProtection - 1U 1 x Installation Document |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this rackmount PDU?
The StarTech.com RKPW081915 provides 1.80 kVA of power capacity with 120V AC input and 125V AC output. This capacity supports a 15A input current, making it suitable for powering multiple rack-mounted devices simultaneously while maintaining safe operating parameters.
How many outlets does this PDU have and what type are they?
This rackmount PDU features eight NEMA 5-15R outlets, which are standard North American 15-amp receptacles. The outlets are configured for optimal spacing and accessibility in rack environments, allowing connection of servers, switches, and other rack-compatible equipment with standard power cords.
What rack mounting options are available for this PDU?
The PDU is designed for horizontal mounting in standard 19-inch server racks. It occupies 1U of vertical rack space with dimensions of 1.70 inches in height, 3.80 inches in width, and 19 inches in length. The horizontal orientation provides front-panel access to all outlets and controls.
Does this PDU include surge protection?
Yes, the RKPW081915 includes integrated surge protection circuitry to safeguard connected equipment from voltage spikes and power anomalies. LED indicators provide visual confirmation of both ground connection and surge protection status, while a built-in circuit breaker adds overload protection.
What type of input plug does this PDU use?
The PDU includes an integrated 6-foot power cord terminated with a NEMA 5-15P plug. This standard North American plug connects directly to 120V AC wall outlets or other compatible power sources, eliminating the need for additional adapter cords in typical deployment scenarios.
What warranty coverage does this rackmount PDU include?
StarTech.com provides a two-year limited warranty for the RKPW081915 rackmount PDU. The unit also complies with multiple environmental standards including EU RoHS, REACH, and WEEE directives, ensuring responsible manufacturing and disposal practices.
