StarTech. com CK4-PM104C Secure 4-Port Dual-Monitor KVM Switch - 1x DP to 2x HDMI - 4K 30Hz - NIAP 4. 0 - CAC - Made in USA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This analog KVM switch utilizes wired connectivity technology with comprehensive port configuration. The device includes 4 DisplayPort inputs for connecting computers, 2 HDMI outputs for dual 4K monitor support at 30Hz refresh rate, and 11 USB 2.0 ports for peripheral connectivity.
The switch supports maximum video resolution of 3840 x 2160 pixels in 4K graphic mode, delivering clear visual output for modern display requirements. All connections maintain secure isolation between systems, preventing any cross-contamination of data or signals.
This section brings together practical product details such as KVM Technology, Connectivity Technology, Number of Computers Supported, Graphic Mode, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This secure KVM switch provides multiple layers of protection for sensitive computing environments while maintaining operational efficiency for IT management tasks.
NIAP 4.0 Certified Security
The switch prevents data transfer or leakage between connected systems and contains no internal memory or storage that could retain or share information. This certification ensures compliance with stringent security requirements for classified data environments.
- Complete system isolation
- No data retention
- PSD 4.0 compliance
Tamper Protection System
Anti-tamper switches detect physical intrusion attempts and immediately disable all functionality while triggering visual and audible alerts. A tamper-evident seal provides clear visual indication if the enclosure has been previously opened.
- Intrusion detection
- Function disablement
- Tamper-evident sealing
CAC Integration
The dedicated Common Access Card port passes CAC signals through to connected systems, enabling secure smart card login across all managed computers without requiring individual card readers on each machine.
- Centralized authentication
- Reduced hardware requirements
- Secure access management
Deployment / Use Cases
This secure KVM switch is specifically designed for environments where data security and access control are paramount. Government agencies, military installations, financial institutions, and research facilities benefit from the complete system isolation and tamper protection features.
IT security teams can manage multiple secure workstations from a single console while maintaining strict separation between classified and unclassified systems. The dual-monitor support enables comprehensive monitoring and management of secure computing environments without compromising visual clarity or resolution.
Government & Military Security
Deploy in SCIFs and secure facilities where NIAP certification is required for handling sensitive or classified information across multiple computer systems.
Financial Data Centers
Manage trading platforms, banking systems, and financial databases with complete isolation between production and development environments.
Physical Profile
The desktop form factor measures 12.60" in length, 6.70" in width, and 1.80" in height, providing a compact footprint for secure workspace deployment. Weighing approximately 4.19 pounds, the unit offers substantial construction with tamper-resistant design elements. The desktop orientation facilitates easy access to all ports and controls while maintaining a professional appearance in secure computing environments.
- Width
- 6.70" (170.18 mm)
- Height
- 1.80" (45.72 mm)
- Weight
- 4.19 lb (1900 g)
- Length
- 12.60" (320 mm)
What's in the Box
The package includes all necessary components for immediate deployment in secure computing environments.
Highlights

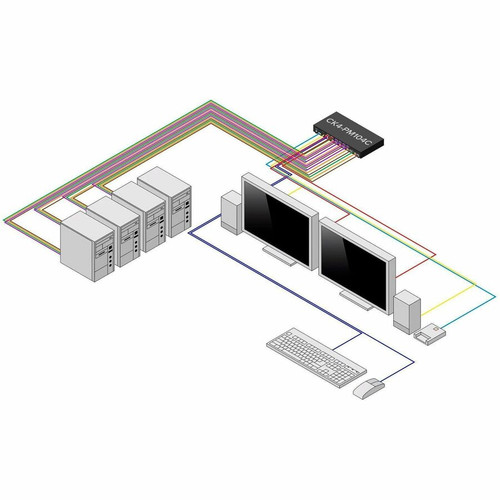

- Controls four DisplayPort computers from one keyboard/mouse and two HDMI monitors
- NIAP PSD 4.0 certified for complete system isolation with no data leakage
- Dedicated Common Access Card port for secure smart card authentication
- Anti-tamper switches with intrusion detection and audible/visual alerts
- Supports dual 4K monitors at 3840 x 2160 resolution and 30Hz refresh
- 11 USB 2.0 ports for comprehensive peripheral connectivity
- Manufactured in the United States with TAA compliance
- 3-year limited warranty for long-term reliability
- Desktop form factor with compact dimensions for secure workspace deployment
- RoHS and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CK4-PM104C |
| Brand Name | StarTech.com |
| Product Name | Secure KVM Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Analog |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Features | LED Indicator,Intrusion Detection,Anti-tamper Switch,Tamper Resistant |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of HDMI Ports | 2 |
| Number of DisplayPorts | 4 |
| Power Description | |
| Input Voltage Range | 12VDC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.80" (45.72 mm) |
| Width | 6.70" (170.18 mm) |
| Length | 12.60" (320 mm) |
| Weight (Approximate) | 4.19 lb (1900 g) |
| Miscellaneous | |
| Package Contents | Secure KVM Switch 1x Universal Power Adapter 1x Product Documentation |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What security certifications does this KVM switch have?
This KVM switch is NIAP PSD 4.0 certified, which means it meets stringent security requirements for preventing data transfer or leakage between connected systems. The certification ensures complete isolation of systems and verifies that the device contains no internal memory or storage that could retain or share information. This makes it suitable for high-security environments handling sensitive or classified data.
How many computers can I connect to this KVM switch?
The StarTech.com CK4-PM104C supports up to four computers via DisplayPort connections. You can switch between all four systems using a single keyboard and mouse while viewing output on two HDMI monitors. This configuration is ideal for IT professionals managing multiple workstations or servers from a centralized console.
What video resolution and refresh rate does this switch support?
This secure KVM switch supports maximum video resolution of 3840 x 2160 pixels (4K) at a 30Hz refresh rate. The dual HDMI outputs allow you to connect two 4K monitors simultaneously, providing clear visual output for modern display requirements while maintaining secure isolation between connected computer systems.
How does the Common Access Card (CAC) port work?
The dedicated CAC port passes Common Access Card signals through the KVM switch to all connected systems, enabling secure smart card login across multiple computers. This allows IT professionals to manage secure access without attaching individual card readers to each machine, centralizing authentication while maintaining security compliance in government and military environments.
What tamper protection features are included?
The KVM switch includes anti-tamper switches that detect physical intrusion attempts. When triggered, these switches immediately disable all functionality and activate both visual and audible alerts. Additionally, a tamper-evident seal provides clear visual indication if the enclosure has been previously opened, offering multiple layers of physical security protection.
What is included in the package with this KVM switch?
The package contains the secure KVM switch unit, one universal power adapter (12VDC input), and product documentation. All necessary components are included for immediate deployment in secure computing environments, with no additional accessories required for basic operation.
