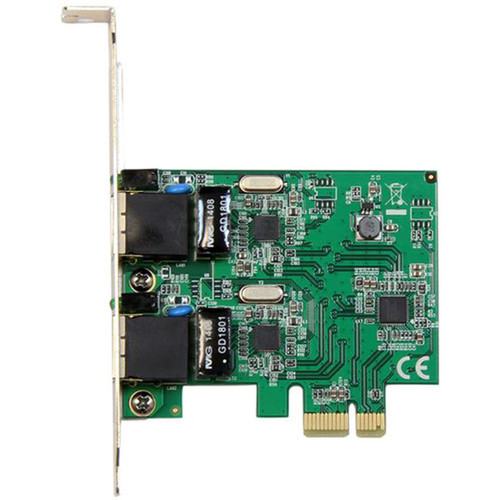

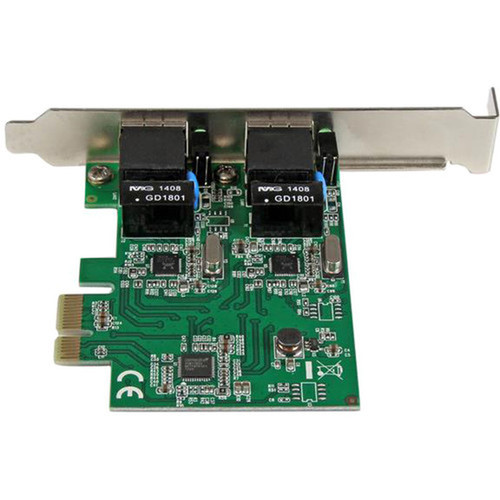

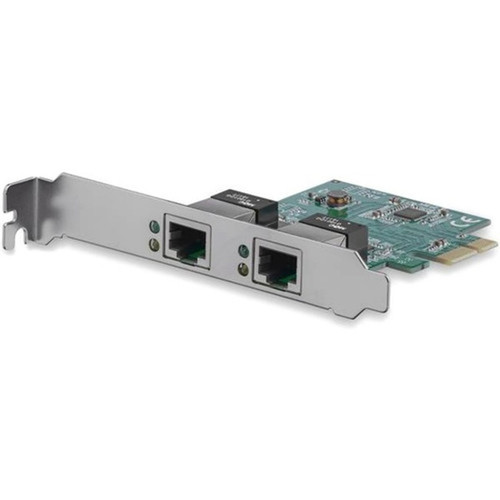

StarTech.com ST1000SPEXD4 Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe x1 NIC with Low Profile Bracket
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This dual-port Gigabit Ethernet card utilizes a PCI Express x1 host interface, compatible with PCI Express Base Specification 2.0 while maintaining backward compatibility with 1.0a/1.1 specifications. The adapter achieves maximum data transfer rates of 1.95 Gbit/s across both RJ-45 ports, supporting full-duplex operation for simultaneous bidirectional data flow.
Network protocol support includes comprehensive IEEE 802.3 standards compliance for 10Base-T, 100Base-TX, and 1000Base-T operation. The card implements IEEE 802.3x flow control for efficient data transmission management and supports VLAN tagging (IEEE 802.1Q) with Layer 2 priority encoding (IEEE 802.1P) for traffic prioritization in managed network environments.
Relevant factors for this section include Host Interface, Total Number of Ports, Number of Network (RJ-45) Ports, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This StarTech.com network adapter provides several technical advantages for server networking applications. The dual-port design enables network teaming for increased throughput or failover configurations, while the inclusion of both standard and low-profile brackets ensures compatibility with diverse server form factors.
Advanced Feature Support
The adapter supports Microsoft NDIS5 checksum offload for IP, TCP, and UDP protocols, reducing CPU overhead during network operations. Large send offload capabilities optimize performance for large data transfers, while Wake-on-LAN support enables remote system management.
- 9K Jumbo Frame support
- Pair swap/polarity/skew correction
- Environmental RoHS compliance
Reliable Server Connectivity
Designed specifically for server environments, this adapter maintains stable connections under continuous operation. The twisted-pair media support ensures compatibility with existing network infrastructure, while the compact form factor fits standard PCIe slots without obstructing adjacent components.
Deployment / Use Cases
The ST1000SPEXD4 adapter serves multiple deployment scenarios in server environments. Primary applications include adding supplemental network interfaces to servers that require separate connections for management, data, or backup networks. The dual-port configuration enables link aggregation for increased bandwidth or active-passive failover setups.
This adapter proves particularly valuable in virtualization hosts where separate network interfaces benefit different virtual machines or network functions. Small business servers can utilize the additional ports to segregate internal and external traffic, while development servers benefit from isolated network segments for testing environments. The low-profile bracket inclusion makes this adapter suitable for space-constrained 1U and 2U server racks where full-height cards cannot be accommodated.
Server Network Expansion
Ideal for servers requiring additional Ethernet ports beyond motherboard capabilities. The PCIe x1 interface provides sufficient bandwidth for Gigabit networking while conserving larger PCIe slots for other expansion cards.
Network Segmentation
Use one port for production traffic and the second for backup or management networks. The adapter's VLAN support enables logical network separation without requiring additional physical hardware.
Physical Profile
Measuring 4.70 inches in height, 0.70 inches in width, and 3.60 inches in depth (119.38 × 17.78 × 91.44 mm), this network adapter maintains a compact footprint suitable for most server chassis. The plug-in card form factor installs directly into available PCI Express x1 slots, with the lightweight 1.90-ounce (53.86 g) design minimizing stress on the motherboard. The included low-profile bracket enables installation in slim server enclosures, while the standard bracket accommodates full-height chassis configurations.
- Width
- 0.70" (17.78 mm)
- Depth
- 3.60" (91.44 mm)
- Height
- 4.70" (119.38 mm)
- Weight
- 1.90 oz (53.86 g)
What's in the Box
The package includes all necessary components for immediate deployment of the network adapter in server environments.
Highlights
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- PCI Express x1 host interface with backward compatibility
- Maximum data transfer rate of 1.95 Gbit/s
- Supports 9K Jumbo Frames for improved large data transfer efficiency
- Comprehensive IEEE standards compliance (802.3, 802.3u, 802.3ab)
- VLAN tagging (IEEE 802.1Q) and Layer 2 priority encoding (IEEE 802.1P) support
- Microsoft NDIS5 checksum offload and large send offload capabilities
- Wake-on-LAN / Remote Wake-up support for remote management

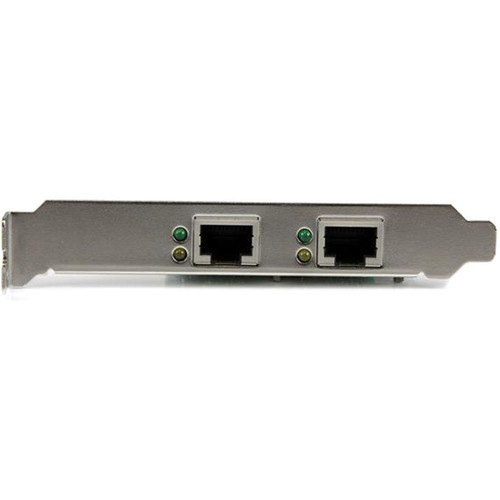

- Includes both standard and low-profile/half-height brackets
- 2-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST1000SPEXD4 |
| Brand Name | StarTech.com |
| Product Name | Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC |
| Packaged Quantity | 1 Each |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express x1 |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 1.95 Gbit/s |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.70" (119.38 mm) |
| Width | 0.70" (17.78 mm) |
| Depth | 3.60" (91.44 mm) |
| Weight (Approximate) | 1.90 oz (53.86 g) |
| Miscellaneous | |
| Package Contents | Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual |
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of server is this network adapter designed for?
The StarTech.com ST1000SPEXD4 is specifically engineered for server environments, providing reliable dual-port Gigabit Ethernet connectivity. It supports standard server operating systems and is compatible with PCI Express slots found in most server motherboards. The inclusion of both standard and low-profile brackets ensures compatibility with various server form factors, from tower servers to rack-mounted 1U and 2U chassis.
What PCI Express specification does this adapter support?
This network adapter is compatible with PCI Express Base Specification 2.0 while maintaining backward compatibility with versions 1.0a and 1.1. It utilizes a PCI Express x1 host interface, which provides sufficient bandwidth for dual Gigabit Ethernet ports while conserving larger PCIe slots for other expansion cards. The x1 interface is commonly available on server motherboards and offers a practical balance between performance and slot utilization.
Does this adapter support VLAN tagging and traffic prioritization?
Yes, the adapter fully supports IEEE 802.1Q VLAN tagging for network segmentation and IEEE 802.1P Layer 2 Priority Encoding for traffic prioritization. These features enable administrators to create virtual LANs and assign priority levels to different types of network traffic, which is particularly valuable in server environments where management, data, and backup traffic may need separation and differential treatment.
What advanced networking features does this card include?
Beyond basic Gigabit Ethernet connectivity, this adapter supports several advanced features including 9K Jumbo Frames for improved large data transfer efficiency, Microsoft NDIS5 checksum offload for reduced CPU utilization, large send offload capabilities, and Wake-on-LAN for remote system management. It also includes pair swap, polarity, and skew correction capabilities to maintain signal integrity over twisted-pair cabling.
What brackets are included with the network adapter?
The package includes two mounting brackets: a standard profile bracket for full-height server chassis and a low-profile/half-height bracket for space-constrained installations. The adapter ships configured with the standard bracket attached, with the low-profile bracket included separately for installation in 1U and 2U rack servers or other compact server enclosures where full-height cards cannot be accommodated.
What environmental certifications does this product have?
This StarTech.com network adapter carries EU RoHS (Restriction of Hazardous Substances) certification and complies with RoHS 2, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), and WEEE (Waste Electrical and Electronic Equipment Directive) environmental standards. These certifications ensure the product meets strict environmental regulations regarding hazardous substance restrictions and end-of-life disposal requirements.
